• DALS-PNL4-CC-WH-K12Dals Lighting PNL4-CC-K12 Kit of 12 - 4" Round LED Panel Selectable CCT, White
1 1

Dals Lighting

Dals Lighting PNL4-CC-K12 Kit of 12 - 4" Round LED Panel Selectable CCT, White

Dals Lighting PNL4-CC-K12 Kit of 12 - 4" Round LED Panel Selectable CCT, White

$175.78
$175.78
Sale Sold out
Shipping calculated at checkout.

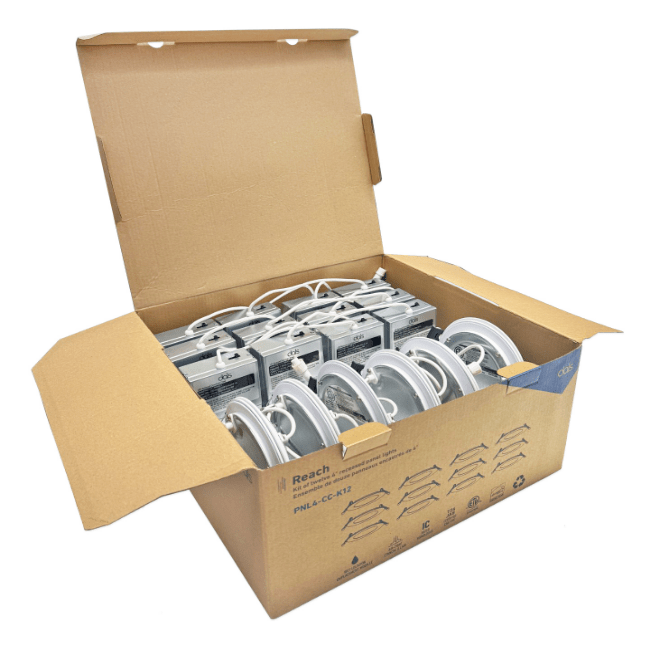

Kit of 12 - 4" Round LED Panel Selectable CCT

The DALS PNL4-CC-K12 is a 4" round edge-lit LED panel from the Reach series. It delivers 740 lumens at 9W with switch-selectable color temperature. This is a kit of 12 fixtures. Very low profile, with an integrated driver and a junction box in every fixture. Wet location rated for indoor or outdoor use.

  • 9W, 740 delivered lumens at 3000K, CRI 90
  • Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
  • 110° beam angle, frosted lens
  • Triac dimming, 120V input
  • Wet location, IP54, indoor/outdoor, -10 to 40 °C
  • Aluminum housing, can be daisy chained
  • 5-year warranty
  • Kit of 12 fixtures
Spec Sheets

Spec Sheet

Catalog Sheet

Info
Product Type LED Panel Light
Wattage 9
Lumen 740
Color Temp. 2700K/3000K/3500K/4000K/5000K
CRI 90
Beam Angle 110°
Dimming Triac
L70 Lifespan >50,000 hours
Finish White
Construction Aluminum housing
Lens Polystyrene, Frosted
Additional Info
Compliance
Certifications ETL, FCC, ICES, Title 24-JA8, Energy Star, IC rated, ASTM E283-04, IEC 60068-2-11 (480h)
Location Wet location, IP54
Warranty 5-year limited
Electrical
Input Voltage 120 V
Power Factor 90%
Driver Constant current
Operating Temp. -10 to 40 °C
