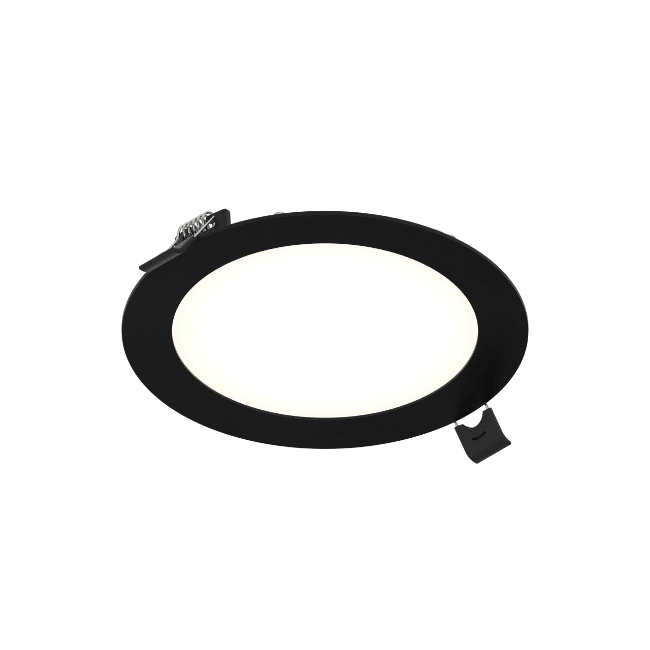

• DALS-PNL6-CC-BKDals Lighting PNL6-CC 6" Round LED Panel Selectable CCT
1 1

Dals Lighting

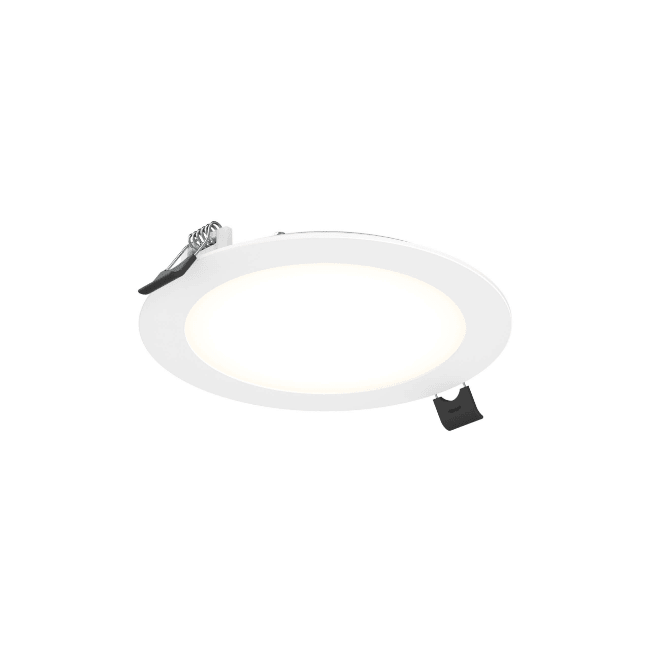

Dals Lighting PNL6-CC 6" Round LED Panel Selectable CCT

Dals Lighting PNL6-CC 6" Round LED Panel Selectable CCT

$19.42
$19.42
Sale Sold out
Shipping calculated at checkout.
Finish

6" Round LED Panel Selectable CCT

The DALS PNL6-CC is a 6" round edge-lit LED panel from the Reach series. It delivers 990 lumens at 12W with switch-selectable color temperature. Very low profile, with an integrated driver and a junction box in every fixture. Wet location rated for indoor or outdoor use.

  • 12W, 990 delivered lumens at 3000K, CRI 90
  • Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
  • 110° beam angle, frosted lens
  • Triac dimming, 120V input
  • Wet location, IP54, indoor/outdoor, -10 to 40 °C
  • Aluminum housing, can be daisy chained
  • 5-year warranty
Dimensions
Cutout (In.) 6-1/4"

Spec Sheets

Spec Sheet

Catalog Sheet

Info
Product Type LED Panel Light
Wattage 12
Lumen 990
Color Temp. 2700K/3000K/3500K/4000K/5000K
CRI 90
Beam Angle 110°
Dimming Triac
L70 Lifespan >50,000 hours
Finish White or Black
Construction Aluminum housing
Lens Polystyrene, Frosted
Additional Info
Compliance
Certifications ETL, FCC, ICES, Title 24-JA8, Energy Star, IC rated, ASTM E283-04, IEC 60068-2-11 (480h)
Location Wet location, IP54
Warranty 5-year limited
Electrical
Input Voltage 120 V
Power Factor 90%
Driver Constant current
Operating Temp. -10 to 40 °C
View full details
