Diode LED 12mm Tape Light Terminal Block Connectors

Diode LED 12mm Tape Light Terminal Block Connectors

Regular price $7.99
Regular price Sale price $7.99
Sale Sold out
Shipping calculated at checkout.
Type
Pack Size
Quantity

12mm Tape Light Terminal Block Connectors

Solderless screw-down connectors for 12mm Diode LED tape light. Pick the connection type and pack size. Cut tape to the marked cut points and tighten the terminal screws to secure the tape.

  • Screw-down terminal block for 12mm wide Diode LED tape light

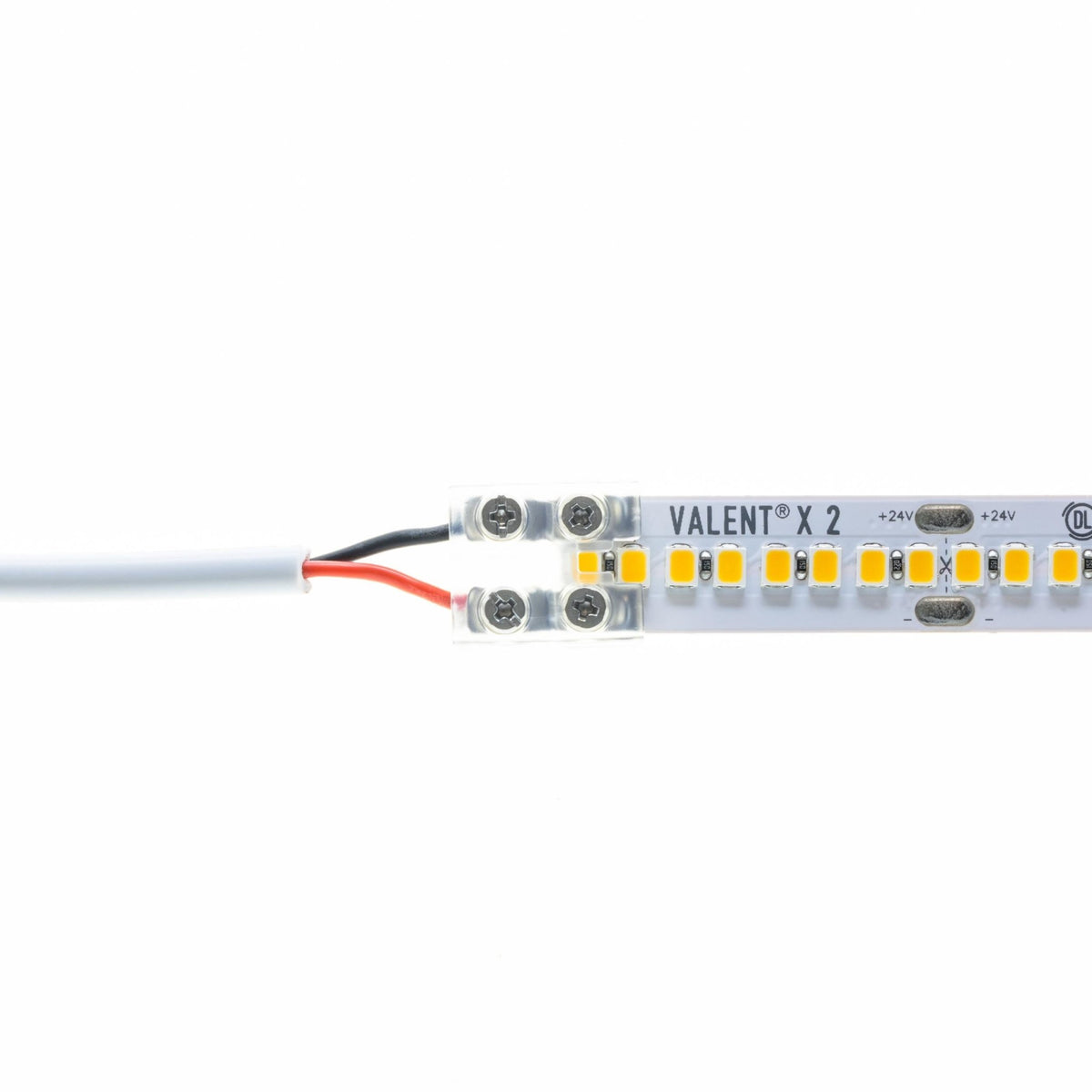

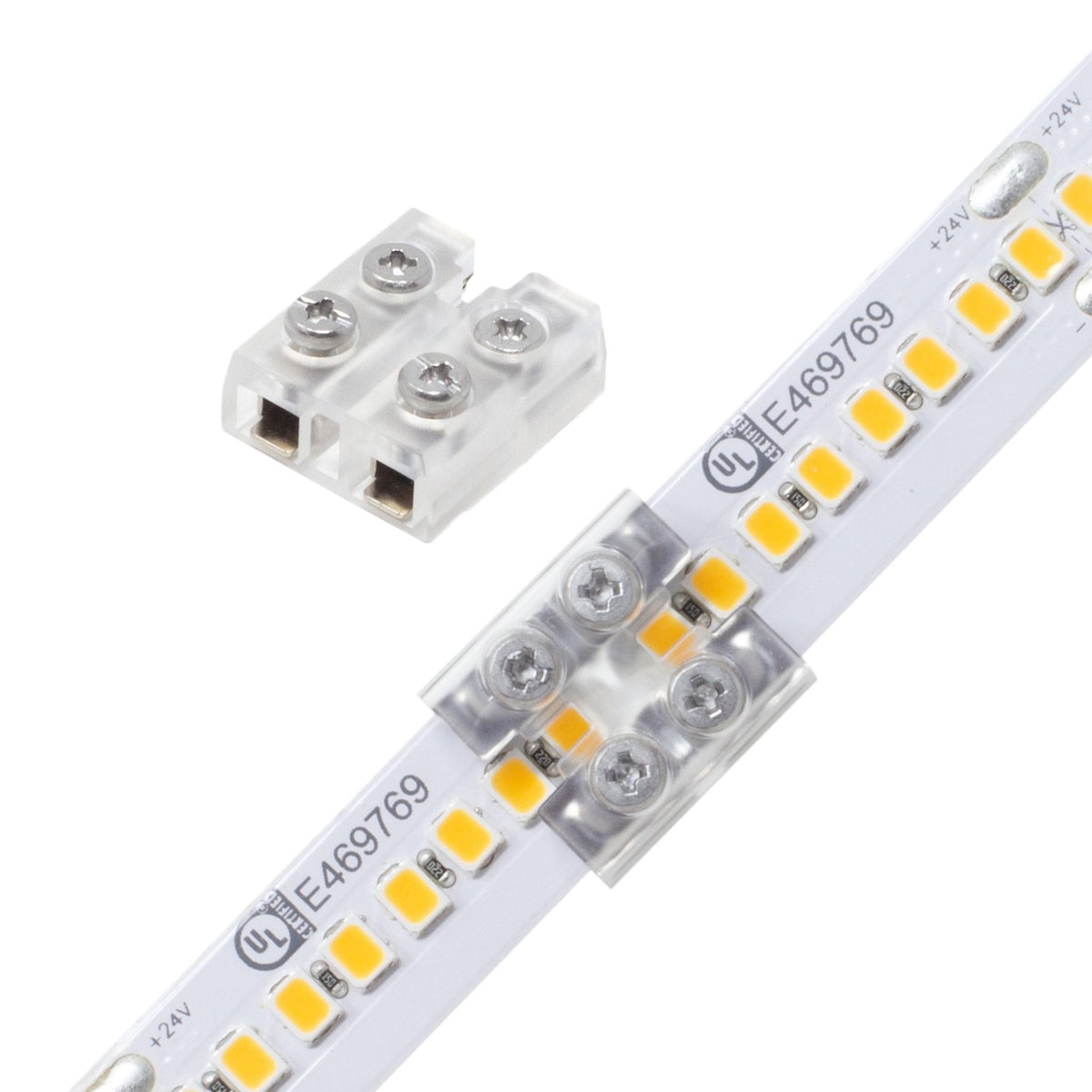

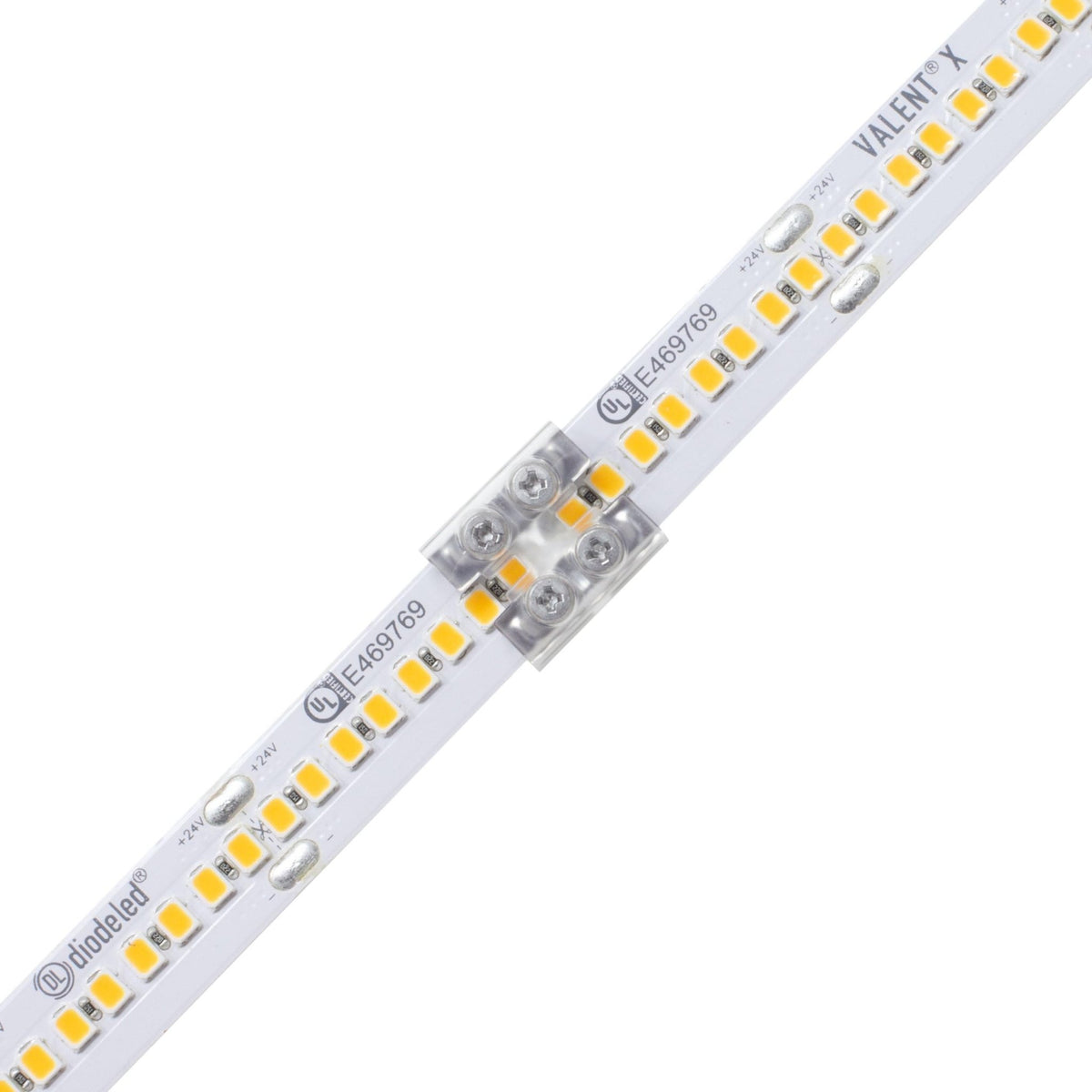

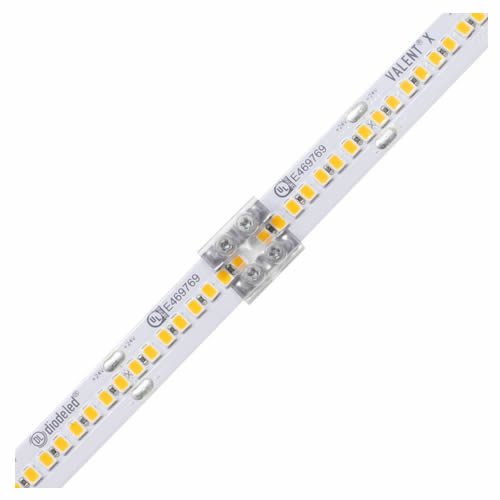

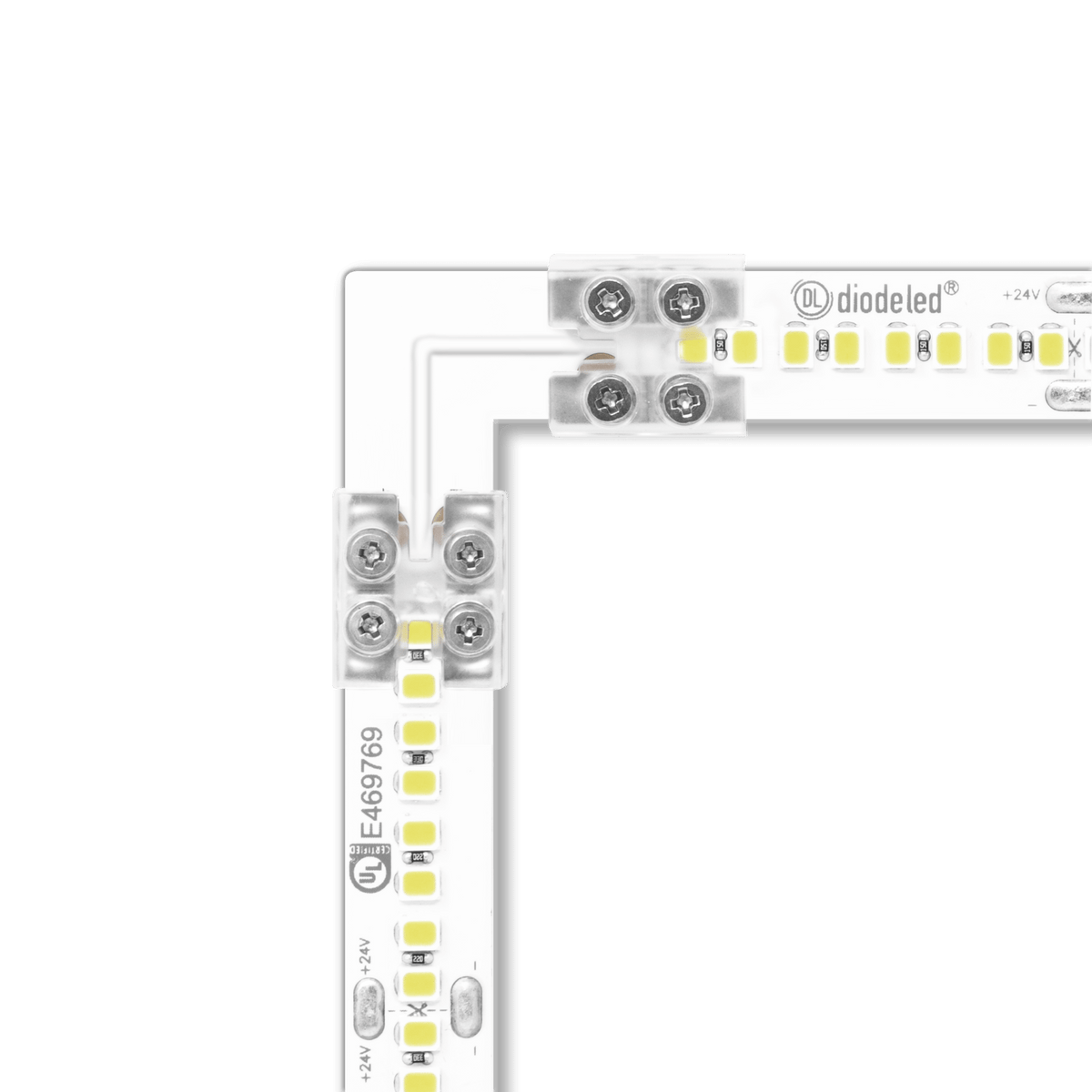

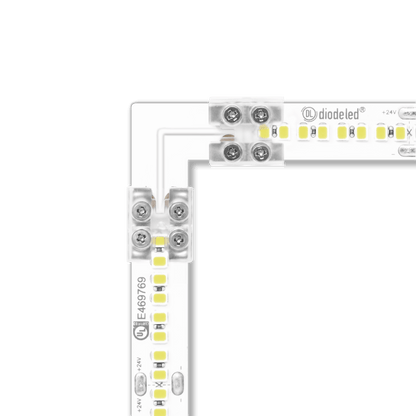

  • Connect tape-to-wire, tape-to-tape, or turn a 90 degree corner

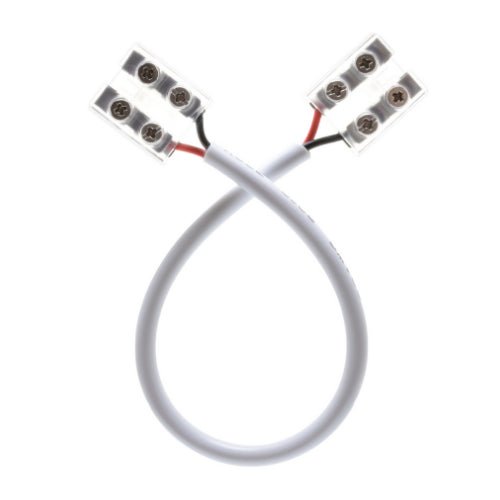

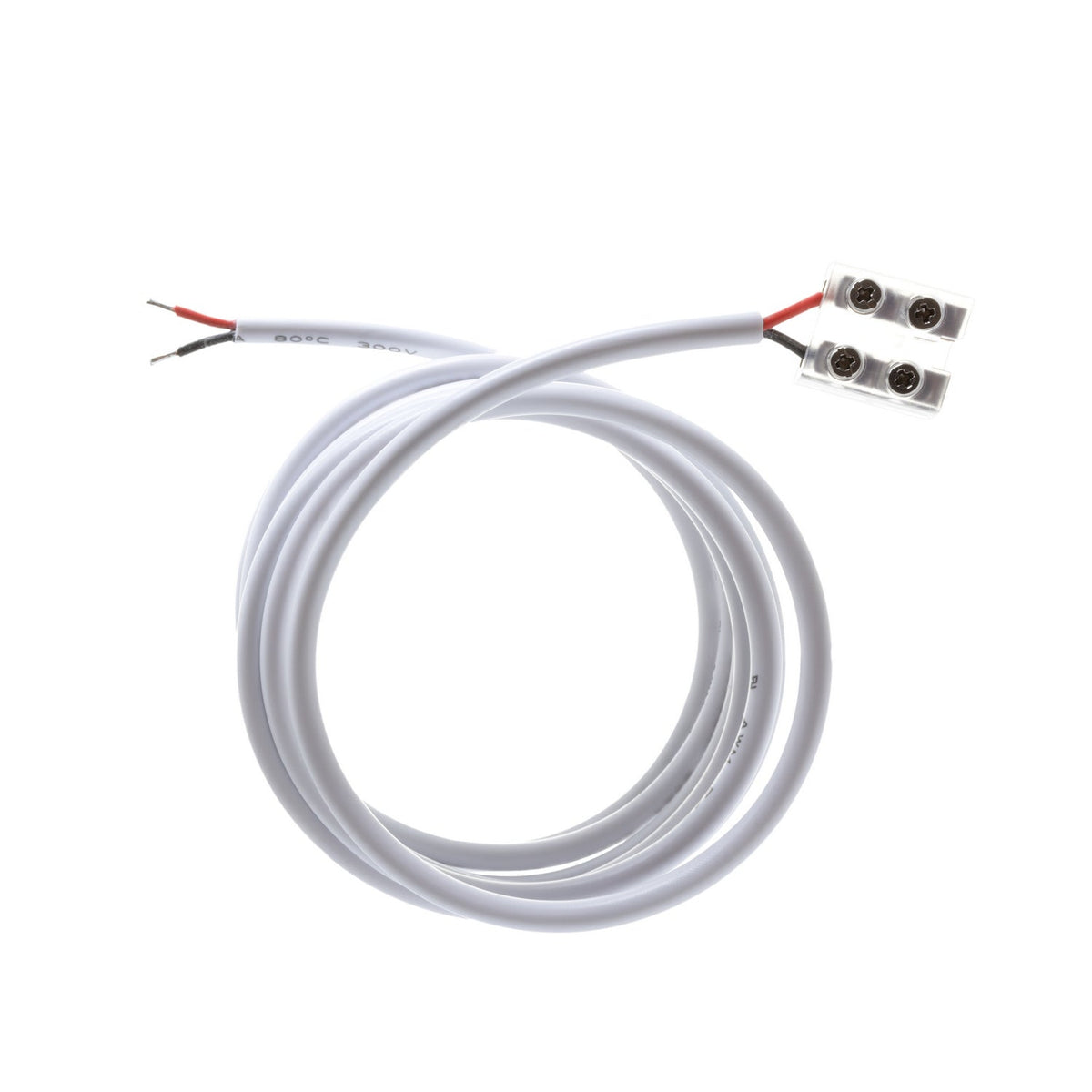

  • Lead wire and jumper cable versions available (6" and 60" jumpers, 60" lead wire)
  • Clear casing for nearly seamless light with no dark spots
  • Fits inside most Diode LED channels
  • 5 Year Limited Warranty
Spec Sheets

Spec Sheet

Installation Instructions

Info
Tape width 12mm
Types Tape-to-wire, tape-to-tape, 90 degree corner, lead wire, jumper cables
Voltage 12 - 24VDC
Max amperage 12V: 5A / 24V: 4A
Wire gauge 16 AWG - 20 AWG
Included 3M adhesive tape
Environment Indoor
Ambient temperature -4 to 122°F (-20 to 50°C)
Warranty 5 Year
