Diode LED 8mm Tape Light Terminal Block Connectors
Diode LED 8mm Tape Light Terminal Block Connectors
Regular price
$7.99
Regular price
Sale price
$7.99
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
8mm Tape Light Terminal Block Connectors
Solderless screw-down connectors for 8mm Diode LED tape light. Pick the connection type and pack size. Cut tape to the marked cut points and tighten the terminal screws to secure the tape.
- Screw-down terminal block for 8mm wide Diode LED tape light

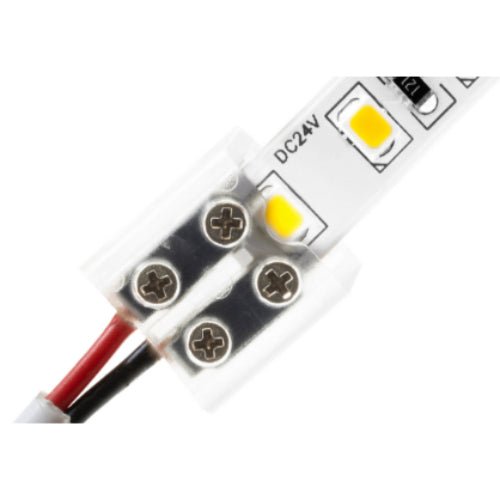

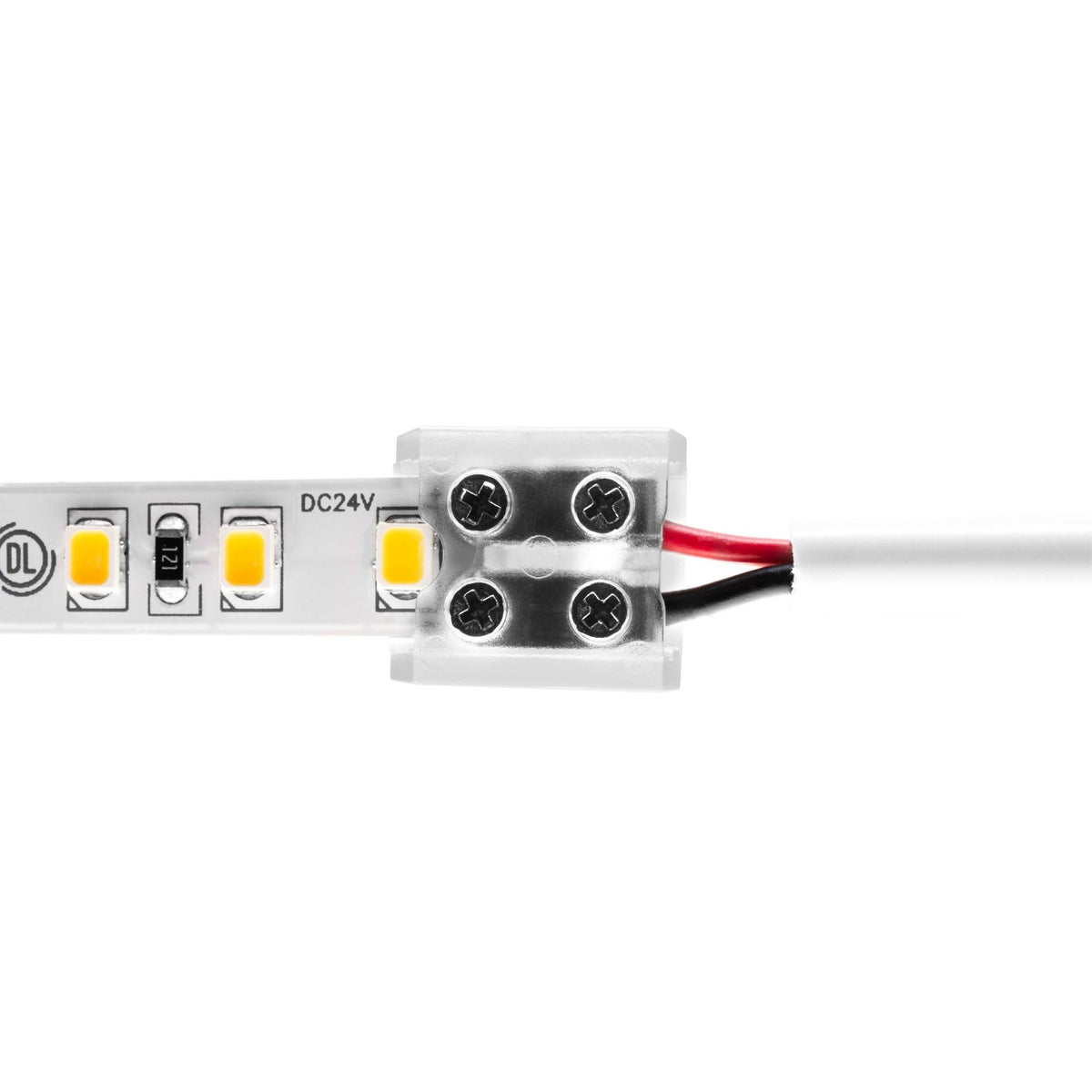

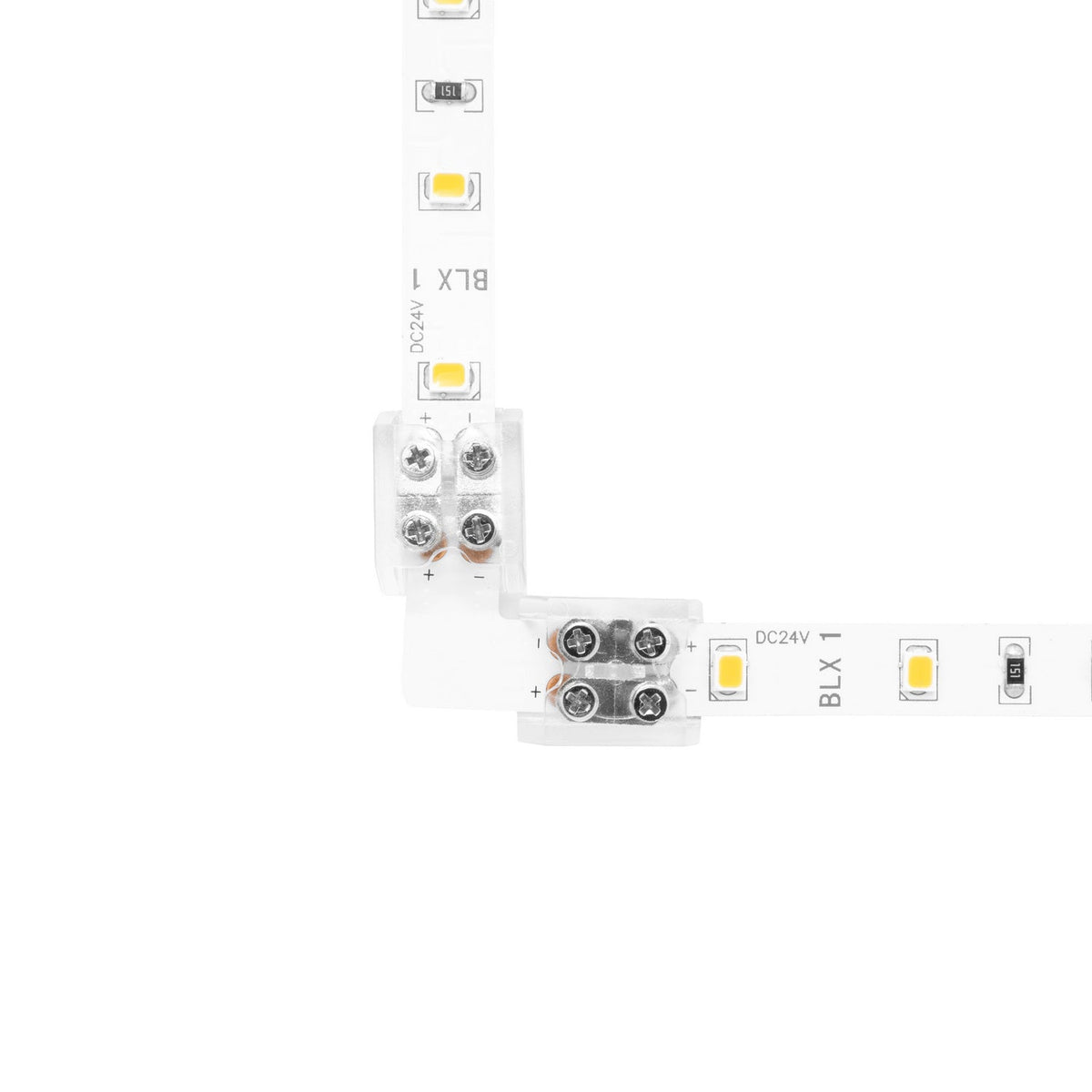

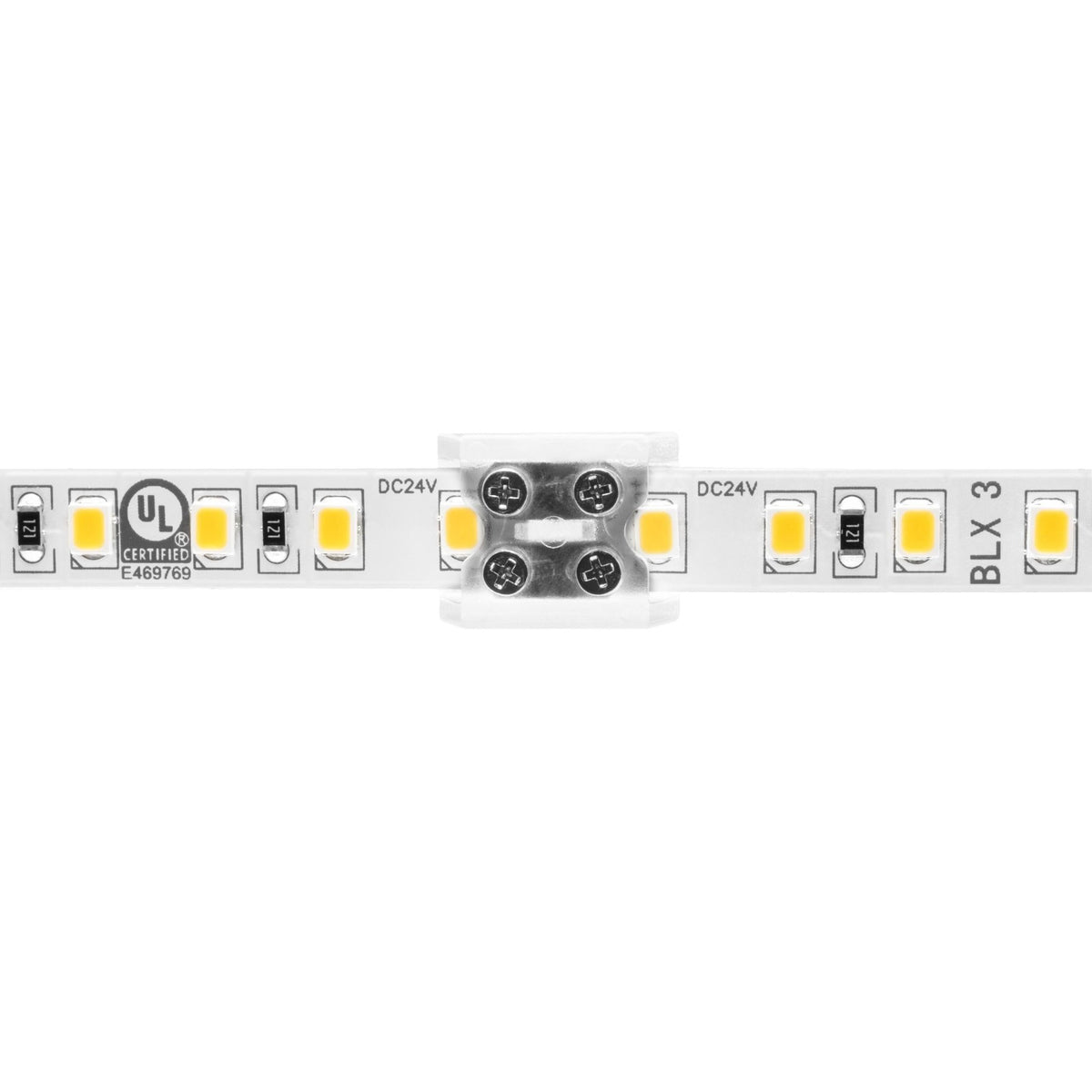

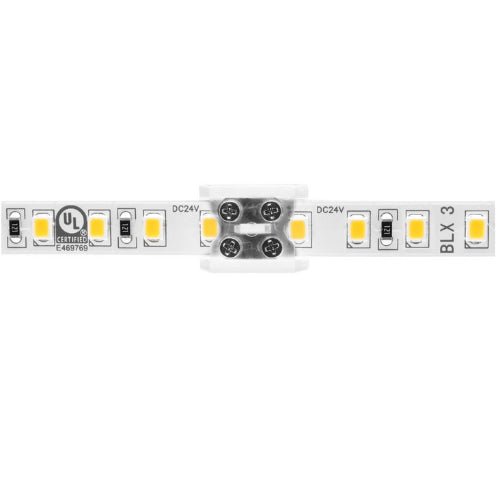

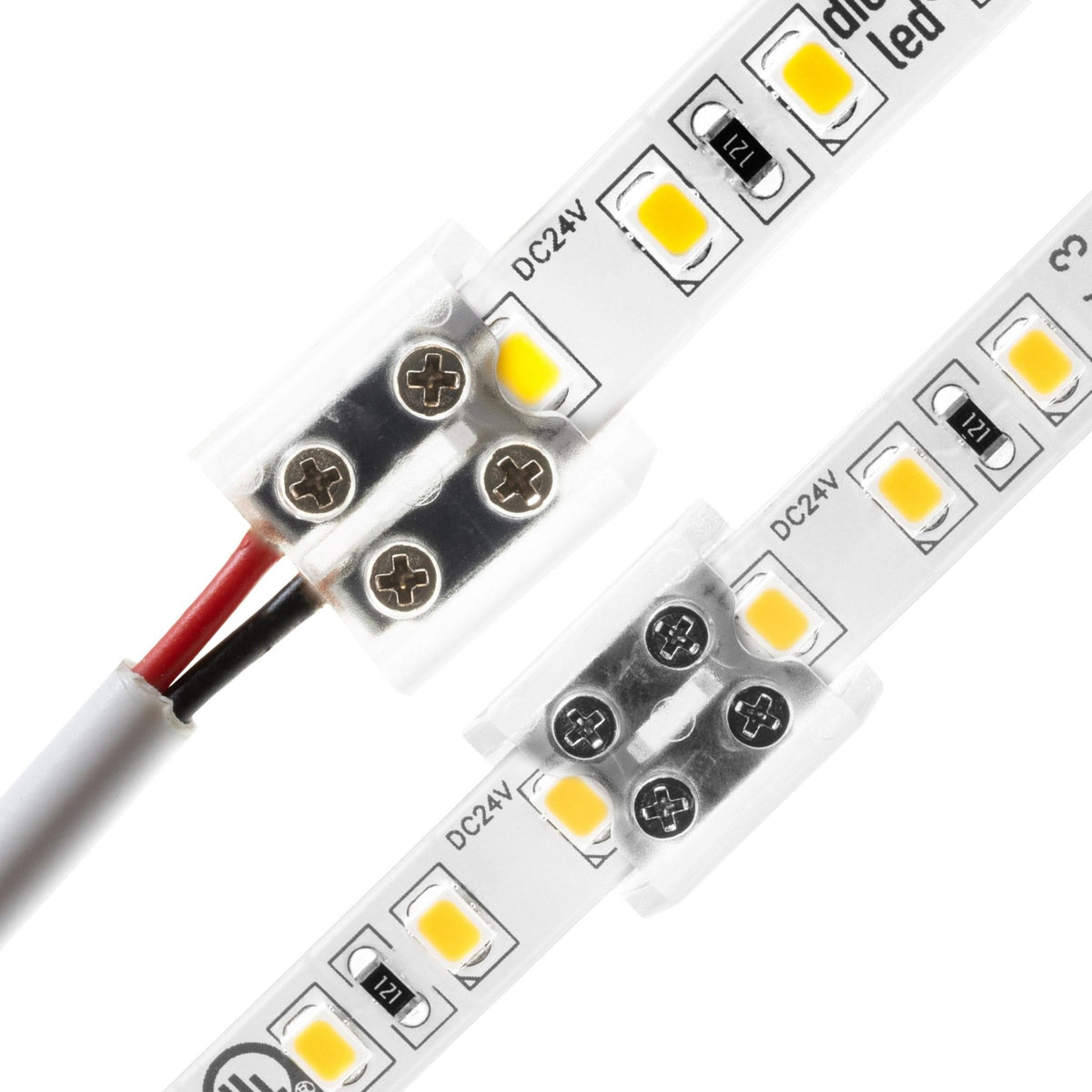

- Connect tape-to-wire, tape-to-tape, or turn a 90 degree corner

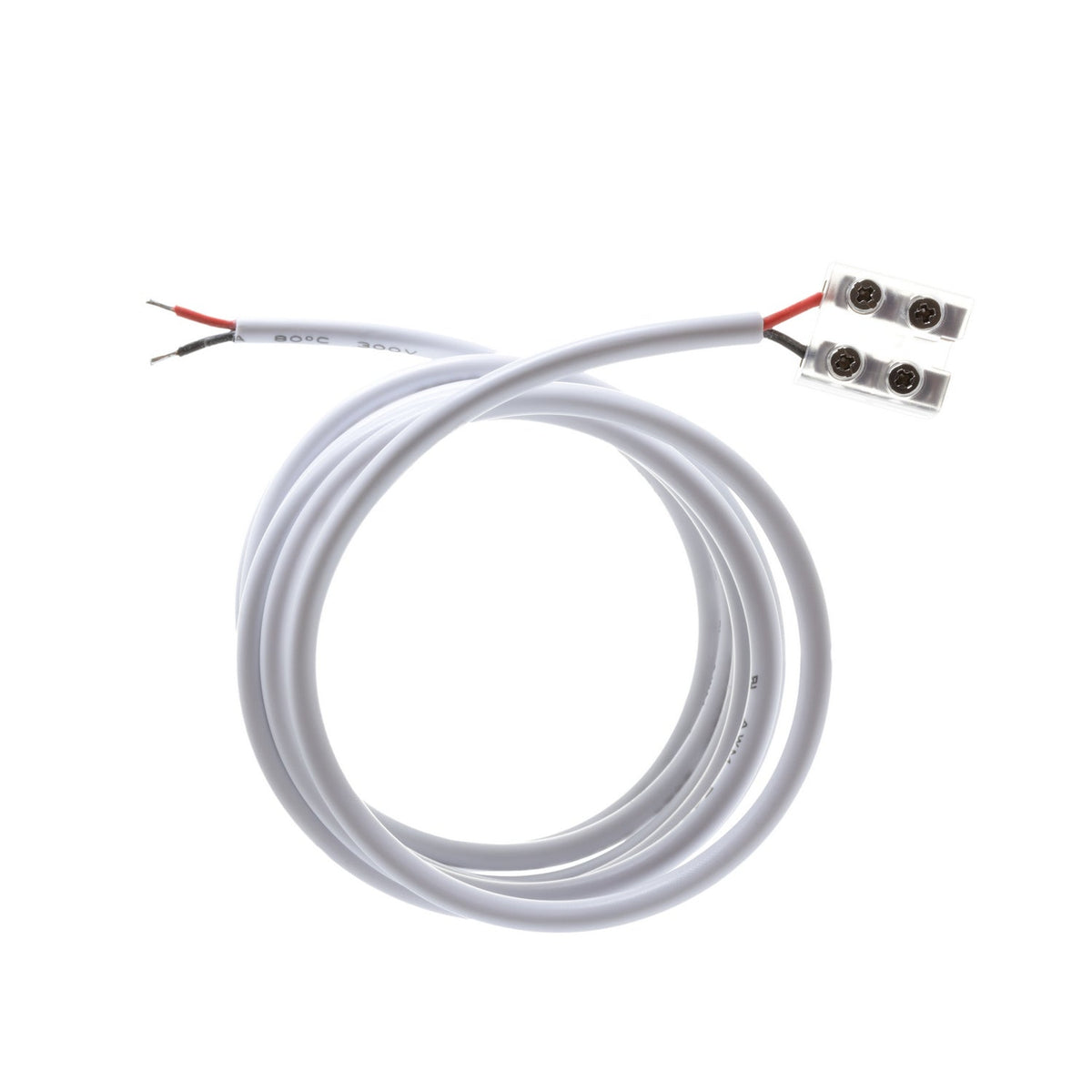

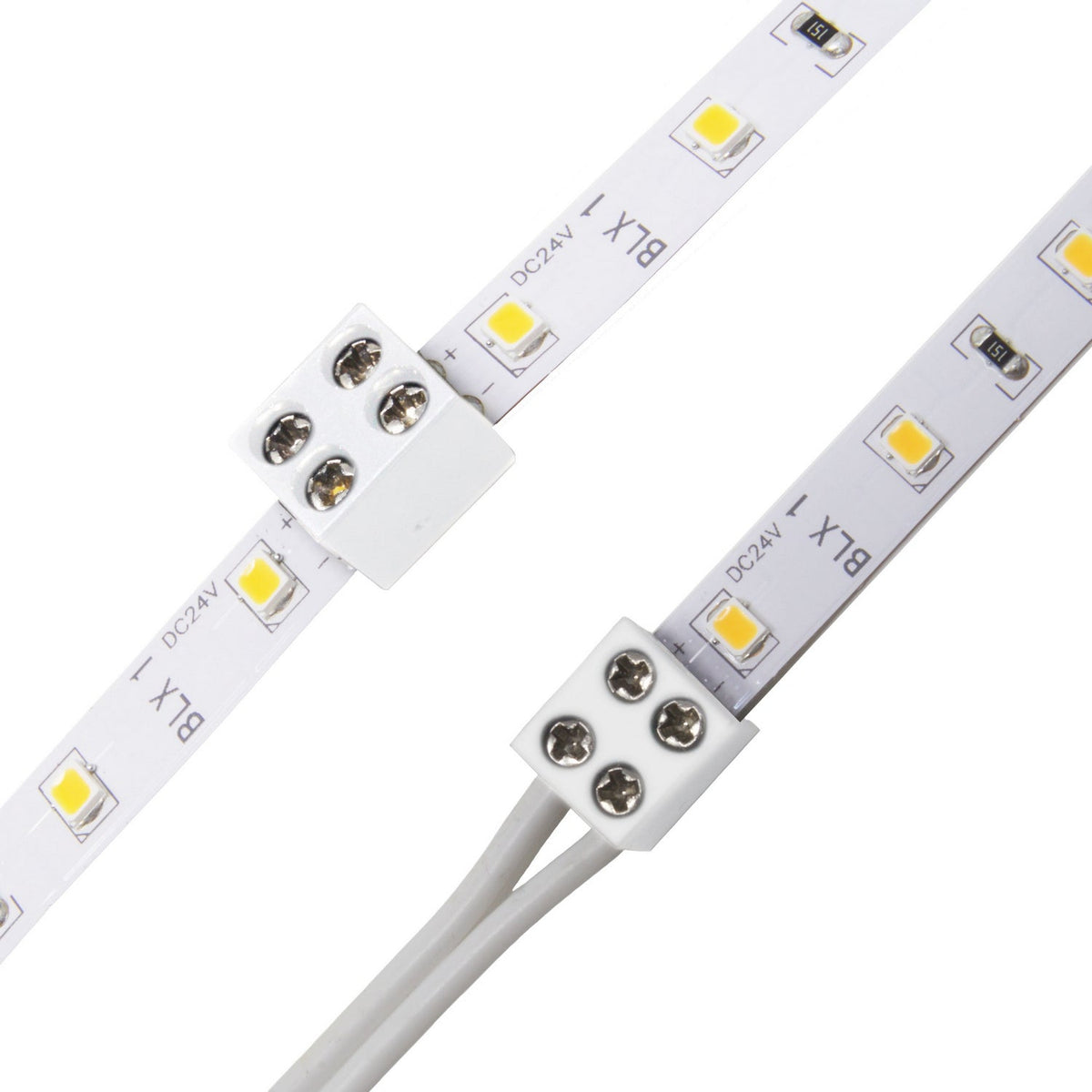

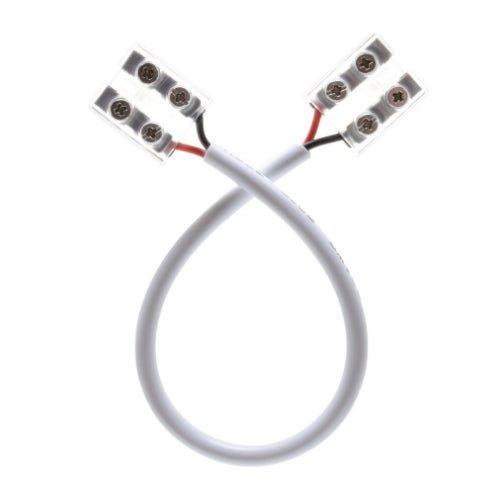

- Lead wire and jumper cable versions available (6" and 60" jumpers, 60" lead wire)
- Clear casing for nearly seamless light with no dark spots
- Fits inside most Diode LED channels
- 5 Year Limited Warranty
Spec Sheets
Spec Sheet
Installation Instructions
Info
| Tape width | 8mm |
|---|---|
| Types | Tape-to-wire, tape-to-tape, 90 degree corner, lead wire, jumper cables |
| Voltage | 12 - 24VDC |
| Max amperage | 12V: 5A / 24V: 4A |
| Wire gauge | 16 AWG - 20 AWG |
| Included | 3M adhesive tape |
| Environment | Indoor |
| Ambient temperature | -4 to 122°F (-20 to 50°C) |
| Warranty | 5 Year |
