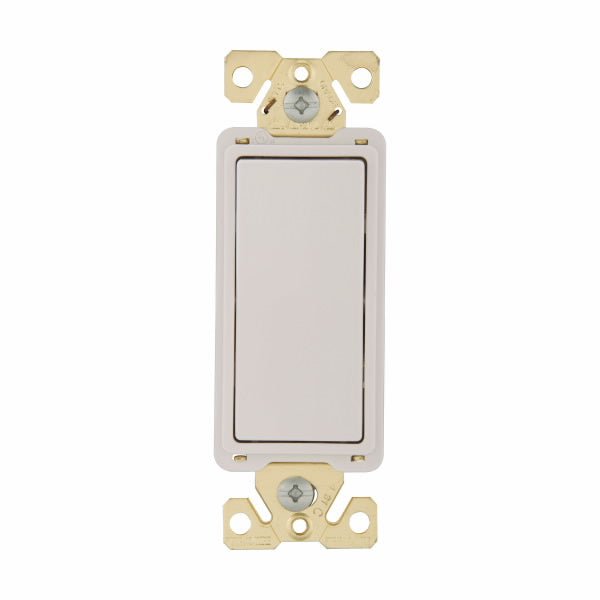

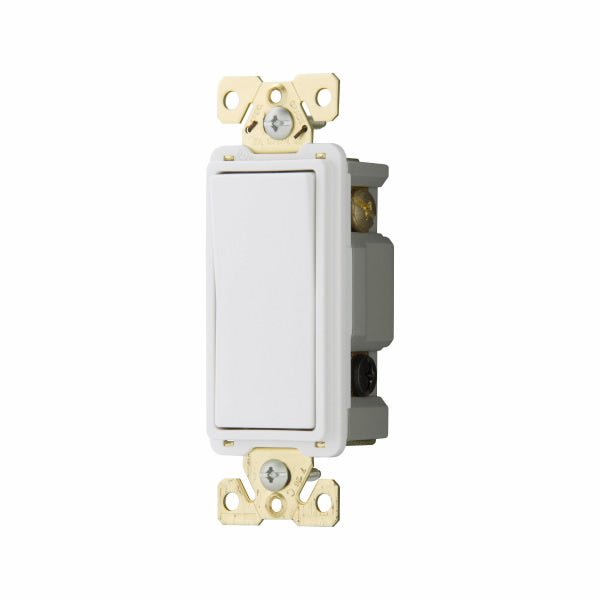

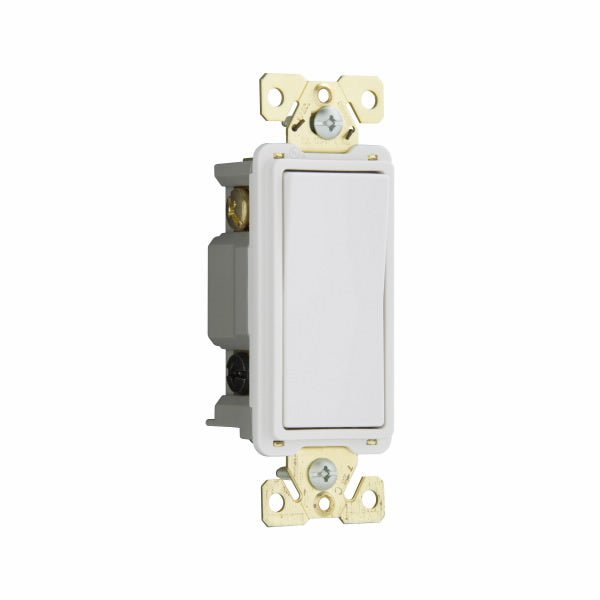

Eaton 7624W Four Way Decorator Switch 20 AMP Anti Microbial
Eaton 7624W Four Way Decorator Switch 20 AMP Anti Microbial
Regular price
$15.99
Regular price
$16.99
Sale price
$15.99
Unit price
/
per
Four Way Decorator Switch 20 AMP
Eaton commercial grade decorator switch, Box, #14-10 AWG, 20A, Flush, 120/277V, Back/push, Antimicrobial paddle, Maintained, White, Motor Control, Fan, LED, Incandescent, ELV,MLV,CFL, Florescent, Halogen, four-way, Thermoplastic
- Tapered back wire openings handle multiple wire sizes and types for applications up to #10 AWG solid or stranded wire
- One-piece wrap around auto-grounding strap for ground integrity in severe conditions
- Welded construction provides superior assembly security under heavy use
- Stippled line and ground contacts ensure solid contact; ground screw clamp provides secure wiring and reduces installation time
- Tarnish resistant with minimal color change over time
Length (in.) | 4.19" |
Width (in.) | 1.20" |
Depth (in.) | 1.29" |
Weight (lbs) Each | .28 lbs |
Spec Sheet
Spec Sheet
Info
Type | Decorator Switch |
Connector Type |
Screw
|
Switch Type |
Four way
|
Compliance |
RoHS Compliant
|
Certifications | cULus Listed |
Color | White |
Material | Polycarbonate |
Additional Info
Load Type | Motor Control, HAL, LED, CFL, MLV, ELV, INC, Fan, FLR |
Wiring Method | Back and push |
Mounting | Flush |
Wire Size | #14-10 AWG |
VolTAGE | 120V |
Amp. Rating | 20 A |
Use | Residential |
Actuator |
Antimicrobial paddle |
