Eaton

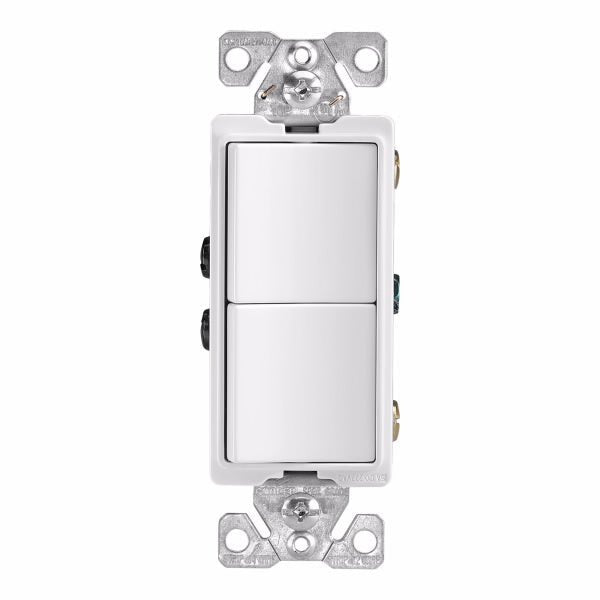

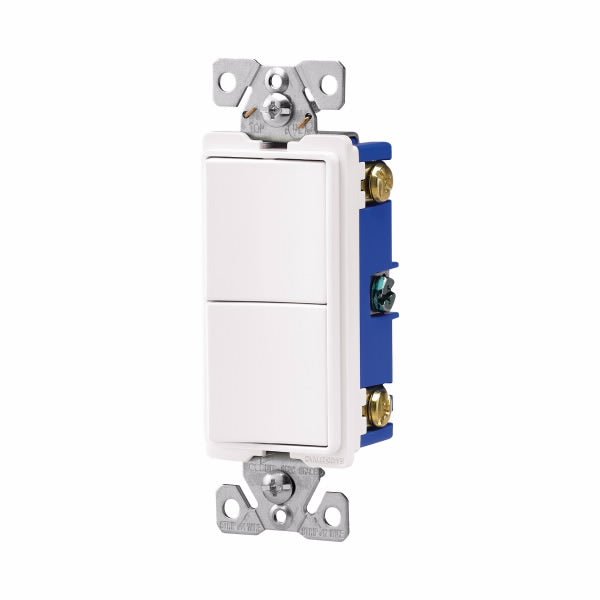

Eaton 7728W Duplex Combination Decorator Switch

Eaton 7728W Duplex Combination Decorator Switch

Regular price $14.99
Regular price $15.99 Sale price $14.99
Sale Sold out
Shipping calculated at checkout.
Count

Duplex Combo Decorator Switch Over Switch

Eaton commercial grade combination switch, auto-ground, Decorator, #14 - #12 AWG, 15A, residential, comm, 120/277V, back and side wiring, Rocker, Maintain closure, Screw, Brass, white, -20°-60°C, (2) 1-pole, duplex, thermoplastic, polycarbonate, PVC

  • 120/277V/AC rating is ideal for incandescent or fluorescent lighting fixtures
  • Thermoplastic rocker, top and back body are virtually unbreakable to deliver years of durable performance
  • Ultrasonic welding and integrated construction of the strap and body provide superior ground integrity even under heavy use
  • Durable, injection molded housings and PVC resin comply with UL94 V0 flammability ratings
  • Automatic grounding system eliminates the need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where a jumper is used
  • Steel mounting strap is zinc-plated for added corrosion resistance
  • Back wire clamps on side terminals provide for easy installation of #12 and #14 wire
  • Terminal screws are backed out and ready for wiring to enhance ease of installation
  • Break-off provision on switches for wiring both devices on the same circuit or on separate circuits
Length (in.) 4.19"
Width (in.) 1.08"
Depth (in.) 1.30"
Weight (lbs) Each .23 lbs
Spec Sheet

Spec Sheet

Info
Type Combo Decorator Switch
Connector Type
Screw
Switch Type
(2) single-pole
Configuration
(2) decorator
Compliance RoHS Compliant
Certifications cULus Listed
Color White
Material Polycarbonate PVC Thermoplastic

Additional Info
Load Type Motor Control, HAL, LED, CFL, MLV, ELV, INC, Fan, FLR
Wiring Method Back and Side
Mounting Flush
Wire Size #14-10 AWG
Voltage/Rating 120V/277 V
Number of Poles
Single-pole
Amp. Rating 15 A
Use Residential, Commercial
Actuator
Rocker
