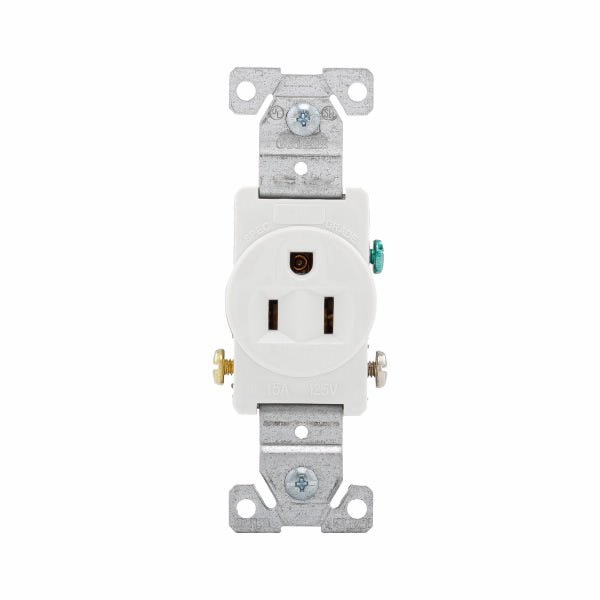

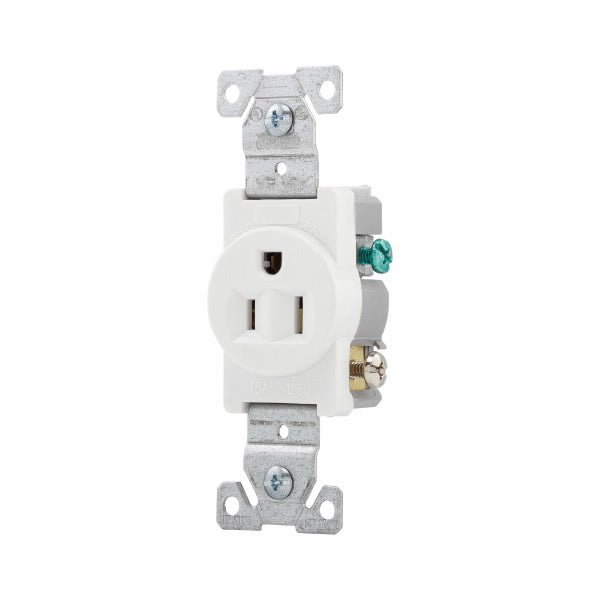

Eaton 817W Spec Grade Single Receptacle Outlet
Eaton 817W Spec Grade Single Receptacle Outlet
Regular price
$4.19
Regular price
$4.59
Sale price
$4.19
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Spec Grade Single Receptacle
Eaton commercial specification grade single receptacle, #14-10 AWG, 15A, Commercial, Flush, 125V, Side wire, White, Brass, Nylon, 5-15R, Single, Screw, PVC, ED Box
- Galvanized steel, wrap-around yoke mounting strap for superior assembly security; extra length/width helps reach large panel cutouts for Code Compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper used
- Screw-Catch feature on duplex devices speeds mounting of wall plates
- Tamper Resistant receptacles provide compliance with 2014 NEC® Article 406.12 that states that all 15A & 20A, 125V receptacles installed in dwelling units must be tamper resistant
| Length (in.) | 1.31" |
| Width (in.) | 3.28" |
| Depth (in.) | 0.83" |
| Weight (lbs) Each | .0.16 lbs |
Spec Sheet
Spec Sheet
Info
| Type | Spec Grade Single Receptacle |
| Connector Type |
Screw
|
| Certifications | cULus Listed |
| Color | White |
| Material | Thermoplastic, PVC body, Impact-resistant thermoplastic face |
Additional Info
| Wiring Method | Side Wire |
| Mounting | Flush |
| Wire Size | #14-10 AWG |
| Feature | Auto-grounding |
| Number of Poles | Two-Poles |
| NEMA Configuration | 5-15R |
| Voltage | 125V |
| Amp. Rating | 15 A |
| Use | Commercial |
| Torque Rating | 14 lbf-inch |
| Compliances |
|
