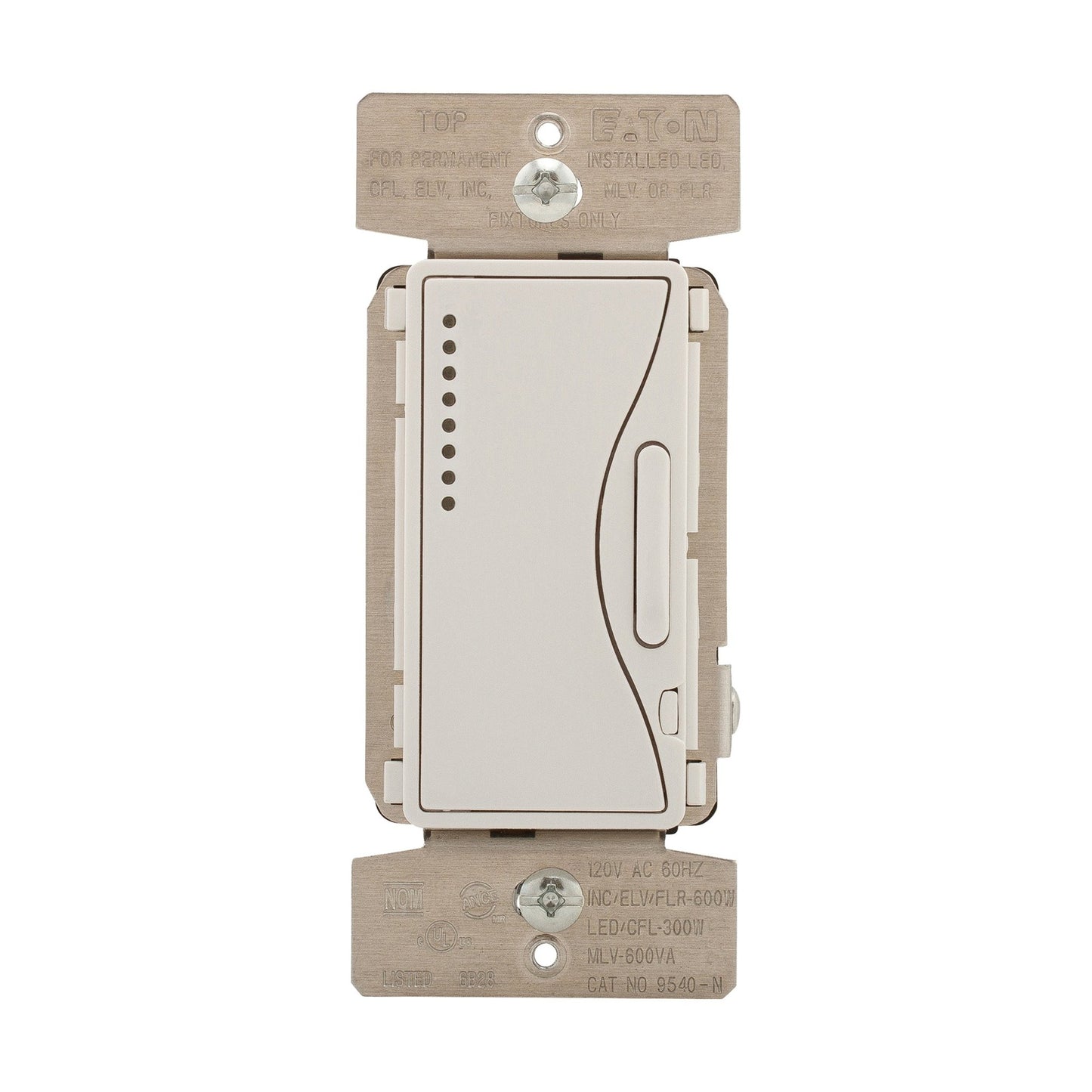

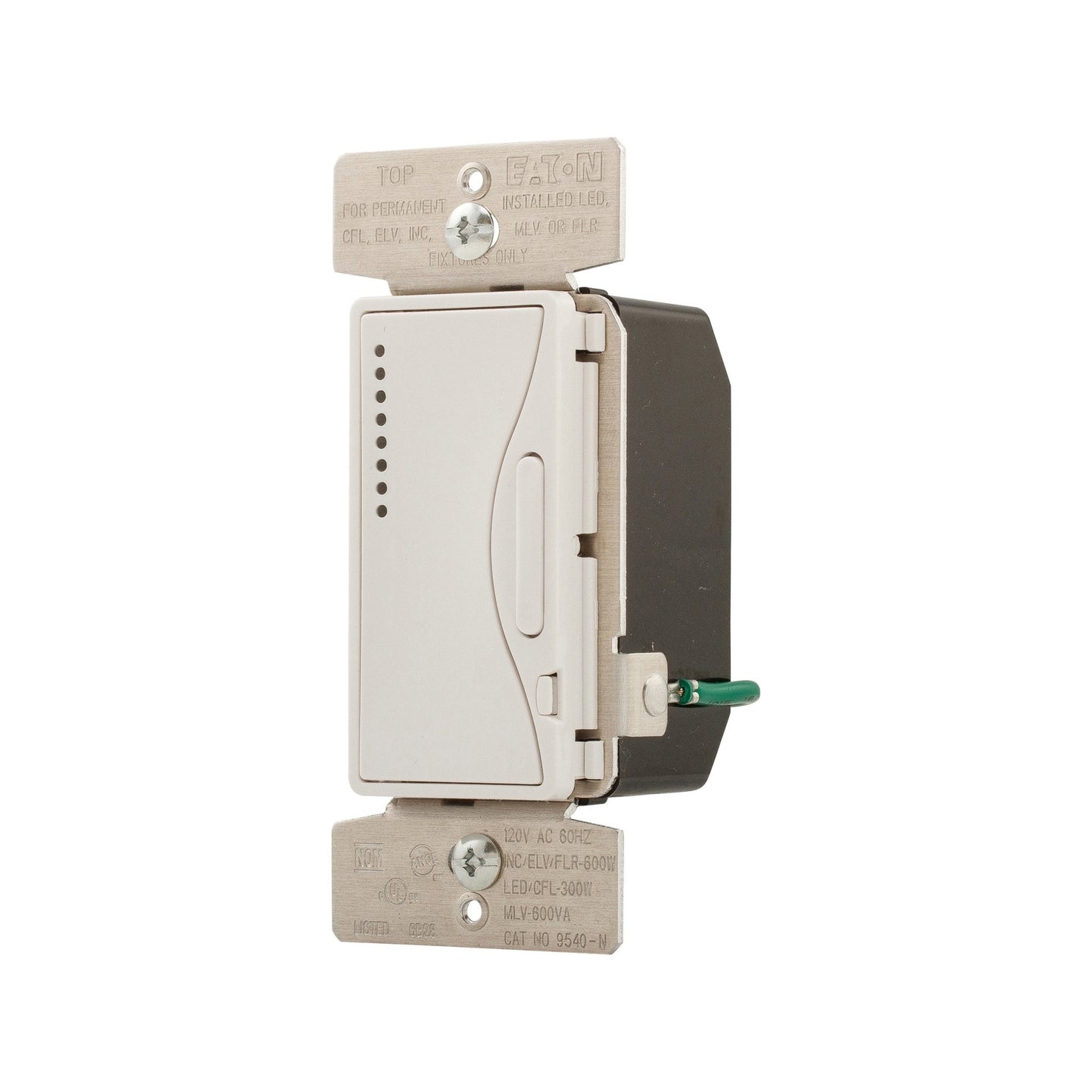

Eaton 9540-N Smart Master Dimmer

Eaton 9540-N Smart Master Dimmer

Regular price $35.99
Regular price $39.99 Sale price $35.99
Sale Sold out
Shipping calculated at checkout.

Smart Master Dimmer

Eaton smart dimmer, Flush mounting, 120V, Wire leads, Maintained closure, Alpine white, 60 Hz, Dimmable LED/CFL, incandescent/halogen/electronic and magnetic low voltage, Single-pole, multi-location, Polycarbonate, 300W, 600W

  • Adjustable low-level trim setting helps prevent flickering
  • Adjustable high-level trim setting for additional energy savings
  • Programmable rapid start feature ensures lamp start-up even at low dim levels
  • Seven step green LED display alongside push pad indicates selected light level and reduces brightness when OFF (location feature)
  • Electro-mechanical push pad for ON/OFF operation with separate DIM/BRIGHT bar
  • Preset feature allows user to return to previous light setting when turning lights ON
  • Light level may be adjusted with the dimmer state ON or OFF
  • 10 second delayed-OFF feature by pressing and holding push pad for 2 seconds when dimmer is ON
  • Pressing and holding push pad for 2 seconds when dimmer is off brings light to full brightness
  • Amber LED at bottom of LED display indicates ON/OFF load status
  • Master controls as many as 5 accessory units for multiple location installations
Length (in.) 4.29"
Width (in.) 2.28"
Depth (in.) 2.21"
Weight (lbs) Each .34 lbs
Spec Sheet

Spec Sheet

Type Smart Dimmer
Power Consumption
Switch Type Single-pole, multi-location
Compliance RoHS Compliant
Certifications cULus Listed
Color White
Material Polycarbonate

Additional Info
Load Type  CFL, ELV, INC, HAL, FLR, Dimmable LED
Wiring Method Wire lead
Mounting Flush
Closure Type
Voltage 120V
Amp. Rating 15 A
Use Residential
Push Pad
