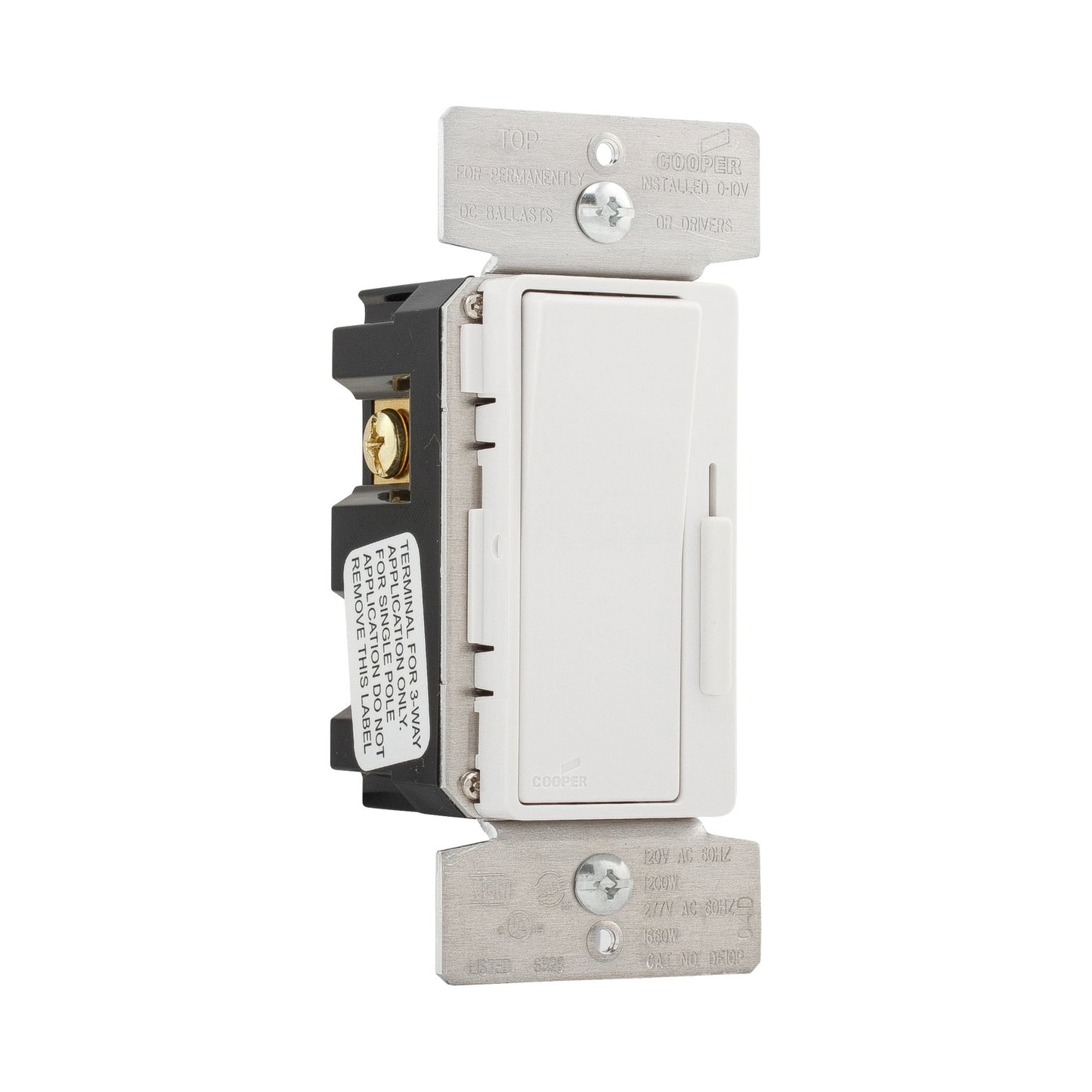

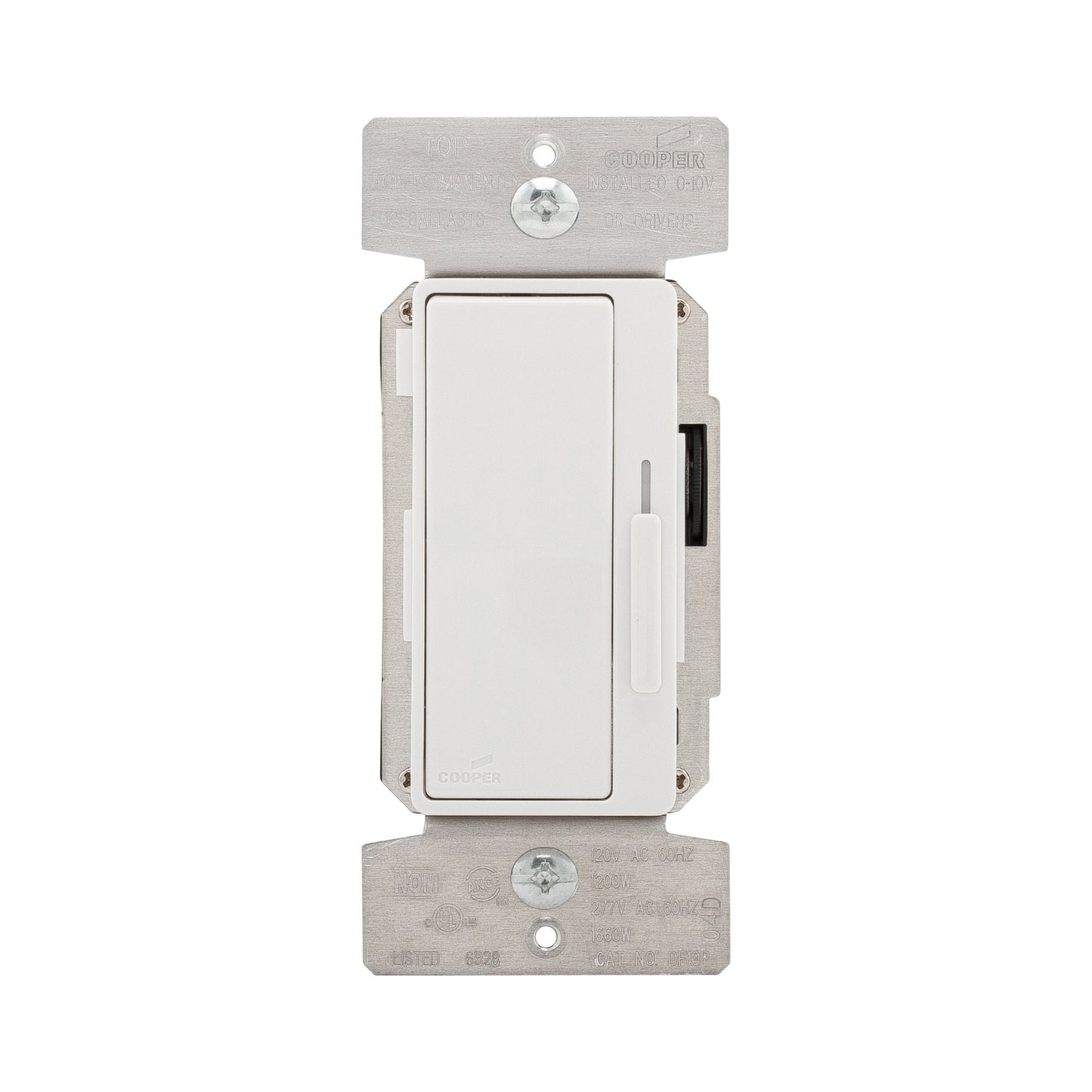

Eaton DF10P Decorator Dimmer

Eaton DF10P Decorator Dimmer

Regular price $59.99
Regular price $63.99 Sale price $59.99
Sale Sold out
Shipping calculated at checkout.

Smart Master Dimmer

Eaton’s Decorator 0-10V Dimmer provides full-range classic linear-slide dimming for 0-10 Volt compatible dimmable light sources. These units are ideal for residential and light commercial applications and are compatible with Eaton’s Decorator style devices and wallplates. Units feature a preset “ON/OFF” switch that automatically returns controlled light(s) to a preset level without disturbing the brightness level. The device is designed for both Single Pole (one location) and 3-Way (multi-location) applications. Not recommended for applications involving frequent use of ammonia based cleaners

Eaton decorator dimmer, Preset feature, #14 - 12 AWG, 120/277V, Bck and sd wiring, Slide actuator, Almond, ivory, wht, 1000 sq ft coverage illumination, LED, FLR, 1-pole, 3-way, 1200W, 1660W

  • Preset feature allows user to return to previous light level when turning lights ON
  • Integrated full-slide control for easy, precise operation
  • Can be wired as Single Pole or 3-Way
  • Neutral is not required for installation of device
  • Adjustable high-level trim setting for optimal lamp compatibility
  • Faceplate is removable to allow for color changes
  • Each package includes 3 colors
  • Electrostatic discharge protection
  • Compatible with any decorator wallplate or screwless decorator wallplate
  • Compatible with dimmable LED and Fluorescent 0-10 Volt ballasts
  • California Title 20 compliant
Length (in.) 4.20"
Width (in.) 1.80"
Depth (in.) 1.29"
Weight (lbs) Each .34 lbs
Spec Sheet

Spec Sheet

Type Decorator Dimmer
Power Consumption
Connection Type Screw terminal
Switch Type Single-pole, three-way
Compliance RoHS Compliant
Certifications cULus Listed
Color Almond, White, Ivory
Material Polycarbonate

Additional Info
Load Type FLR, LED
Wiring Method Back and side
Mounting Flush
Closure Type
Voltage 120/277V
Amp. Rating 15 A
Use Residential
Push Pad
