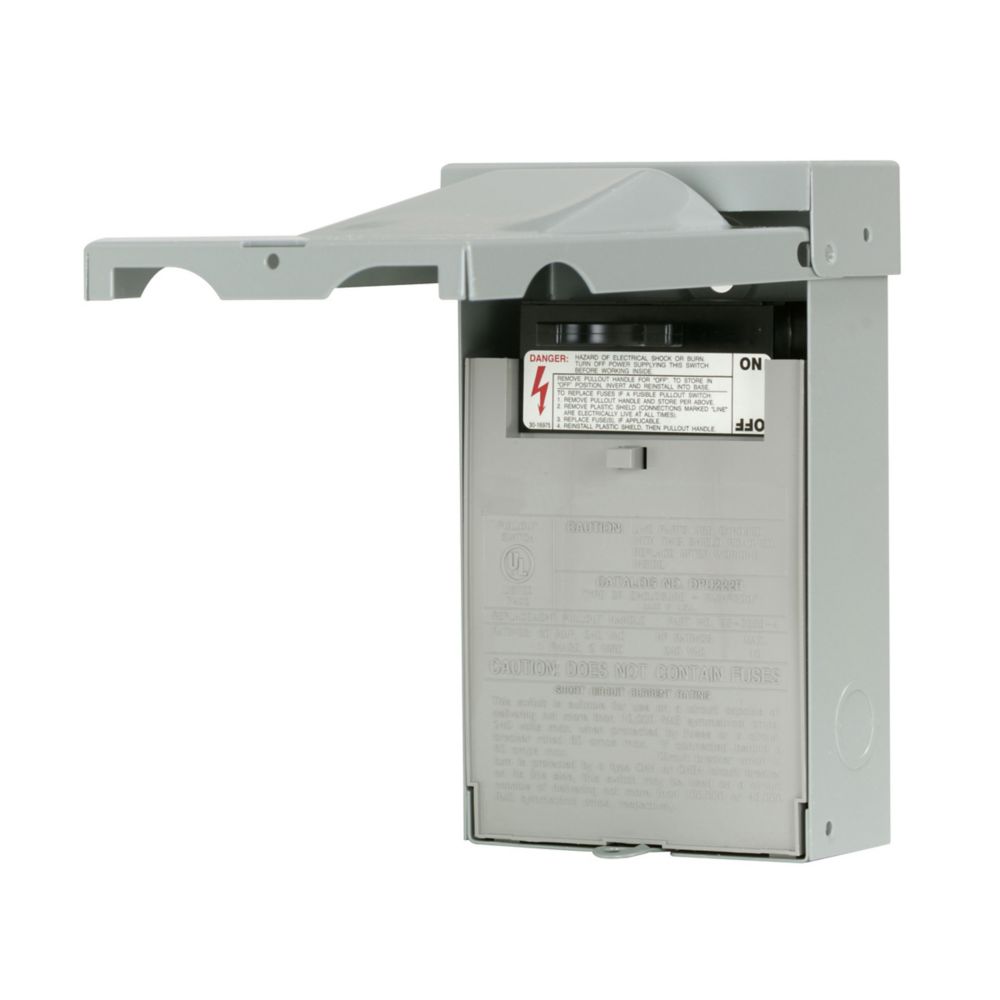

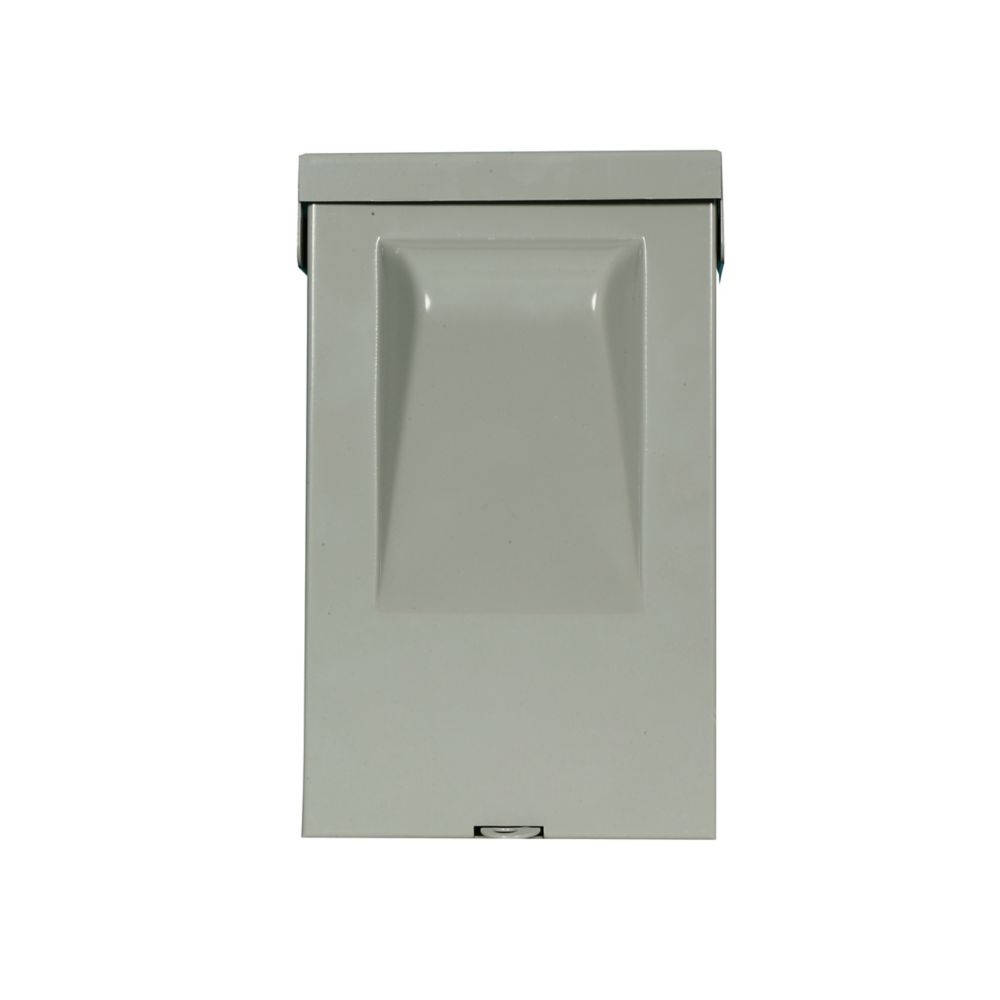

Eaton DPU222RP 60A Non Fused AC Disconnect
Eaton DPU222RP 60A Non Fused AC Disconnect
Regular price
$31.99
Regular price
Sale price
$31.99
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
60A Non Fused AC Disconnect
Eaton air conditioning disconnect, Non-fused pullout, 60A, 120/240V, 10 kAIC, #14-3 Cu/Al 60°C or 75°C, NEMA 3R Galvanized Steel enclosure, 3 hp at 120V, 10 hp at 240V, ANSI 61 gray
| Length (in.) | 8.9" |
| Height (in.) | 3.1" |
| Width (in.) | 5.4" |
Spec Sheet
Spec Sheet
Info
| Type | Non-fused pullout |
| Amperage Rating | 60A |
| Horsepower | 3 hp at 120 V, 10 hp at 240 V |
| Voltage Rating | 120/240 V |
| Wire Size | #14-3 AWG Cu/Al |
| Color | ANSI 61 gray |
| Enclosure |
NEMA 3R |
| Enclosure Material | Galvanized steel |
| Interrupt Rating | 10 kAIC |
