Eaton

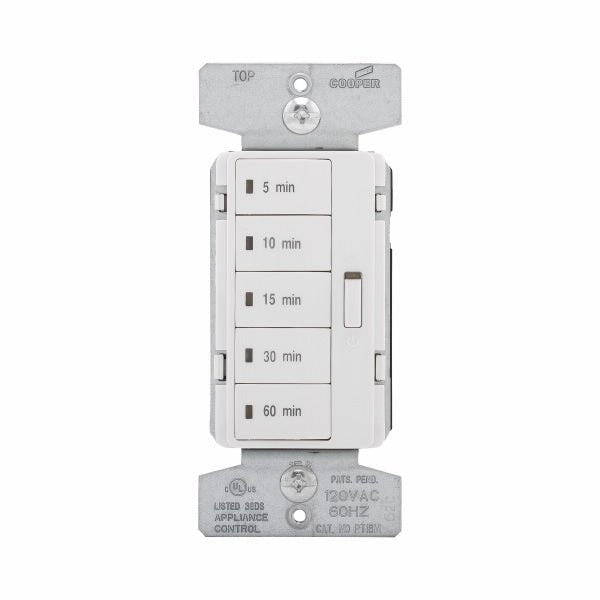

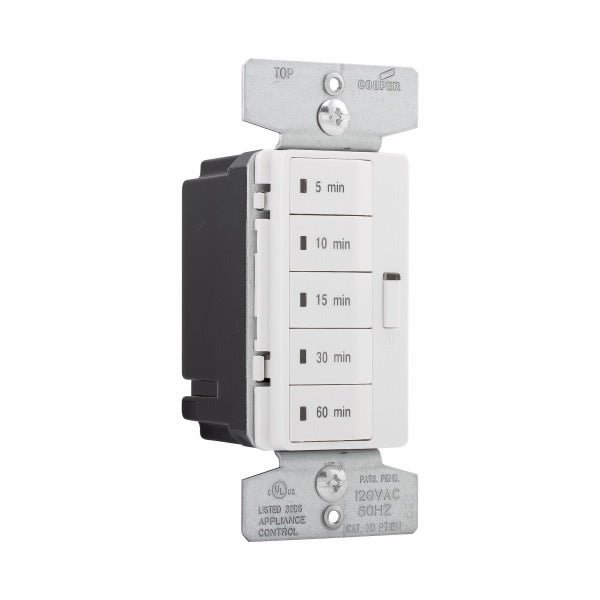

Eaton PT18M Accell Minute Timer
Eaton PT18M Accell Minute Timer
Regular price
$36.99
Regular price
$42.99
Sale price
$36.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Accell Minute Timer
Eaton Accell minute timer, 5, 10, 15, 30, and 60 minute default settings, 15A, 120V, Wire leads, Five button, White, Load type: Incandescent, halogen, MLV, ELV, fluorescent, CFL, LED, Single-pole, Polycarbonate, 1800W
- Automatically turns lights/fan ON/OFF after preset time
- Perfect for both new construction and retrofit with no neutral required for installation
- Available in both hours and minutes versions
- Five (5) preset time intervals
- Easily programmable to custom time intervals to suit your needs
- Works with all popular load types: incandescent/ halogen, magnetic low-voltage, electronic low-voltage, fluorescent, compact fluorescent, and LED
- Horsepower rated for 1/4 HP motor loads
- LED indication of time interval selected and countdown
- Manual override when timer functionality isn’t needed
Length (in.) | 3.81" |
Width (in.) | 1.39" |
Depth (in.) | 1.80" |
Weight (lbs) Each | .35 lbs |
Spec Sheet
Spec Sheet
Info
Type | Decorator Switch |
Special Features |
5, 10, 15, 30, and 60 minute default time settings
|
Switch Type |
Single-pole
|
Compliance |
RoHS Compliant
|
Certifications | cULus Listed |
Color | White |
Material | Polycarbonate |
Additional Info
Load Type | HAL, LED, CFL, MLV, ELV, INC, FLR |
Wiring Method | Wire leads |
Mounting | Flush |
Voltage | 120V |
Amp. Rating | 15 A |
