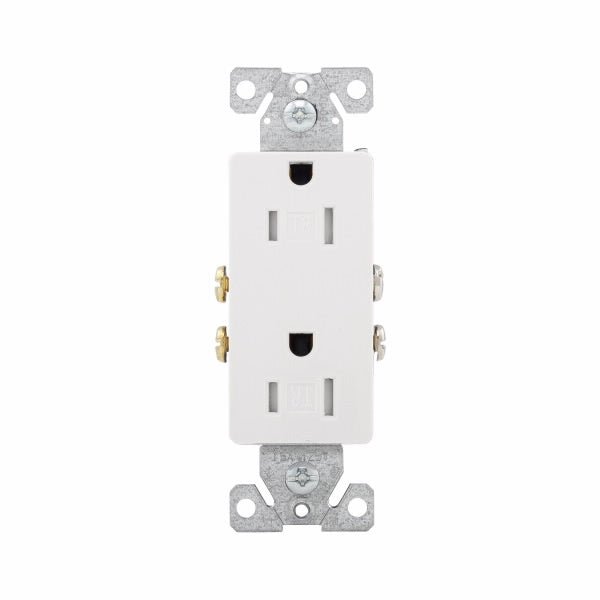

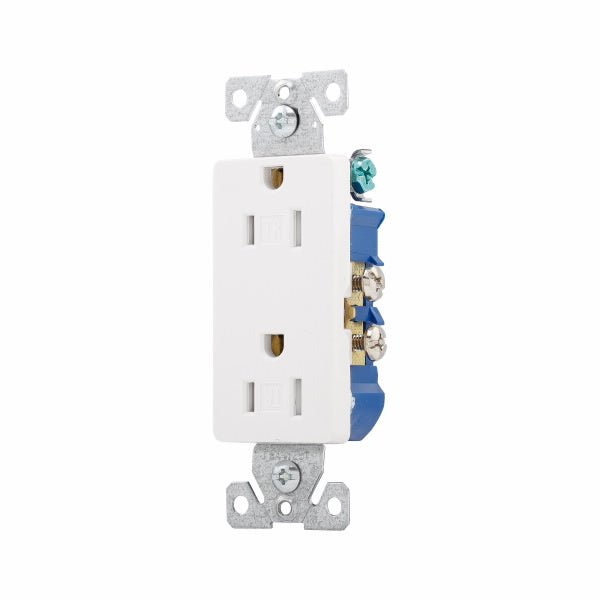

Eaton TR1107W Decorator Duplex Receptacle Outlet
Eaton TR1107W Decorator Duplex Receptacle Outlet
Regular price
$3.49
Regular price
$5.19
Sale price
$3.49
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Decorator Duplex Receptacle
Eaton residential grade decorator duplex receptacle, #14-10 AWG, 15A, Commercial, Residential, Flush,125V, Side and push, White,Brass, Impact-resistant thermoplastic face, PVC body ,5-15R, Duplex ,Screw, Thermoplastic
- Provides compliance with 2017 NEC Article 406.12
- Durable impact-resistant thermoplastic face and back body is virtually unbreakable
- Terminal screws are backed out and ready to wire
- Extra-long and extra-wide mounting straps
- Patented built-in wire stripper for #14 and #12 wire to speed installation
- Side-wire terminals accept up to #10 solid or stranded wire
- Push-in terminals accept #14 solid wire
| Length (in.) | 1.30" |
| Width (in.) | 3.81" |
| Depth (in.) | 0.69" |
| Weight (lbs) Each | .0.13 lbs |
Spec Sheet
Spec Sheet
Info
| Type | Duplex Decorator Receptacle |
| Connector Type |
Screw
|
| Certifications | cULus Listed |
| Color | White |
| Material | Thermoplastic, PVC body, Impact-resistant thermoplastic face |
Additional Info
| Wiring Method | Side and push |
| Mounting | Flush |
| Wire Size | #14-10 AWG |
| Number of Poles | Two-Pole |
| Voltage | 125V |
| Amp. Rating | 15 A |
| Use | Residential |
| Torque Rating | 14 lbf-inch |
| Compliances |
|
