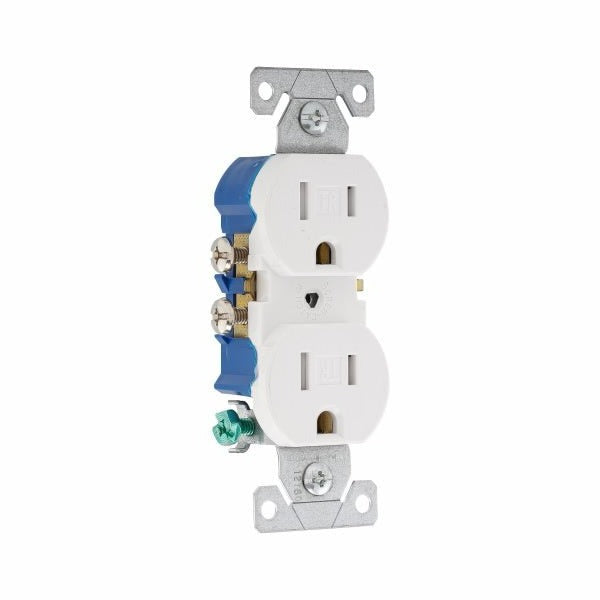

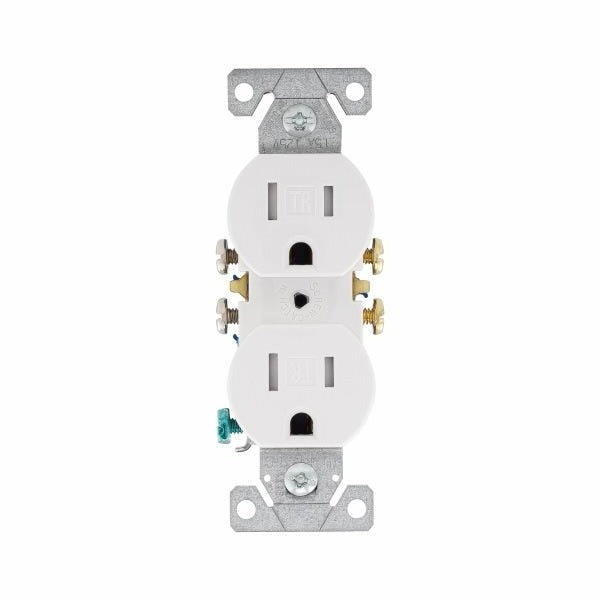

Eaton TR270W Duplex Receptacle Outlet

Eaton TR270W Duplex Receptacle Outlet

Regular price $1.99
Regular price $3.79 Sale price $1.99
Sale Sold out
Shipping calculated at checkout.

Standard Duplex Receptacle

Eaton Residential Grade Tamper Resistant Duplex Receptacle

2-pole, 3-wire grounding

  • Provides compliance with 2017 NEC Article 406.12
  • Durable impact-resistant thermoplastic face and back body is virtually unbreakable
  • Terminal screws are backed out and ready to wire
  • Extra-long and extra-wide mounting straps
  • Patented built-in wire stripper for #14 and #12 wire to speed installation
  • Side-wire terminals accept up to #10 solid or stranded wire
  • Push-in terminals accept #14 solid wire
Length (in.) 1.24"
Width (in.) 4.00"
Depth (in.) 0.79"
Weight (lbs) Each .0.10 lbs

Click Here for Single Gang Wallplate

Click Here for Two Gang Wallplate

Spec Sheet

Spec Sheet

Type Duplex Receptacle
Connector Type
Certifications cULus Listed
Color White
Material Thermoplastic, PVC body, Impact-resistant thermoplastic face
Additional Info
Wiring Method Side and push
Mounting Flush
Wire Size #14-10 AWG
Number of Poles Two-Poles
Voltage 125V
Amp. Rating 15 A
Use Residential
Torque Rating 14 lbf-inch
  • cULus Listed to UL498, file no. E15058
  • UL certified to CSA C22.2, no. 42
  • NOM/ANSI certified.
View full details
