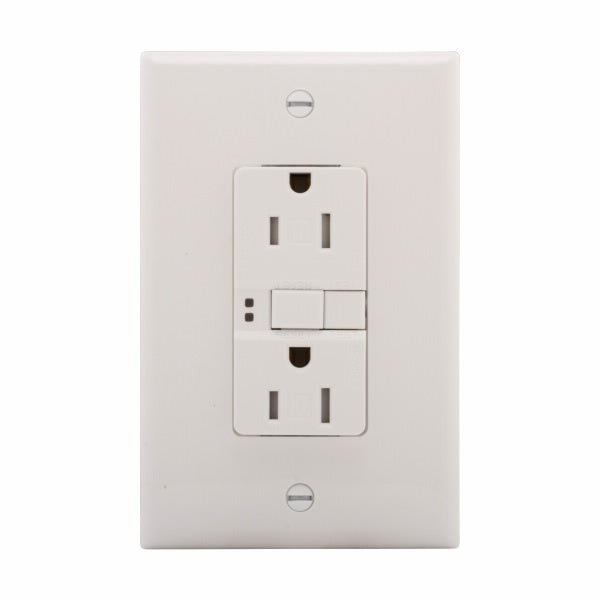

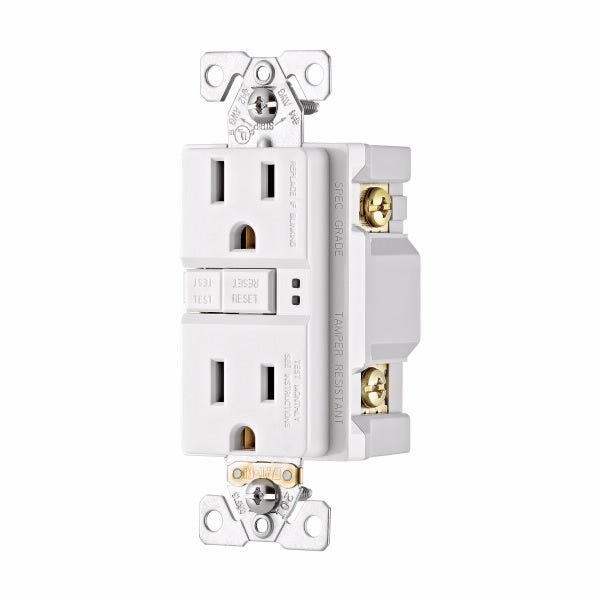

Eaton TRSGF20W Tamper Resistant GCFI Self-Test Receptacle

Eaton TRSGF20W Tamper Resistant GCFI Self-Test Receptacle

$31.99
$34.99 $31.99
Sale Sold out
Shipping calculated at checkout.
Count

Cooper Wiring TRSGF20W 20-Amp GFI

Eaton ground fault circuit interrupter receptacle, 20A, 125V, Back wire and side wire, GFCI, White, Brass, Receptacle, Tamper resistant, PVC, 5-15R, Two-pole, three-wire, grounding

  • Matching thermoplastic wallplate included
  • Performs periodic self-tests to ensure integrity of GFCI protection
  • Visual trip indicator light gives quick notification of a tripped or “end of life” condition
  • Meets and exceeds 10 kA short circuit testing and Underwriters Laboratories (UL) UL943 safety standards
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • More info by Additional Info↓
Length (in.) 4.19"
Width (in.) 1.30"
Depth (in.) 1.64"
Weight (lbs) Each 0.41 lbs
Spec Sheet

Spec Sheet

Installation Instructions

Info
Type GCFI Receptacle
Connector Type
Screw
Certifications cULus Listed
Color White
Material Thermoplastic, PVC
Additional Info
Wiring Method Back and Side Wire
Mounting Flush
Wire Size #14-10 AWG
Number of Poles Two-pole, three-wire, grounding
Voltage 125V
Amp. Rating 20 A
Use Residential / Commercial
Torque Rating 16 lbf-inch

 Compliances
  • cULus Listed to UL498, file no. E15058
  • UL certified to CSA C22.2, no. 42
  • NOM/ANSI certified.
  • Ground termination with back wire clamp provides secure wiring and reduces installation time
  • Tamper resistant shutters help prevent foreign objects from being inserted
  • Line side terminals are backed out and staked for fast installation
  • Horizontal test/reset button alignment provides larger unobstructed area
  • Test and reset buttons are color matched to provide superior aesthetics
  • Tapered back wire openings handle multiple wire sizes and types for applications up to #10 AWG solid or stranded wire
  • When downstream receptacles are wired from load side, a 20A feed-through rating offers full protection
  • Black tamper resistant shutters create seamless look
  • Line-load miswiring protection: GFCIs will not provide power downstream when wired incorrectly
  • Tri-combo head terminal and mounting screws
  • UL Listed, fully compliant with all latest UL943 Class A GFCI requirements
  • Tamper resistant models comply with 2017 and 2020 NEC Article 406.12
  • Weather resistant models comply with 2017 and 2020 NEC Article 406.9 that states that all receptacles installed in wet or damp locations must be weather resistant
  • Longer, wider “bridged” strap provides 40% more contact area with wallboard, virtually eliminating floating installations
  • Matching thermoplastic wallplate included
