Eaton TRSGFA15W Tamper Resistant Audible Alarm GCFI Self-Test Receptacle
Eaton TRSGFA15W Tamper Resistant Audible Alarm GCFI Self-Test Receptacle
Regular price
$31.99
Regular price
$33.99
Sale price
$31.99
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

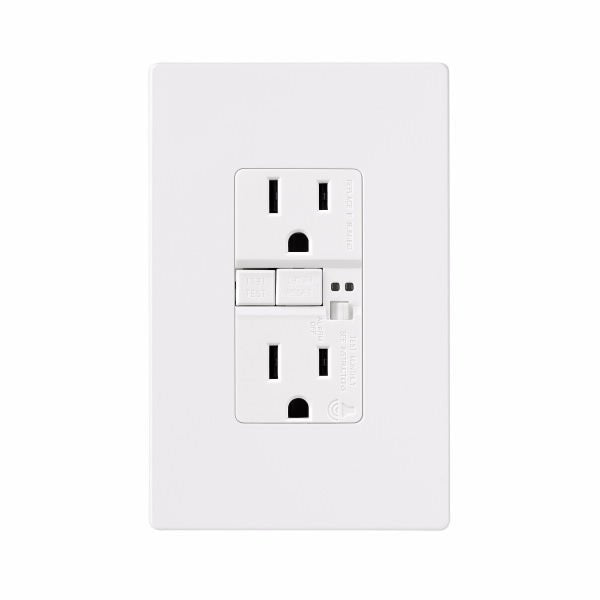

Eaton TRSGFA15W Self-test GFCI Receptacle Audible Alarm 15A 125V
Eaton GFCI receptacle, Audible alarm, Tamper resistant,Self-test,#14 - 10 AWG,15A,Residential,Commercial,Flush,125 V, GFCI, Back and side wire, White, Brass, Receptacle, Tamper resistant,Polycarbonate,5-15R,Two-pole, three-wire, grounding
- Matching thermoplastic wallplate included
- Performs periodic self-tests to ensure integrity of GFCI protection
- Visual trip indicator light gives quick notification of a tripped or “end of life” condition
- Audible alarm notifies user of tripped GFCI. Alarm can be turned off by sliding the switch on the device face if required
- Meets and exceeds 10 kA short circuit testing and Underwriters Laboratories (UL) UL943 safety standards
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Ground termination with back wire clamp provides secure wiring and reduces installation time
- Tamper resistant shutters help prevent foreign objects from being inserted
- Line side terminals are backed out and staked for fast installation
- Horizontal test/reset button alignment provides larger unobstructed area
- Test and reset buttons are color matched to provide superior aesthetics
- Additional Info at the bottom↓
| Length (in.) | 4.20" |
| Width (in.) | 1.69" |
| Depth (in.) | 1.30" |
| Weight (lbs) Each | 0.41 lbs |
Spec Sheet
Spec Sheet
Installation Instructions
Info
| Type | GCFI Receptacle |
| Features | Audible alarm, Tamper resistant |
| Connector Type |
Screw
|
| Certifications | cULus Listed UL Listed CSA Certified |
| Color | White |
| Material | Thermoplastic, PVC |
Additional Info
| Wiring Method | Back and Side Wire |
| Mounting | Flush |
| Wire Size | #14-10 AWG |
| Number of Poles | Two-pole, three-wire, grounding |
| Voltage | 125V |
| Amp. Rating | 15 A |
| Use | Residential / Commercial |
| Torque Rating | 16 lbf-inch |
| Compliances |
|
- Tapered back wire openings handle multiple wire sizes and types for applications up to #10 AWG solid or stranded wire
- When downstream receptacles are wired from load side, a 20A feed-through rating offers full protection
- Line-load miswiring protection: GFCIs will not provide power downstream when wired incorrectly
- Tri-combo head terminal and mounting screws
- UL Listed, fully compliant with all latest UL943 Class A GFCI requirements
- Tamper resistant models comply with 2017 and 2020 NEC Article 406.12
- Black tamper resistant shutters create seamless look
- Longer, wider “bridged” strap provides 40% more contact area with wallboard, virtually eliminating floating installations
- Matching standard size thermoplastic wallplate included (midsize wallplate on TRSGFA15W-M)
