Eaton TRUSB5A15W Combo USB Charger Tamper Resistant Duplex Receptacle

Eaton TRUSB5A15W Combo USB Charger Tamper Resistant Duplex Receptacle

Regular price $47.99
Regular price $49.99 Sale price $47.99
Sale Sold out
Shipping calculated at checkout.

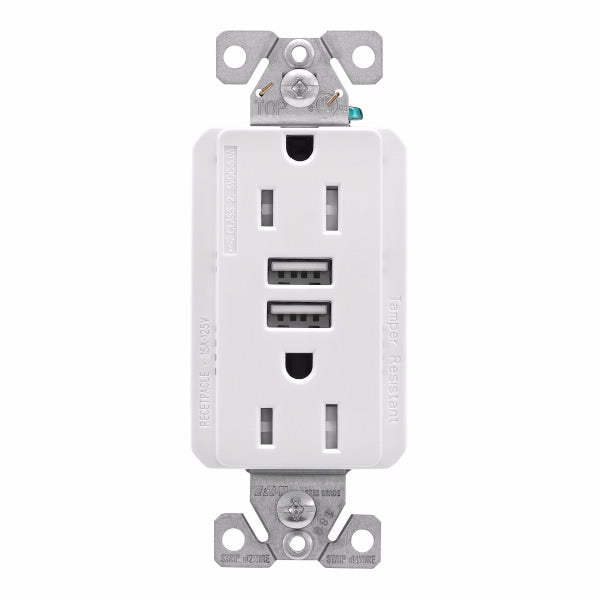

Combo USB Duplex Receptacle 15AMP

Eaton’s USB 5A duplex receptacle offers fast, efficient, and adapter-less charging of electronic devices in residential and commercial environments. The receptacle eliminates clutter by presenting adapter-free charging for all compatible electronic devices, while simultaneously providing charge for up to two devices rated at 5A charging capacity. The product allows for easy installation by leveraging Eaton’s convenient patented built-in wire strippers. Designed to be child-safe, the receptacle is designed with tamper-resistant shutters that comply with 2014 NEC® Article 406.12

Eaton Combination; USB-Type A Charger, 15A 5-15R Receptacle, White, USB, Brass, Thermoplastic, Flush, 5-15R, Two-pole, Three-wire, Tamper resistant, Decorator, 125 V

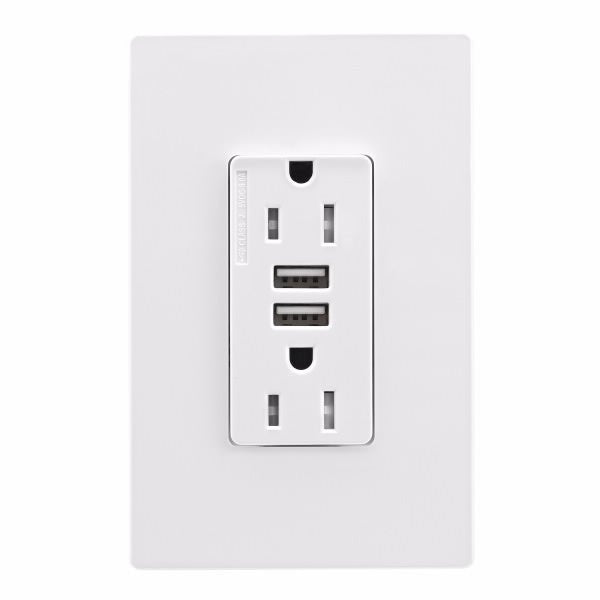

Order Decora Wall plate separately

  • Standard AC duplex receptacle with two USB charging ports rated at 3.1A
  • Dual USB charging ports charge most compatible electronic devices that charge via a 5V charger adapter
  • Tamper resistant shutters provide compliance with 2014 NEC® Article 406.12 that states that all 15A and 20A, 125V receptacles installed in dwelling units must be tamper resistant
  • Replaces a standard duplex receptacle
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • Thermoplastic top and back-body are virtually unbreakable to deliver years of durable performance
  • Steel mounting strap is zinc plated for added corrosion resistance
  • Convenient patented built-in wire strippers speed installation
  • Triple wipe blade contacts and double wipe ground contacts to insure long-term blade retention
    Length (in.) 4.19"
    Width (in.) 1.67"
    Depth (in.) 1.30"
    Weight (lbs) Each 0.28 lbs
    Spec Sheet

    Spec Sheet

    Type Combo USB Charger Receptacle
    Features Tamper resistant, 5A Charging
    Connector Type
    Certifications cULus Listed
    Color White
    Material Thermoplastic, PVC
    Additional Info
    Wiring Method Screw Terminal
    Mounting Flush
    Wire Size #12-14 AWG
    NEMA Configuration 5-15R
    Number of Poles Two-pole, three-wire, grounding
    Voltage 125V
    Amp. Rating 15A
    Use Residential / Commercial
    Torque Rating 14 lbf-inch
    • cULus Listed to UL498, file no. E15058
    • UL certified to CSA C22.2, no. 42
    • NOM/ANSI certified.
