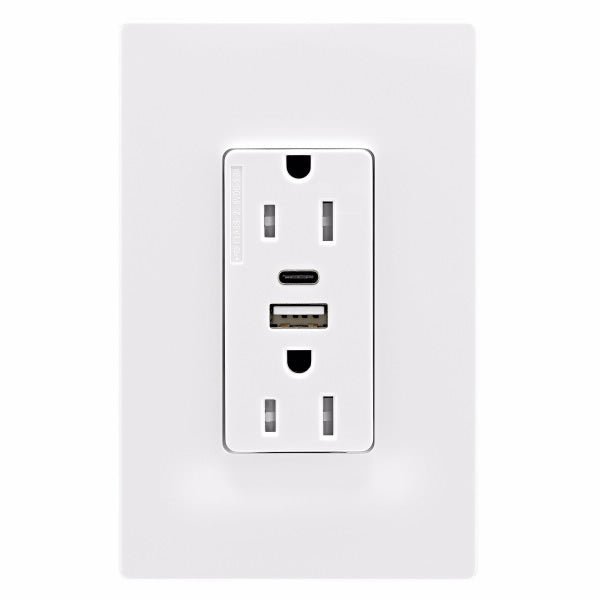

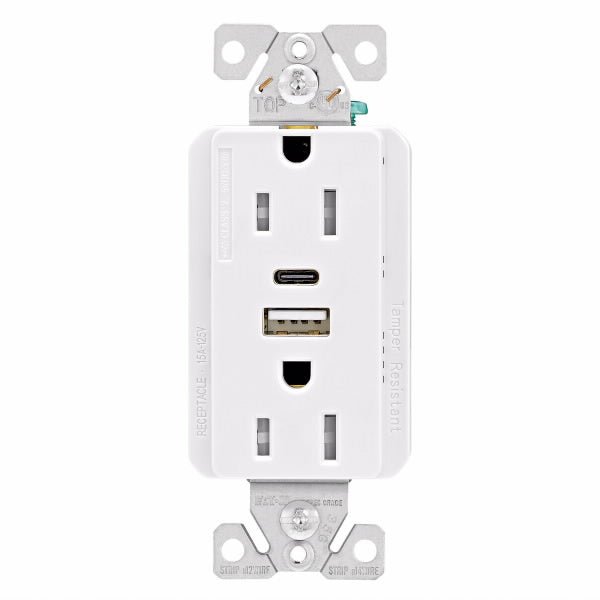

Eaton TRUSBAC15W Combo USB A and C Charger Tamper Resistant Receptacle
Eaton TRUSBAC15W Combo USB A and C Charger Tamper Resistant Receptacle
Regular price
$51.99
Regular price
$54.99
Sale price
$51.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
USB Type A and C Combo Duplex Receptacle Charger
Eaton Combination: USB Type A and C Charger, 15A 5-15R Receptacle, White, USB, Brass, Flush, Two-pole, Three-wire, Tamper resistant, Decorator
- Standard AC receptacle with USB and USB-C ports rated at a combined 5.0A
- USB-C charging port charges most electronic devices that comply with the USB-C standard
- Tamper resistant shutters provide compliance with 2017 NEC® Article 406.12 that states that all 15A and 20A, 125V receptacles installed in dwelling units must be tamper resistant
- Replaces a standard duplex receptacle
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Thermoplastic top and back-body are virtually unbreakable to deliver years of durable performance
- Steel mounting strap is zinc plated for added corrosion resistance
- Convenient patented built-in wire strippers speed installation
- Triple wipe blade contacts and double wipe ground contacts to insure long-term blade retention
- Reversible Type C port allows for consistent charging regardless of plug-in orientation
| Length (in.) | 4.19" |
| Width (in.) | 1.30" |
| Depth (in.) | 1.67" |
| Weight (lbs) Each | 0.41 lbs |
Spec Sheet
Spec Sheet
Installation Instructions
Info
| Type | Combo USB Charger Receptacle |
| Features | Tamper Resistant, USB charger A&C 5A |
| Connector Type |
Screw
|
| Certifications | cULus Listed |
| Color | White |
| Material | Thermoplastic, PVC |
Additional Info
| Wiring Method | Back and Side Wire |
| Mounting | Flush |
| Wire Size | #12-14 AWG |
| Number of Poles | Two-pole, three-wire, grounding |
| Voltage | 125V |
| Amp. Rating | 15 A |
| Use | Residential / Commercial |
| Torque Rating | 16 lbf-inch |
| Compliances |
|
