Eaton

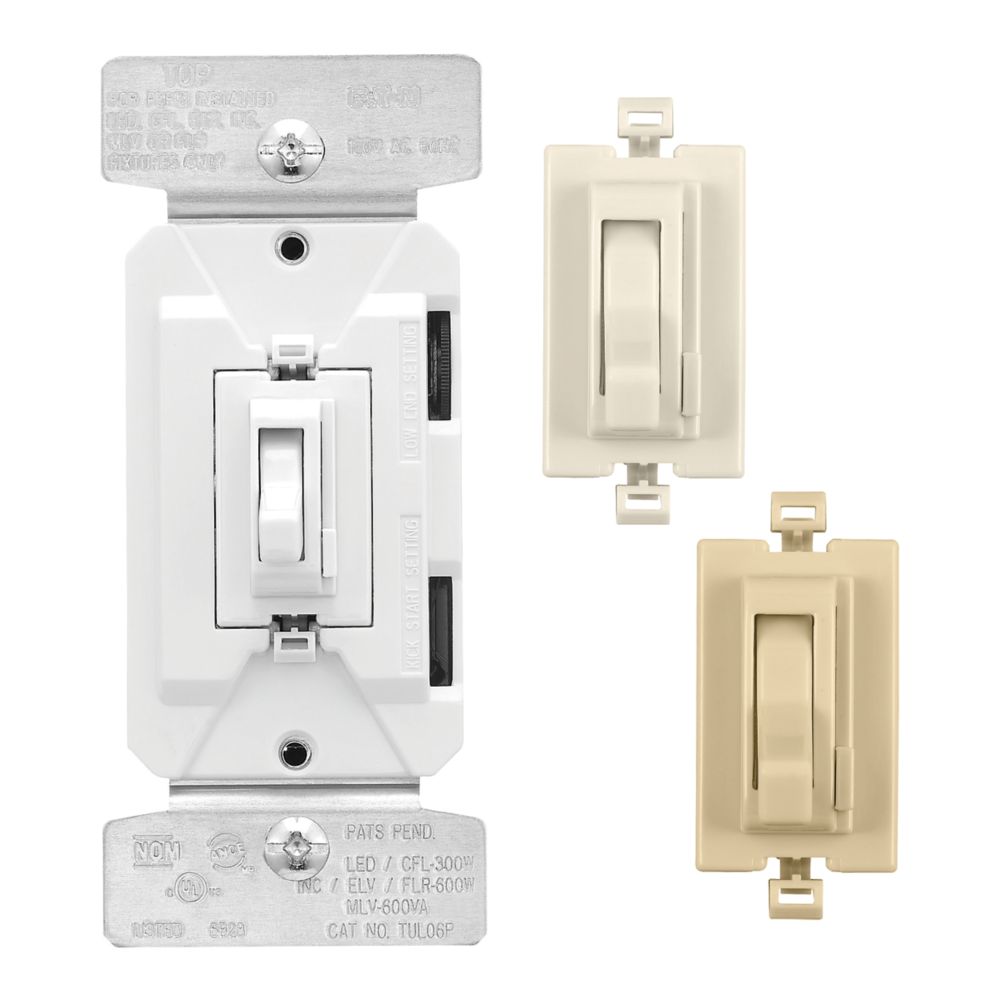

Eaton TUL06P Toggle Dimmer Switch
Eaton TUL06P Toggle Dimmer Switch
Regular price
$34.99
Regular price
$39.99
Sale price
$34.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Single pole & 3-Way Decora Switch
This switch is compatible with various light sources, including LED, CFL, INC/HAL, FLR, MLV, and ELV. It can handle up to 300W for single-pole and 3-way switches and up to 600W/VA for INC/HAL. Achieve the perfect lighting with ease and efficiency!
- Preset feature allows user to return to previous light level when turning lights ON
- Integrated full-slide control for easy, precise operation
- Device can be wired into either 3-way location (load side or line side)
- Neutral is not required for installation of device
- Adjustable low-level trim setting for optimal lamp compatibility
- Faceplate is removable to allow for color changes
- Radio frequency interference filtering is standard on all models
- Electrostatic discharge protection
- Compatible with any traditional toggle wallplate or screwless toggle wallplate
- Compatible with most common dimmable lighting loads (Forward phase-cut)
- Color change kits are available with packout of 3 different colors for increased flexibility and convenience
- Soft gradual ON feature
- California Title 20/24 compliant
| Length (in.) | 4.36" |
| Width (in.) | 2.10" |
| Depth (in.) | 2.783" |
| Weight (lbs) Each | .0.175 lbs |
Spec Sheet
Spec Sheet
Installation Instructions
Info
| Type | Toggle Dimmer Switch |
| Connector Type |
Screw
|
| Switch Type |
Single-pole/3 Way
|
| Compliance | RoHS Compliant |
| Certifications | cULus Listed |
| Color | White |
| Material | Polycarbonate |
Additional Info
| Load Type | Motor Control, HAL, LED, CFL, MLV, ELV, INC, Fan, FLR |
| Wiring Method | Back and side wire |
| Mounting | Flush |
| Wire Size | #14-10 AWG |
| Voltage | 120V |
| Amp. Rating | 15 A |
| Use | Residential |
| Actuator |
Toggle |
