Eaton

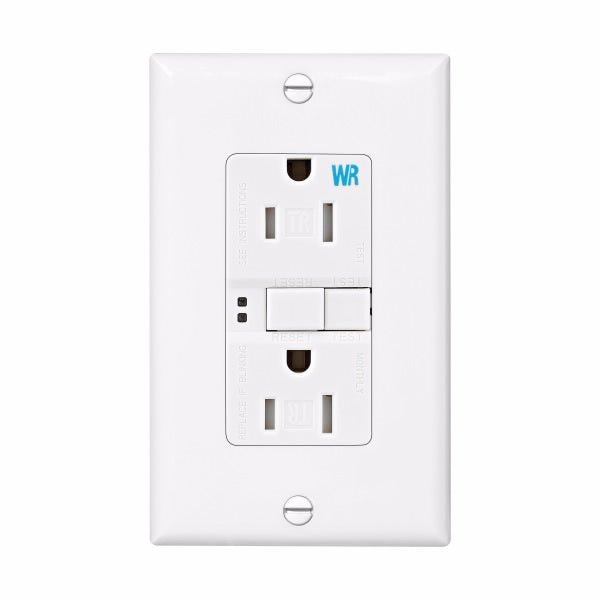

Eaton TWRSGF15W Tamper & Weather Resistant GCFI Self-Test Receptacle
Eaton TWRSGF15W Tamper & Weather Resistant GCFI Self-Test Receptacle
Regular price
$29.49
Regular price
$31.99
Sale price
$29.49
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Cooper Wiring TWRSGF15W 15-Amp White Decorator GFCI Electrical Outlet
Eaton GFCI receptacle, Weather resistant, Tamper resistant,Self-test,#14 - 10 AWG,15A,Residential,Commercial,Flush,125 V, Back and side wire ,white, Brass, Tamper and weather resistant,Polycarbonate,5-15R,Two-pole,Three-wire,grounding
- Matching thermoplastic wall plate included
- Provides compliance with 2017 NEC® Article 406.9 that states that all receptacles installed in wet and damp locations must be weather resistant
- Manufactured with the highest grade materials; durable impact resistant thermoplastic face and back body is virtually unbreakable
- “TR” designation provides visual identification that device has tamper resistant shutters preventing insertion of foreign objects
- “WR” indentifier quickly indicates during inspections that a weather resistant receptacle has been installed
- Terminal screws are backed out and ready to wire
- Extra-long and extra-wide mounting straps
- Patented built-in wire stripper for #14 and #12 wire to speed installation
- Side-wire terminals accept up to #10 solid or stranded wire
| Length (in.) | 4.20" |
| Width (in.) | 1.69" |
| Depth (in.) | 1.30" |
| Weight (lbs) Each | 0.41 lbs |
Spec Sheet
Spec Sheet
Installation Instructions
Info
| Type | GCFI Receptacle |
| Connector Type |
Screw
|
| Certifications | cULus Listed |
| Color | White |
| Material | Thermoplastic, PVC |
Additional Info
| Wiring Method | Back and Side Wire |
| Mounting | Flush |
| Wire Size | #14-10 AWG |
| Number of Poles | Two-pole, three-wire, grounding |
| Voltage | 125V |
| Amp. Rating | 15 A |
| Use | Residential / Commercial |
| Torque Rating | 16 lbf-inch |
| Compliances |
|
