Emergi-Lite

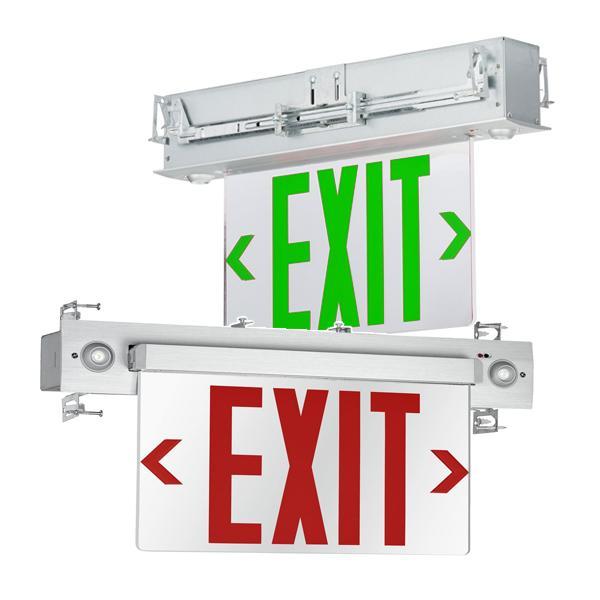

Emergilite CPNR6-2HO Glass Edge Lit Exit Combo Sign

Emergilite CPNR6-2HO Glass Edge Lit Exit Combo Sign

$219.99
$249.99 $219.99
Sale Sold out
Shipping calculated at checkout.
Letter Color

Single and Double Face, Surface or Recessed Mount Edge-lit Exit Combo Sign

EMERGI-LITE Total™ Edge Series 6" Single and double face, surface and recessed mount edge-lit exit sign

  • Extruded aluminum housing and trim plate
  • Acrylic panel featuring 6-inch silk-screened EXIT legend with field selectable chevrons
  • Available in single face red or green on clear, double face red or green on mirror
  • Wall and ceiling surface or recessed mount

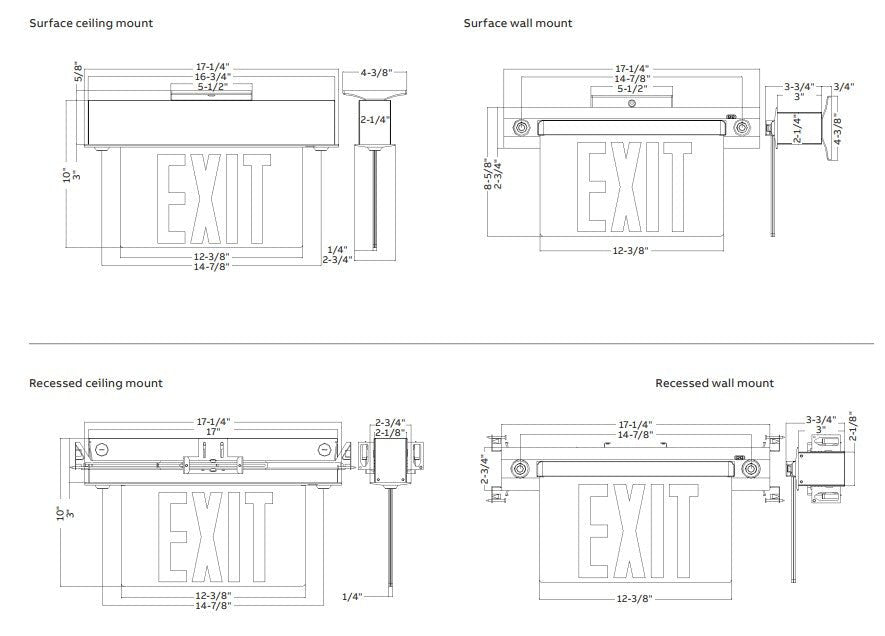

       Dimension
      Length (in.) 9-5/8"
      Width (in.) 14.50"
      Depth (in.) 3.50”
      Spec Sheet

      Spec Sheet

      Installation Instructions

      Info
      Type Glass LED Exit Combo Sign
      Watt 5W (2.5W Each)
      Lumen 800L (400 Lumens Each)
      Mounting Ceiling, End, or Wall
      Warranty Unit has a three year full warranty
      Input
      		 120/277VAC, 60Hz 0.034A / 0.017A
      Color Red, Green

       Construction
      Extruded aluminum housing and trim plate
      Brushed aluminum finish
      Trim plate includes two fully tool-free adjustable, 2.5W LED heads, 400 Lumens each
      Acrylic panel featuring 6 inch silk-screened EXIT legend with field selectable chevrons
      Single face red or green on clear, double face red or green on mirror

      Additional Info
      Compliance
      UL 924 listed
      Damp location 50°F to 104°F (10°C to 40°F)
       Mounting
      Wall and ceiling surface and recessed mount
      Universal mounting on wall or ceiling, for surface or recessed applications
      Adjustable bar hanger included for recessed applications
