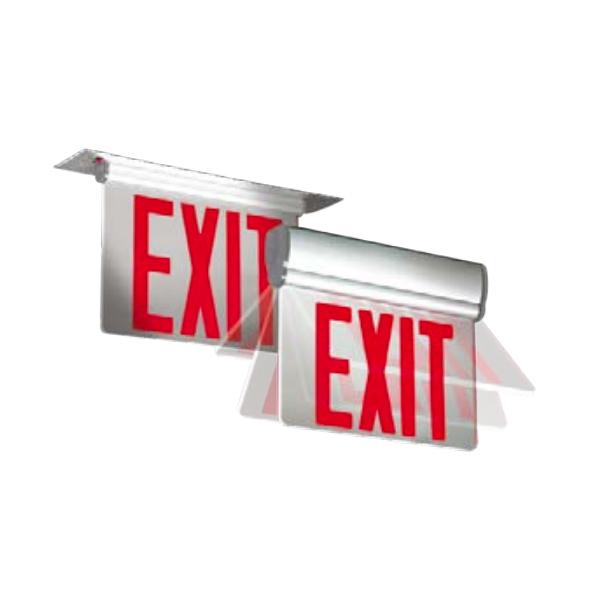

Single and Double Face, Surface or Recessed Mount Edge-lit Exit Sign
EMERGI-LITE Total™ Edge Series 6" Single and double face, surface and recessed mount edge-lit exit sign
- Extruded aluminum housing and trim plate
- Acrylic panel featuring 6-inch silk-screened EXIT legend with field selectable chevrons
- Available in single face red or green on clear, double face red or green on mirror
- Wall and ceiling surface or recessed mount

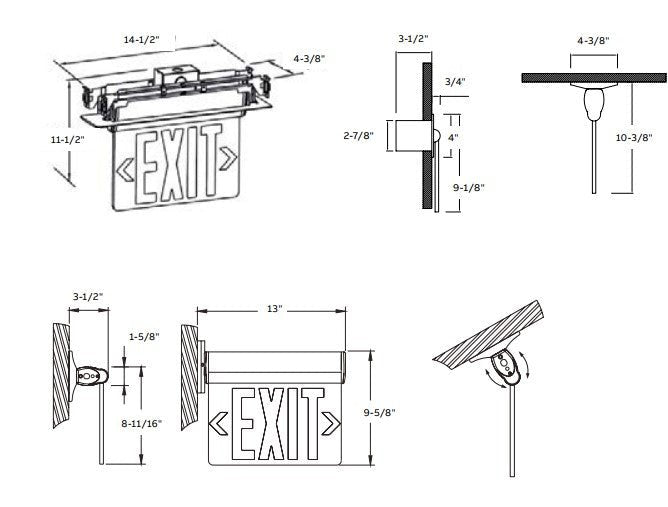

Dimension
| Length (in.)
|
9-5/8"
|
| Width (in.)
|
14.50" |
| Depth (in.) |
3.50” |
|
Spec Sheet
Info
| Type |
Glass LED Exit Sign |
| Mounting |
Ceiling, End, or Wall |
| Warranty |
Unit has a three year full warranty |
Input
|
120/277VAC, 60Hz 0.034A / 0.017A |
| Color |
Red Letters |
| Construction |
| Extruded aluminum housing |
| High grade acrylic panel |
| 6 inch EXIT lettering legend, available in red or green |
| Field-selectable chevrons |
| Satin aluminum housing |
| Optional Advanced Diagnostics |
|
Additional Info
| Compliance |
| UL 924 listed |
| Damp location 50°F to 104°F (10°C to 40°F) |
| Meets NFPA101 (Life Safety Code) NFPA 70 NEC and OSHA illumination standards |
| Compatible with Emergi-Lite Min Inverters (contact your sales representative for more information) |
|
| Mounting |
| Pivoting panel design allows for recessed, surface, wall or ceiling mount installation |
| A ratcheting mechanism allows the panel to be set in place from 0° to 180° for wall or sloped ceiling mounting |
| Canopy included for surface wall, end or ceiling mount application |
| Easy snap in backbox with securing trim plate allow for sheet rock ceiling installation |
| Trim plate, 27 inch adjustable T-bar hangers and a junction box included for recessed application |
|
