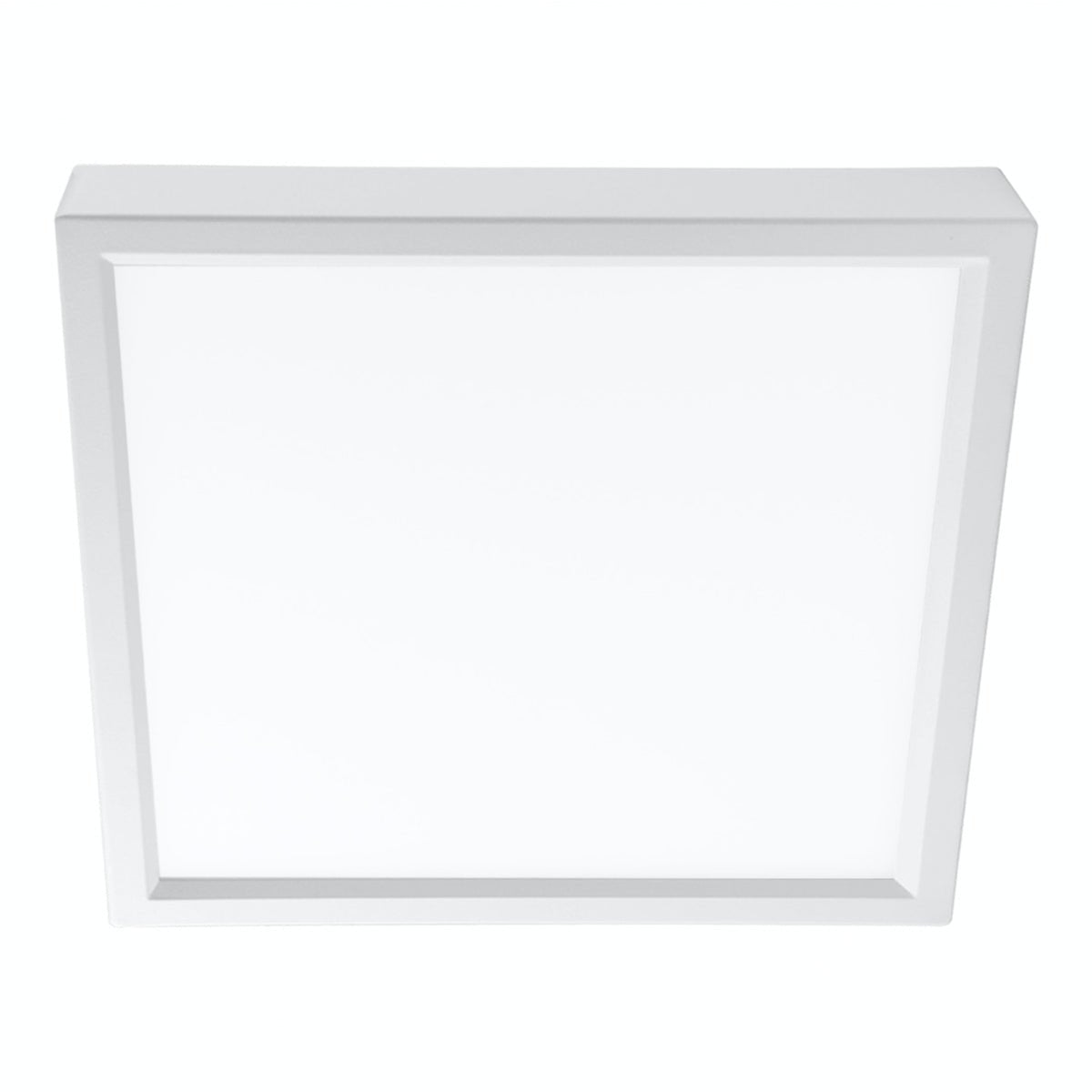

Envision SLDSKSQ12 22W LED 12" Surface Mount Selectable CCT
Envision SLDSKSQ12 22W LED 12" Surface Mount Selectable CCT
Regular price
$65.99
Regular price
Sale price
$65.99
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
12" Surface Mount Round
With EnVision's SLDSKSQ12 24W LED 12" Surface Mount Selectable CCT, you can experience the ultimate in LED technology. Our revolutionary slim profile and cutting-edge edge-lit and driverless AC LED technology make it perfect for both new construction and remodel applications. With two size options and a sleek .85" width, this LED disk is unmatched in the market. It offers superior low-glare illumination and an even light distribution, thanks to its innovative edge-lit technology. Plus, it is wet rated and boasts an impressive CRI >90.
Dimensions
| Depth (in.) | 1.00" |
| Length (In.) | 12.00" |
| Width (in.) | 12.00" |
| Aperture Width (in.) | 11.00" |
- IP Rating: Wet Location
- Beam Angle: 110°
- Chip: SMD 2835, R9 >50, CRI >90
- 3 Step MacAdam Ellipses
- Operating Temperature: -40° - 114° F
- Lens: Frosted Acrylic, non-yellowing
- Housing: Metal - Trims: Metal
- Average life (L70) of 50,000 hours
Spec Sheets
Spec Sheet
Installation Instructions
Info
| Product Type | Slim Line Surface Mount |
| Wattage | 22W |
| Lumen | 1450 |
| Color Temp. | Field adjustable 27/30/35/40/50K |
| CRI | 90 |
| L70 Lifespan | 50,000 |
| Housing Material | Metal |
| Housing Finish | White |
| Style | Smooth |
| Lens | Frosted lens constructed from polycarbonate material diffuses light evenly and smoothly |
| Mounting | Surface Mount |
