Green Beam

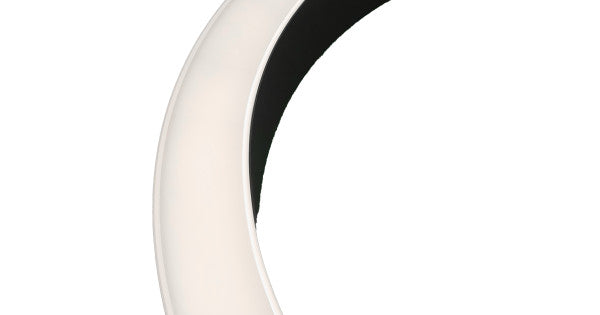

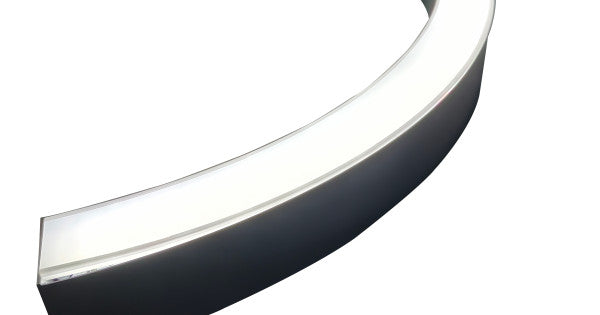

GreenBeam GBLUX-Q LUX Curved 90° Black LED Linear, Power + CCT
GreenBeam GBLUX-Q LUX Curved 90° Black LED Linear, Power + CCT
Regular price
$269.89
Regular price
Sale price
$269.89
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
LUX Curved 90° LED Linear Light, Black, Selectable Wattage/ CCT
LUX linear lighting fixtures combine refined aesthetics with superior quality, performance, and versatility as exceptional architectural LED lighting solutions. The LUX series can be customized to your desired length, illumination direction and is field adjustable for color temperature and wattage. It can either be suspended, surface mounted, recessed or wall mounted to suit all your installation needs.
- Field-adjustable wattage (4-setting switch) and field-adjustable CCT (30K/35K/40K/50K)
- Direct/indirect illumination adjustable by switch (100% direct, 50/50, 60/40, 70/30)
- Curved 90° sections in 12", 18" and 24" radius; recessed flange and trimless flange options
- Dimmable 0-10V, 6 ft power cord included
- Optional microwave occupancy sensor with 3-step dimming and optional emergency battery backup (by variant)
- UL / DLC Premium listed, damp location rated, 5 year limited warranty
Spec Sheets
Spec Sheet
Info
| Product Type | LED Curved Linear Light (90°) |
| Wattage, Q24 (12" radius (24" dia.)) | 5/10/15/20 |
| Wattage, Q36 (18" radius (36" dia.)) | 13/18/23/28 |
| Wattage, Q48 (24" radius (48" dia.)) | 20/25/30/35 |
| Lumen, Q24 | 2060 (100% direct, 3500K, highest wattage) |
| Lumen, Q36 | 3220 (100% direct, 3500K, highest wattage) |
| Lumen, Q48 | 3745 (100% direct, 3500K, highest wattage) |
| Color Temp. | Field Adjustable 30K/35K/40K/50K |
| CRI | 80 |
| Efficacy | 107-135 lm/W |
| L70 Lifespan | 50,000 |
| Finish | Black |
| Construction | Extruded Aluminum, Black |
| Lens | Polycarbonate, Frosted |
