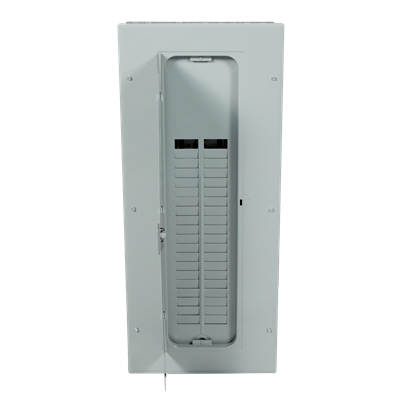

GE PAL4020 200A Main Lug Load Center 40 Space 80 Circuit 120/240V
GE PAL4020 200A Main Lug Load Center 40 Space 80 Circuit 120/240V
Regular price
$179.99
Regular price
Sale price
$179.99
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
GE PAL4020 200A Main Lug Load Center 40 Space 80 Circuit 120/240V
The GE PAL4020 is a 200A main lug P-Series plug-on neutral indoor load center with 40 one-inch spaces (80 circuits), rated 120/240V ac with a 22 kAIC interrupting rating.
- Amperage: 200A
- Input/Output Voltage: 120/240V ac
- Phase: 1 Phase
- Enclosure Type: Indoor, Combination
- NEMA Rating: NEMA 1
- 1 inch spaces: 40
- Interrupting capacity: 22 kAIC
Shipping: Orders over 225 lb ship at a quoted rate. Choose the "Over 225 lb" option at checkout and we will contact you with a shipping quote.
Spec Sheets
Spec Sheet
Info
| # Branch Circuit 250A | 40 |
| 1" Space | 40 |
| 1/2" Space | 0 |
| Amperage | 200A |
| Circuit Breaker Style | Plug-On Neutral |
| Door | Yes |
| Enclosure | Indoor |
| Enclosure Type | Indoor, Combination |
| Factory Installed Ground Kit | No |
| Feed | Either |
| Input/Output Voltage | 120/240V ac |
| Interrupt Rating | 22kAIC |
| Interrupting Capacity Rating | 22kAIC |
| Load Center Type | P-Series (PON) |
| Meter Socket Options: 200 Amp Main Breaker Installed | No |
| Meter Socket Options: High Amp Mode | None |
| NEMA Rating | NEMA 1 |
| No of Circuits | 80 |
| Phase | 1 Phase |
| Service & Voltage | 1 Phase, 3 Wire, 120/240V ac |
| Wires | 3 Wire |
| UL/CUL Listing | UL |
