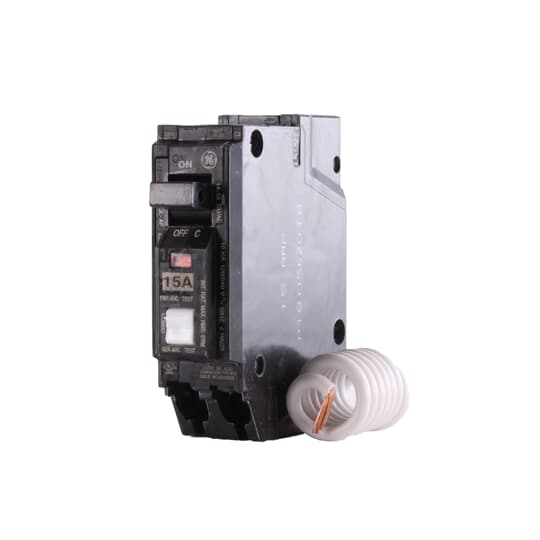

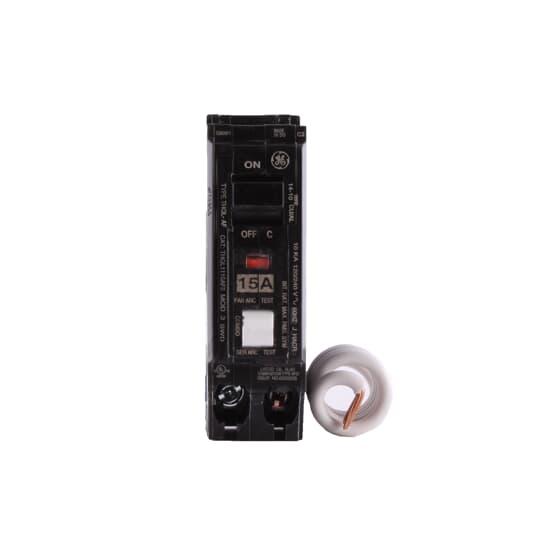

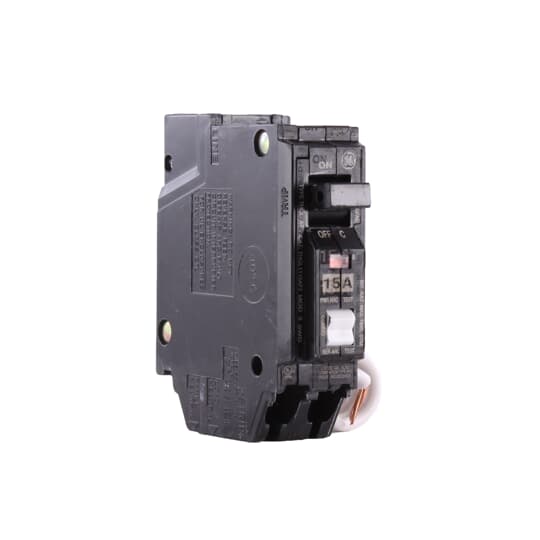

GE THQL1115AF2 15A 1P 120VAC PLUG IN AFCI COMBO
GE THQL1115AF2 15A 1P 120VAC PLUG IN AFCI COMBO
Regular price
$53.99
Regular price
Sale price
$53.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Single Pole 15A Arc Fault Breaker
The GE THQL1115AF2 15A 1P 120VAC PLUG IN AFCI COMBO is a compact, thermal-magnetic device designed for residential and commercial applications. It features a Quick-make / Quick-break mechanism, common trip bars, and easy to spot trip indication for added safety and reliability. It can be used in 1, 2, and 3 pole versions, and also offers the option for auxiliary contact and shunt trip accessories. This product, known as the AF2 Combination, meets the standards of 2005 NEC and 2008 NEC.
Spec Sheet
Spec Sheet
Info
| Interrupting Capacity Rating | 10 kAIC |
| Neutral Connection | Pig Tail |
| Trip Style | Non-Interchangeable |
| Frame Type | Q-Line |
| Amp | 15 A |
| Voltage |
120 Vac 120/240 Vac |
| Poles | 1 |
| Trip Function | LI |
| Continuous Current Rated | Standard |
| 120 Vac Interrupting Rating | 10 KAIC |
| 120/240 Vac Interrupting Rating | 10 KAIC |
| Suitable for Reverse Feed | Yes |
| Long Time | Fixed |
| Instantaneous | Fixed |
| Protective Relays | No |
| Current Metering | No |
| Special Markings | HACR SWD |
| GSA Compliance | Yes |
Dimensions
| Depth | 3.00" |
| Height | 4.50" |
| Weight | .479 |
| Width | 1.25" |
