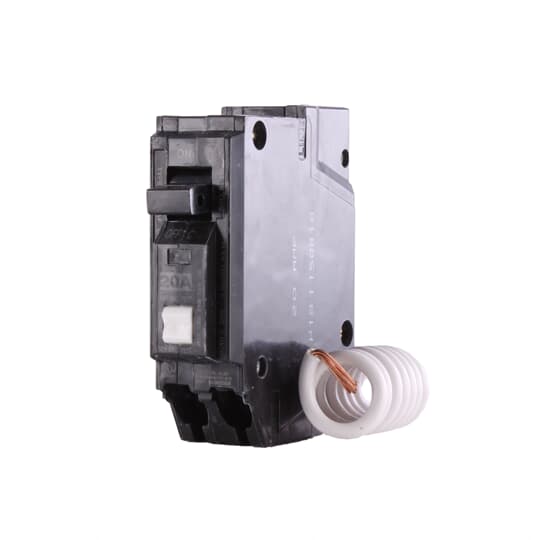

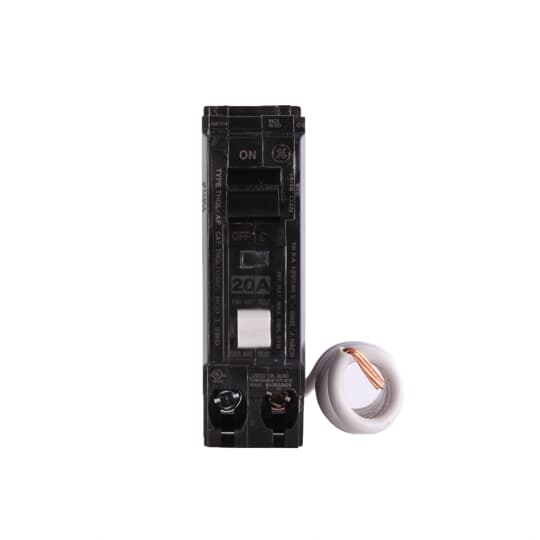

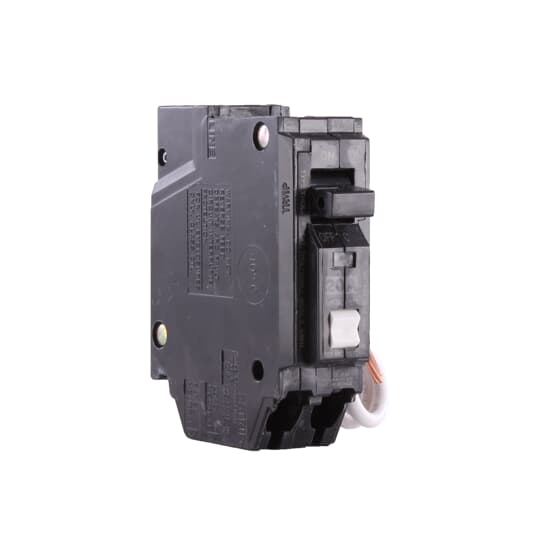

GE THQL1120AF2 AFCI 20A Circuit Breaker
GE THQL1120AF2 AFCI 20A Circuit Breaker
Regular price
$53.99
Regular price
Sale price
$53.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Single Pole 20A Arc Fault Breaker
Designed to detect and prevent damages caused by arcing, arc fault breakers are essential for safety and reliability. The GE THQL1120AF2 AFCI 20A Circuit Breaker is a compact device that features a Quick-make / Quick-break mechanism, common trip bar, and easy-to-spot trip indications. This combination breaker not only protects against parallel and series arcs, but also meets current NEC standards. With a 1 inch width per pole, this breaker has an ampere rating of 20 A, an interrupting rating of 10 kAIC, and a voltage rating of 120/240V.
Spec Sheet
Spec Sheet
Info
| Interrupting Capacity Rating | 10 kAIC |
| Neutral Connection | Pig Tail |
| Trip Style | Non-Interchangeable |
| Frame Type | Q-Line |
| Amp | 20 A |
| System Voltage | 120VAC-120/240 Vac |
| Poles | 1 |
| Trip Function | LI |
| Continuous Current Rated | Standard |
| 120 Vac Interrupting Rating | 10 KAIC |
| 120/240 Vac Interrupting Rating | 10 KAIC |
| Suitable for Reverse Feed | Yes |
| Long Time | Fixed |
| Instantaneous | Fixed |
| Protective Relays | No |
| Current Metering | No |
| Special Markings | HACR SWD |
| GSA Compliance | Yes |
Dimensions
| Depth | 3.00" |
| Height | 4.50" |
| Weight | .479 |
| Width | 1.25" |
