GE THQL2130GFT 2 Pole 120/240V 30 Amp GFCI Self-Test Circuit Breaker
GE THQL2130GFT 2 Pole 120/240V 30 Amp GFCI Self-Test Circuit Breaker
Regular price
$230.99
Regular price
Sale price
$230.99
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

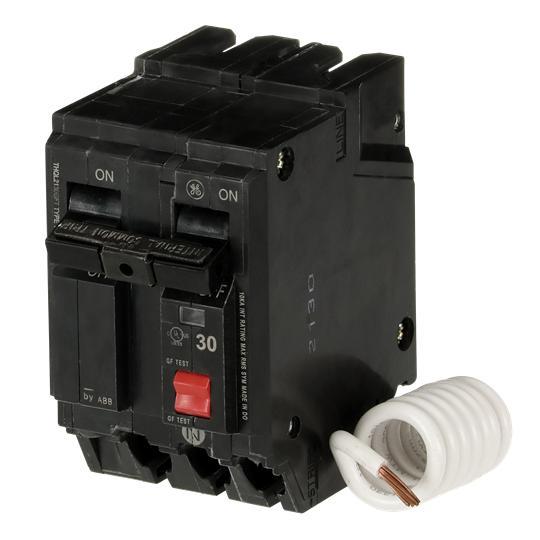

GE THQL2130GFT 2 Pole 120/240V 30 Amp GFCI Self-Test Circuit Breaker
The GE THQL2130GFT is a 2-pole, 30 amp GFCI self-test Q-Line plug-in circuit breaker rated 120/240 V with a 10 kAIC interrupting rating.
- Amperage: 30A
- Poles: 2
- Voltage: 120/240 V
- Interrupting capacity: 10 kAIC
- Q-Line frame, non-interchangeable trip style
- GFCI self-test ground fault protection
- Suitable for reverse feed
Spec Sheets
Spec Sheet
Info
| Interrupting Capacity Rating | 10 kAIC |
| Voltage | 120/240 V |
| Neutral Connection | Pig Tail |
| Trip Style | Non-Interchangeable |
| Frame Type | Q-Line |
| Amperage | 30A |
| System Voltage | 120/240 Vac |
| Poles | 2 |
| Trip Function | LIG |
| Continuous Current Rated | Standard |
| 120/240 Vac Interrupting Rating | 10 KAIC |
| Suitable for Reverse Feed | Yes |
| Long Time | Fixed |
| Instantaneous | Fixed |
| Ground Fault | Yes |
| Protective Relays | No |
| Current Metering | No |
| Special Markings | HACR |
| GSA Compliance | No |
| UL File # | E51075 |
