GE THQL2180 2 POLE 120/240V 10K IC 80 AMP
GE THQL2180 2 POLE 120/240V 10K IC 80 AMP
Regular price
$64.99
Regular price
Sale price
$64.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Two Pole 80A Breaker

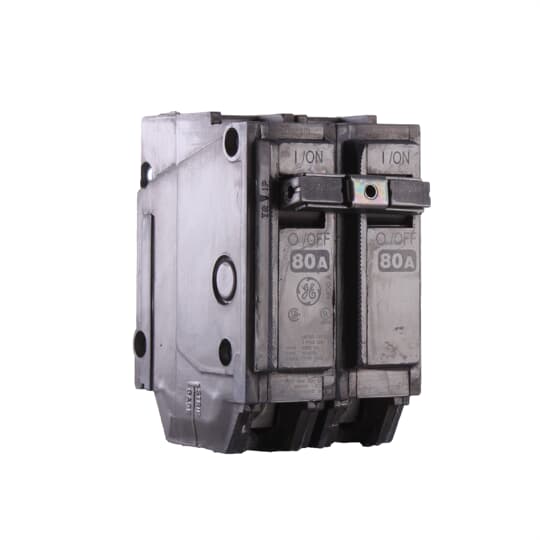

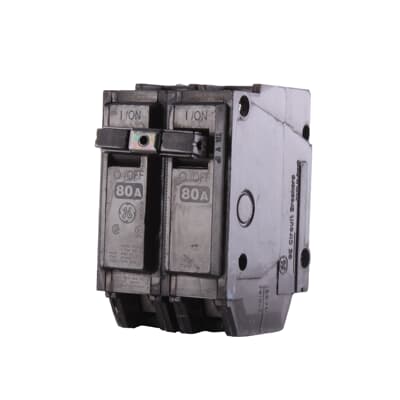

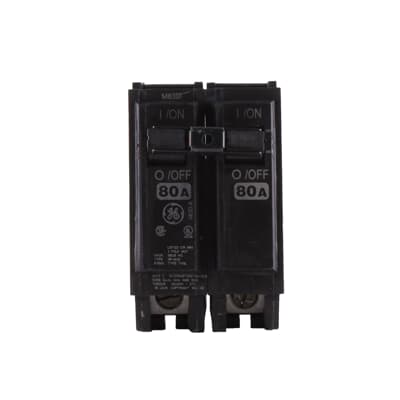

The GE THQL2180 is an 80A 2-Pole Circuit Breaker, designed for 120/240V systems with a 10,000 AIC rating. Part of GE’s THQL series, this breaker features a plug-in (snap-in) design for easy installation in compatible GE load centers. It provides reliable overcurrent protection for high-power applications, including subpanels, HVAC systems, and heavy-duty electrical equipment.
Spec Sheet
Spec Sheet
Info
| Interrupting Capacity Rating | 10 kAIC |
| Trip Style | Non-Interchangeable |
| Frame Type | Q-Line |
| Amp | 80 A |
| Voltage |
120 Vac 120/240 Vac |
| Poles | 2 |
| Trip Function | LI |
| Continuous Current Rated | Standard |
| 120 Vac Interrupting Rating | 10 KAIC |
| 120/240 Vac Interrupting Rating | 10 KAIC |
| Suitable for Reverse Feed | Yes |
| Long Time | Fixed |
| Instantaneous | Fixed |
| Protective Relays | No |
| Current Metering | No |
| Special Markings | HACR |
| GSA Compliance | Yes |
Dimensions
| Depth | 3.00" |
| Height | 3.375" |
| Weight | .70 |
| Width | 2.00" |
