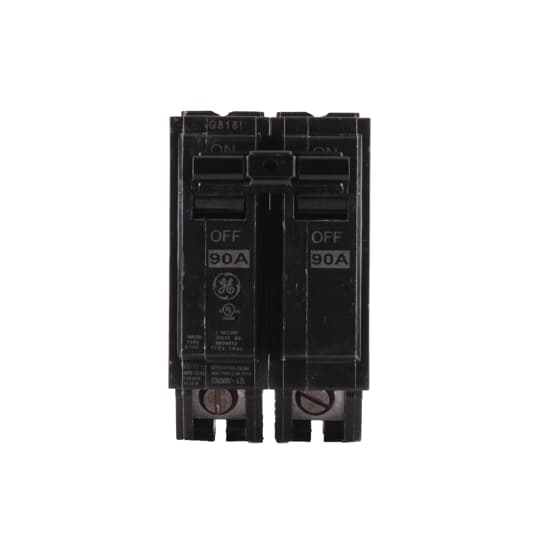

GE THQL2190 2 POLE 120/240V 10K IC 90 AMP
GE THQL2190 2 POLE 120/240V 10K IC 90 AMP
Regular price
$64.99
Regular price
Sale price
$64.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Two Pole 90A Breaker
The General Electric THQL2190 is a 2-Pole thermal magnetic molded case circuit breaker, designed for 240V AC systems with a current rating of 90A and an interrupting capacity of 10kAIC at 120V. It features a plug-in connection type for quick and secure installation in compatible GE load centers. Equipped with LI (long-time and instantaneous) trip functions, the THQL2190 ensures reliable overcurrent protection for subpanels, HVAC systems, and heavy-duty electrical loads.
Spec Sheet
Spec Sheet
Info
| Interrupting Capacity Rating | 10 kAIC |
| Trip Style | Non-Interchangeable |
| Frame Type | Q-Line |
| Amp | 90 A |
| Voltage |
120 Vac 120/240 Vac |
| Poles | 2 |
| Trip Function | LI |
| Continuous Current Rated | Standard |
| 120 Vac Interrupting Rating | 10 KAIC |
| 120/240 Vac Interrupting Rating | 10 KAIC |
| Suitable for Reverse Feed | Yes |
| Long Time | Fixed |
| Instantaneous | Fixed |
| Protective Relays | No |
| Current Metering | No |
| Special Markings | HACR |
| GSA Compliance | Yes |
Dimensions
| Depth | 3.00" |
| Height | 3.375" |
| Weight | .70 |
| Width | 2.00" |
