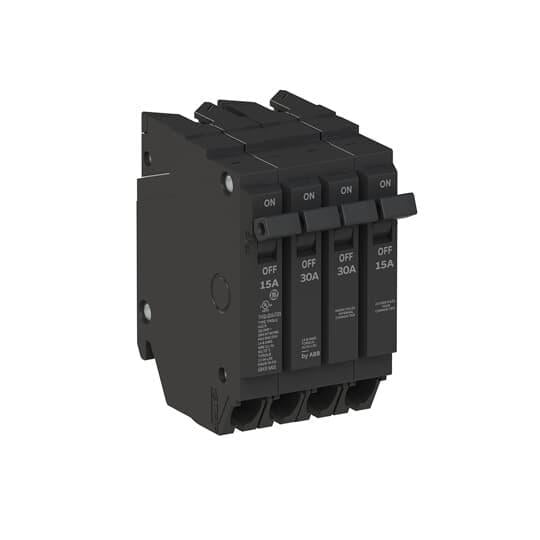

GE THQLQ153015 Quad 15A/30A 2P/15A 120/240V Circuit Breaker
GE THQLQ153015 Quad 15A/30A 2P/15A 120/240V Circuit Breaker
Regular price
$54.99
Regular price
Sale price
$54.99
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
GE THQLQ153015 Quad 15A/30A 2P/15A 120/240V Circuit Breaker
The GE THQLQ153015 is a quad 15A 1P / 30A 2P / 15A 1P Q-Line plug-in circuit breaker rated 120/240 V with a 10 kAIC interrupting rating. Tandems and quads give you more circuits in the same panel space.
- Amperage: 15-30-15 A
- Poles: 2-1p+1-2p
- Voltage: 120/240 V
- Interrupting capacity: 10 kAIC
- Q-Line frame, non-interchangeable trip style
- Suitable for reverse feed
Spec Sheets
Spec Sheet
Info
| Interrupting Capacity Rating | 10 kAIC |
| Voltage | 120/240 V |
| Trip Style | Non-Interchangeable |
| Frame Type | Q-Line |
| Amperage | 15-30-15 A |
| System Voltage | 120 Vac / 120/240 Vac |
| Poles | 2-1p+1-2p |
| Trip Function | LI |
| Continuous Current Rated | Standard |
| 120 Vac Interrupting Rating | 10 KAIC |
| 120/240 Vac Interrupting Rating | 10 KAIC |
| Suitable for Reverse Feed | Yes |
| Wire Range (Cu/Al) | (2) # 14-8 CU/ #12-8 AL |
| Long Time | Fixed |
| Instantaneous | Fixed |
| Protective Relays | No |
| Current Metering | No |
| Special Markings | HACR / SWD |
| UL File # | E11592 |
