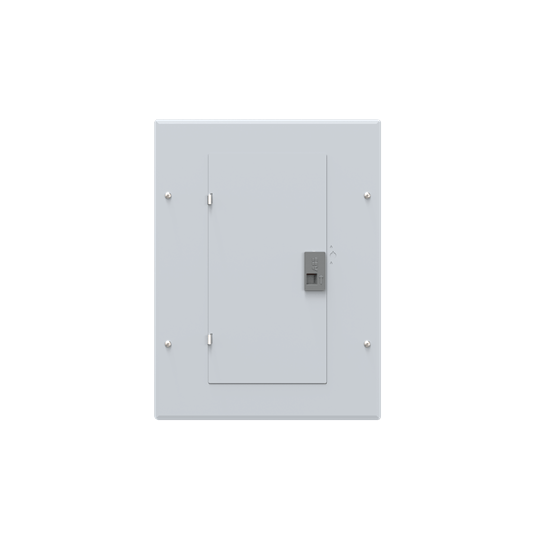

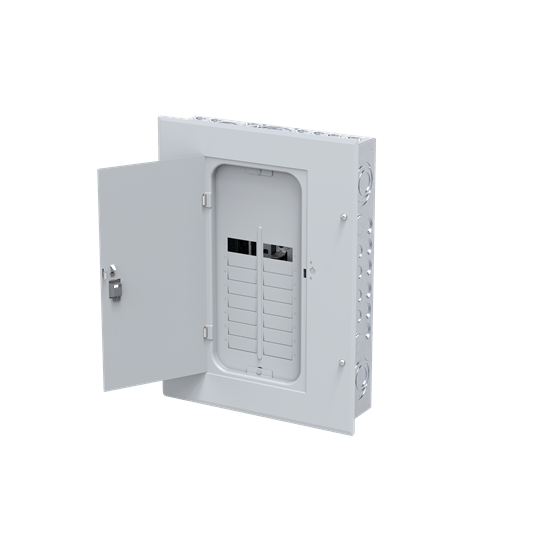

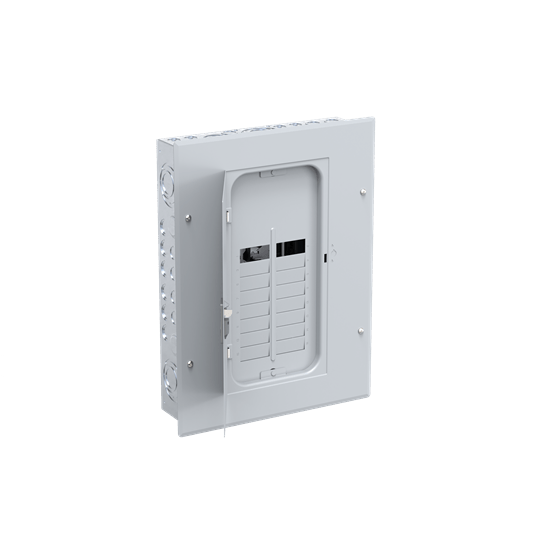

GE TLMQ1412CCU Load Center CONV 125A 14/28 CU N1 UL
GE TLMQ1412CCU Load Center CONV 125A 14/28 CU N1 UL
Regular price
$119.99
Regular price
Sale price
$119.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Load Center CONV 125A 14/28 CU N1 UL
ReliaHome T-Series convertible load centers arrive as main lug, but have the capability to have a main breaker installed. All ABB load centers are rated up to 60 degree/75 degree centrigrade and is suitable for use with service entrance equipment when installed in accordance with electrical code. The TLMQ1412CCU features space for 12, 1" breakers, a 125 A bus ampere rating, a copper bus, and a combination/flush enclosure.
Spec Sheet
Spec Sheet
Sell Sheet
Info
| # Branch Circuit <250A | 12 |
| 1" Space | 12 |
| 1/2" Space | 0 |
| Amperage | 125A |
| Circuit Breaker Style | Pigtail (non-PON) |
| Device type | Main Lug |
| Door | Yes |
| Enclosure | Indoor |
| Enclosure Type | Indoor, Combination |
| Factory Installed Ground Kit | Yes |
| Feed | Either |
| Input/Output Voltage | 120/240V ac |
| Interrupting Capacity Rating | 22 |
| Load Center Type | T-Series (non-PON) |
| Meter Socket Options: 200 Amp Main Breaker Installed | No |
| Meter Socket Options: High Amp Mode | None |
| NEMA Rating | NEMA 1 |
| Phase | 1 Phase |
| Service & Voltage | 1 Phase, 3 Wire, 120/240V ac |
| Wires | 3 Wire |
| UL/CUL Listing | UL |
Dimensions
| Depth | 3.70" |
| Height | 19.00" |
| Weight | 19.2LB |
| Width | 14.00" |
