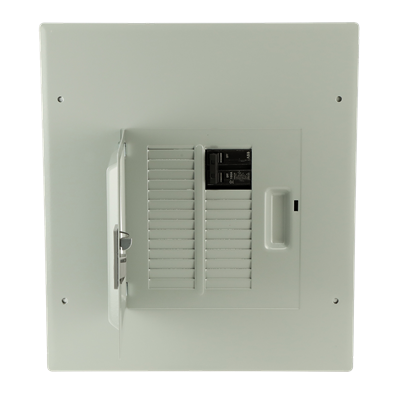

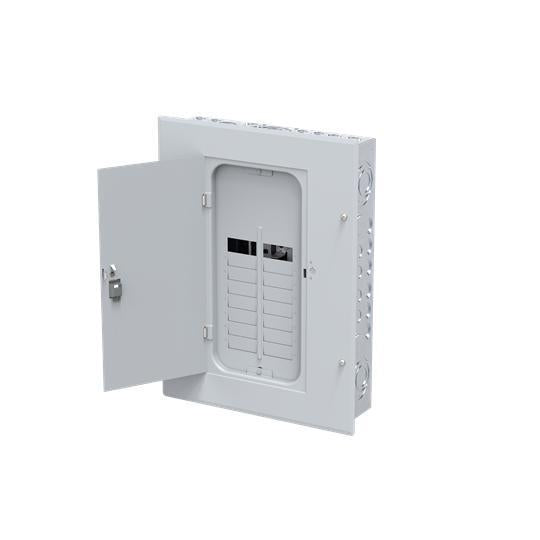

GE TMQ1210CCU 100A 12 Circuit Main Breaker Load Center 120/240V 22K AIC
GE TMQ1210CCU 100A 12 Circuit Main Breaker Load Center 120/240V 22K AIC
Regular price
$284.99
Regular price
Sale price
$284.99
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
GE TMQ1210CCU 100A 12 Circuit Main Breaker Load Center 120/240V 22K AIC
The GE TMQ1210CCU is a 100A main breaker, 12 circuit indoor combination load center rated 120/240V ac with a 22 kAIC interrupting rating.
- Amperage: 100A
- Device type: Main Breaker
- Input/Output Voltage: 120/240V ac
- Phase: 1 Phase
- Enclosure Type: Indoor, Combination
- NEMA Rating: NEMA 1
- 1 inch spaces: 12
- Interrupting capacity: 22 kAIC
Shipping: Orders over 225 lb ship at a quoted rate. Choose the "Over 225 lb" option at checkout and we will contact you with a shipping quote.
Spec Sheets
Spec Sheet
Info
| # Branch Circuit 250A | 12 |
| 1" Space | 12 |
| 1/2" Space | 0 |
| Amperage | 100A |
| Circuit Breaker Style | Pigtail (non-PON) |
| Device type | Main Breaker |
| Door | Yes |
| Enclosure | Indoor |
| Enclosure Type | Indoor, Combination |
| Factory Installed Ground Kit | YES |
| Feed | Either |
| Input/Output Voltage | 120/240V ac |
| Interrupting Capacity Rating | 22 |
| Load Center Type | T-Series (non-PON) |
| Meter Socket Options: 200 Amp Main Breaker Installed | No |
| Meter Socket Options: High Amp Mode | None |
| NEMA Rating | NEMA 1 |
| Phase | 1 Phase |
| Service & Voltage | 1 Phase, 3 Wire, 120/240V ac |
| Wires | 3 Wire |
| UL/CUL Listing | UL |
