MR11 Lamps

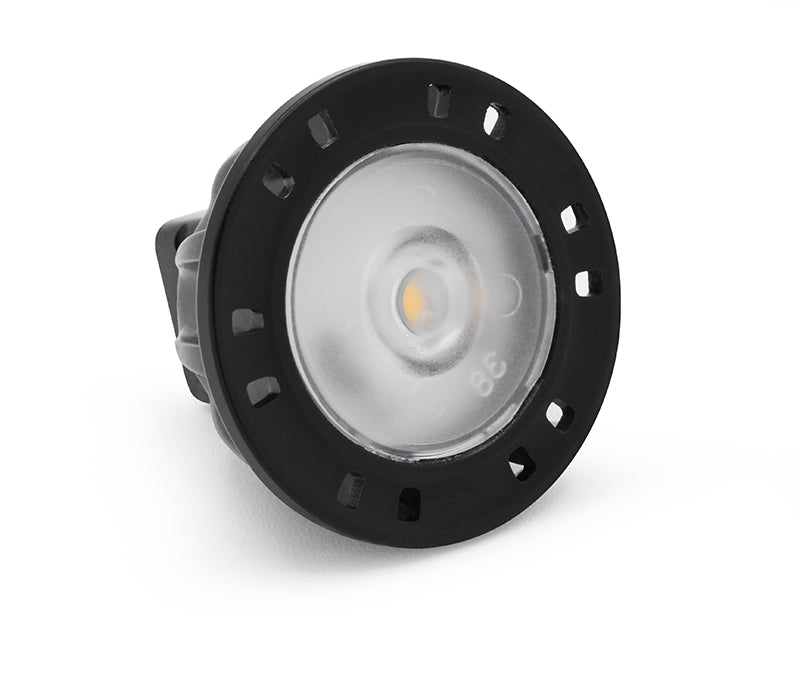

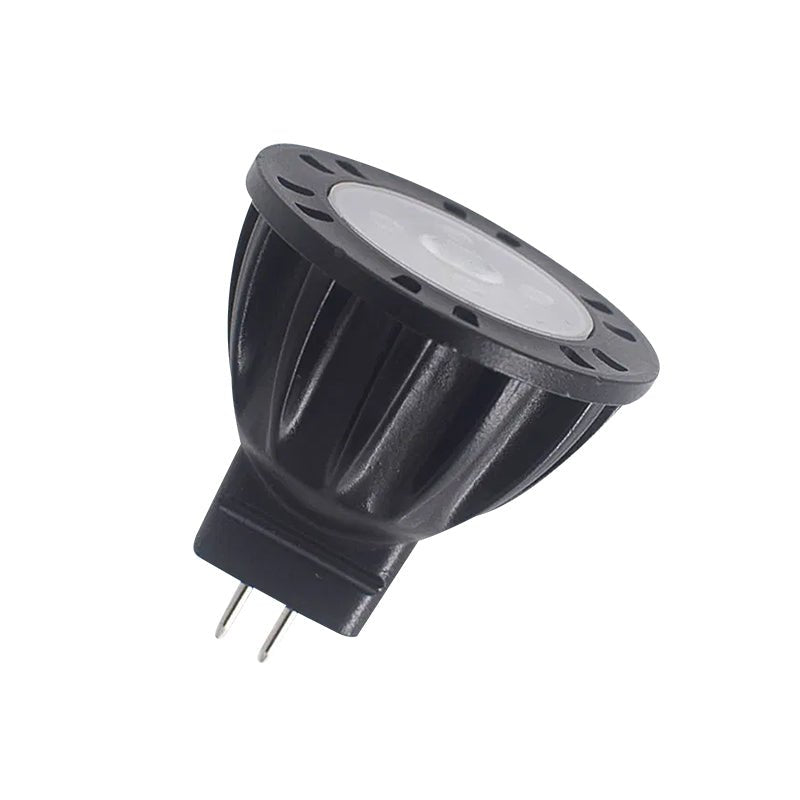

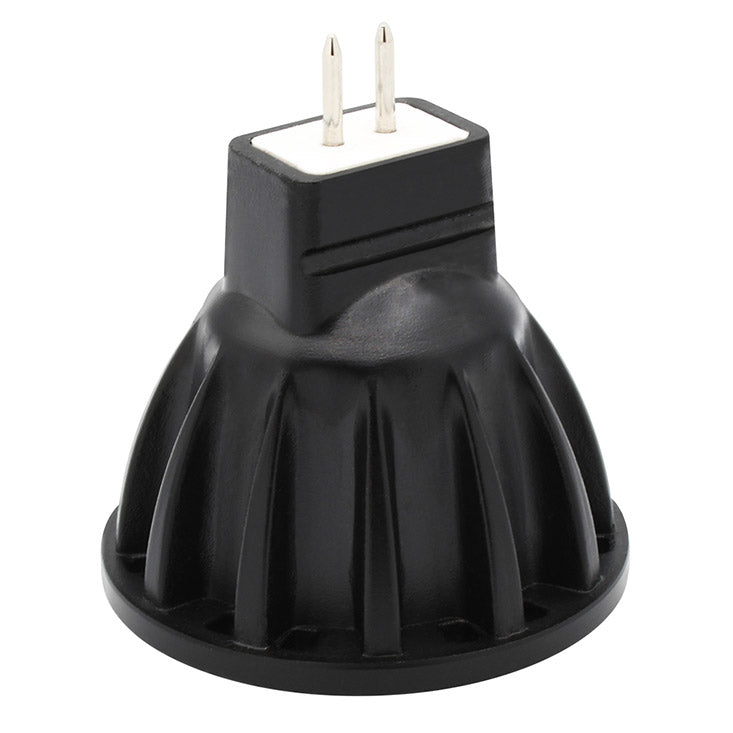

The Irradiar MR11 Lamps by GM Lighting are premium-grade, sealed LED lamps designed to deliver reliable and versatile illumination for outdoor lighting applications. Built for durability and weather resistance, these lamps feature a sealed IP65-rated design, providing protection against water intrusion for long-lasting performance in various environmental conditions. With multiple beam spreads, CCT options, color options and wattage variations, the MR11 lamps offer the flexibility to create a warm, ambient glow or a bright, focused beam, making them an excellent choice for customized outdoor lighting solutions.

38°/60°/120° beam options
2700K, 3000K, 4000K CCT options
Color: Amber, Blue, Green, Red
2.5W
50K life hours
Sealed IP65 rating

Spec Sheet

Lamp

CCT	38° Beam Spread	60° Beam Spread	120° Beam Spread
2700K	L1127K-02.5W038D	L1127K-02.5W060D	L1127K-02.5W0120D
3000K	L1130K-02.5W038D	L1130K-02.5W060D	L1130K-02.5W0120D
4000K	L1140K-02.5W038D	L1140K-02.5W060D	L1140K-02.5W0120D
Amber	L11AM-02.5W038D	L11AM-02.5W060D	N/A
Blue	L11BL-02.5W038D	L11BL-02.5W060D	N/A
Green	L11GR-02.5W038D	L11GR-02.5W060D	N/A
Red	L11RD-02.5W038D	L11RD-02.5W060D	N/A

Power Supply

Product Number	Wattage	Voltage
ILS-S075A-SS	75W	120Vin, 12/15V out
ILS-S100C-PC	100W	120Vin, 12/15V out
ILS-S150B-SS	150W	120Vin, 12/13/14/15V out
ILS-S300B-SS	300W	120Vin, 12/13/14/15/17/18/22V out
ILS-S600B-SS	600W (2X300W)	120Vin, 12/13/14/15/17/18/22V out
