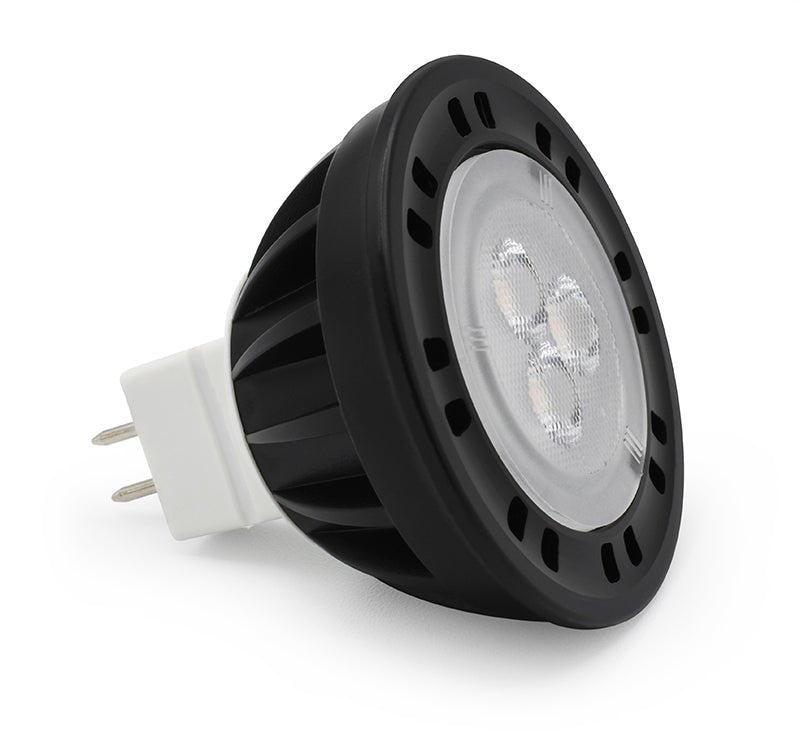

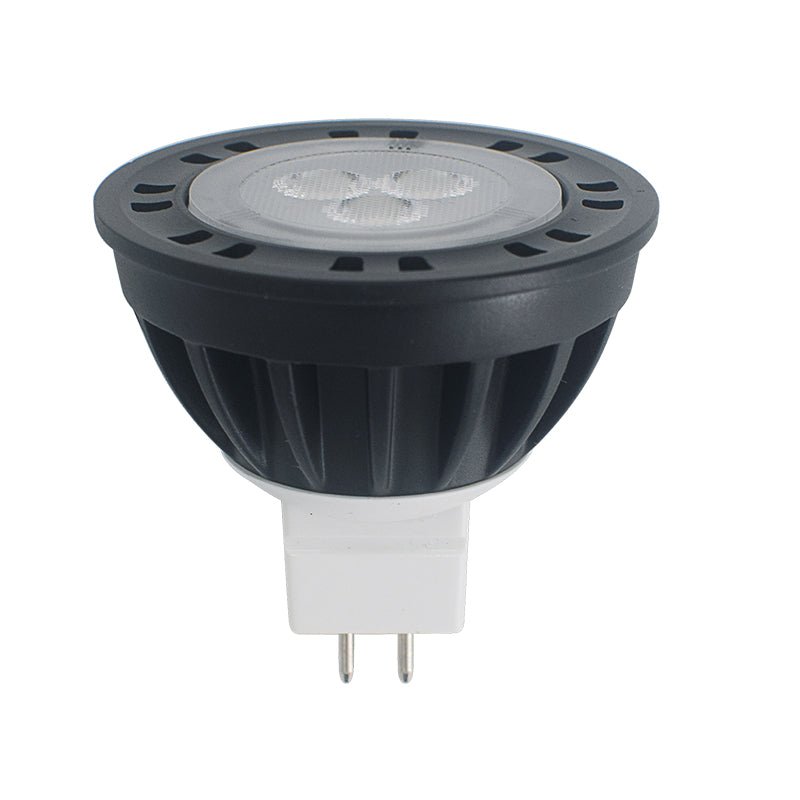

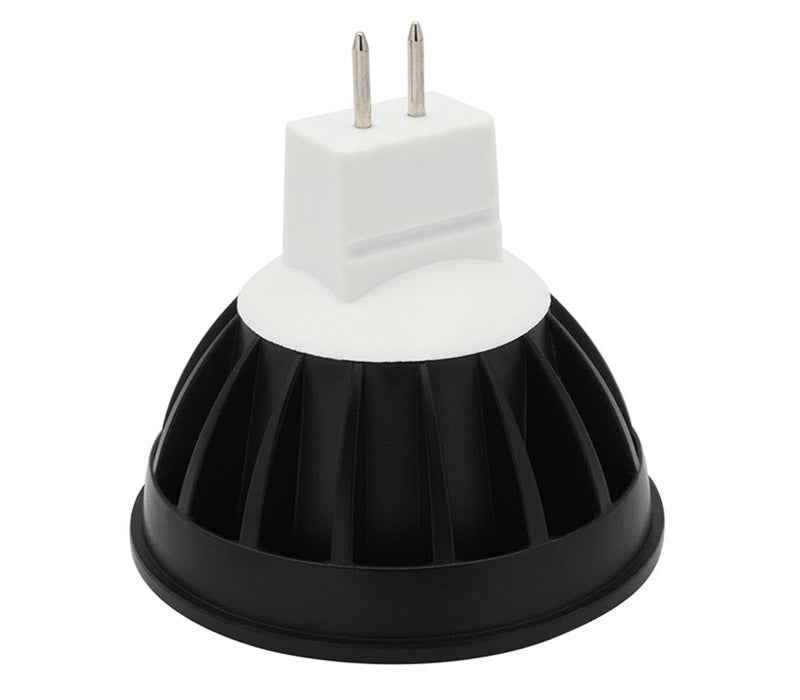

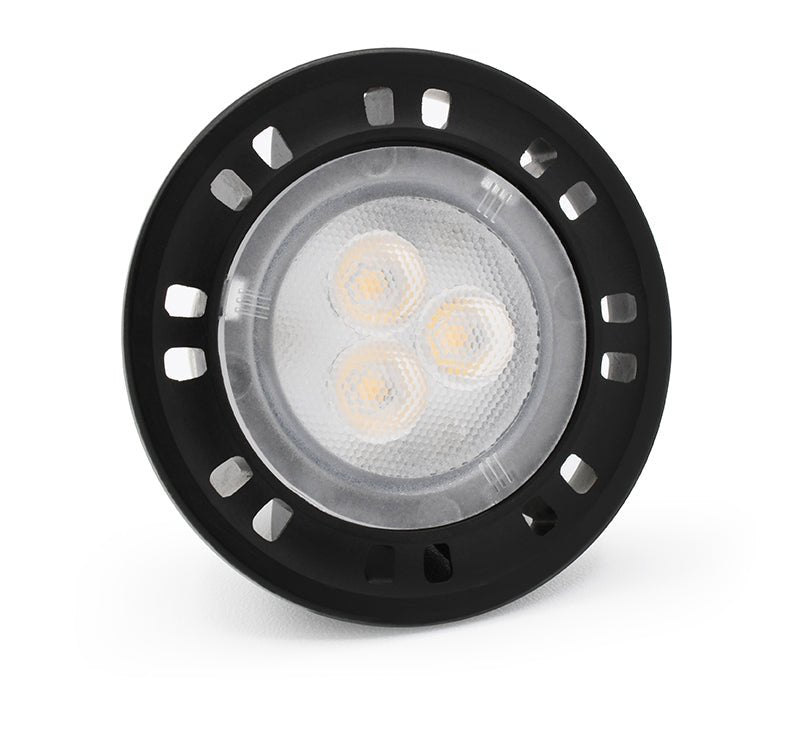

MR16 Lamps

The Irradiar MR16 Lamps by GM Lighting are premium-grade, sealed LED lamps designed to deliver reliable and versatile illumination for outdoor lighting applications. Built for durability and weather resistance, these lamps feature a sealed IP65-rated design, providing protection against water intrusion for long-lasting performance in various environmental conditions. With multiple beam spreads, CCT options, color options and wattage variations, the MR16 lamps offer the flexibility to create a warm, ambient glow or a bright, focused beam, making them an excellent choice for customized outdoor lighting solutions

15°/30°/45°/60°/100° beam options
2700K, 3000K, 4000K CCT options
Color: Amber, Blue, Green, Red
3/5/7W options
50K life hours
Sealed IP65 rating

Spec Sheet

Lamp

3W	27K	30K	40K
15°	L1627K-03W015D	L1630K-03W015D	L1640K-03W015D
30°	L1627K-03W030D	L1630K-03W030D	L1640K-03W030D
45°	L1627K-03W045D	L1630K-03W045D	L1640K-03W045D
60°	L1627K-03W060D	L1630K-03W060D	L1640K-03W060D
100°	L1627K-03W100D	L1630K-03W100D	L1640K-03W100D

5W	27K	30K	40K
15°	L1627K-05W015D	L1630K-05W015D	L1640K-05W015D
30°	L1627K-05W030D	L1630K-05W030D	L1640K-05W030D
45°	L1627K-05W045D	L1630K-05W045D	L1640K-05W045D
60°	L1627K-05W060D	L1630K-05W060D	L1640K-05W060D
100°	L1627K-05W100D	L1630K-05W100D	L1640K-05W100D

7W	27K	30K	40K
15°	L1627K-07W015D	L1630K-07W015D	L1640K-07W015D
30°	L1627K-07W030D	L1630K-07W030D	L1640K-07W030D
45°	L1627K-07W045D	L1630K-07W045D	L1640K-07W045D
60°	L1627K-07W060D	L1630K-07W060D	L1640K-07W060D
100°	L1627K-07W100D	L1630K-07W100D	L1640K-07W100D

Power Supplies

Product Number	Wattage	Voltage
ILS-S075A-SS	75W	120Vin, 12/15V out
ILS-S100C-PC	100W	120Vin, 12/15V out
ILS-S150B-SS	150W	120Vin, 12/13/14/15V out
ILS-S300B-SS	300W	120Vin, 12/13/14/15/17/18/22V out
ILS-S600B-SS	600W (2X300W)	120Vin, 12/13/14/15/17/18/22V out
