• GML-CHDL-EXT5GM Lighting CHDL 4"-6" Tunable Downlight Accessories
1 1

GM Lighting

GM Lighting CHDL 4"-6" Tunable Downlight Accessories

GM Lighting CHDL 4"-6" Tunable Downlight Accessories

$7.20
$7.20
Sale Sold out
Shipping calculated at checkout.
Material

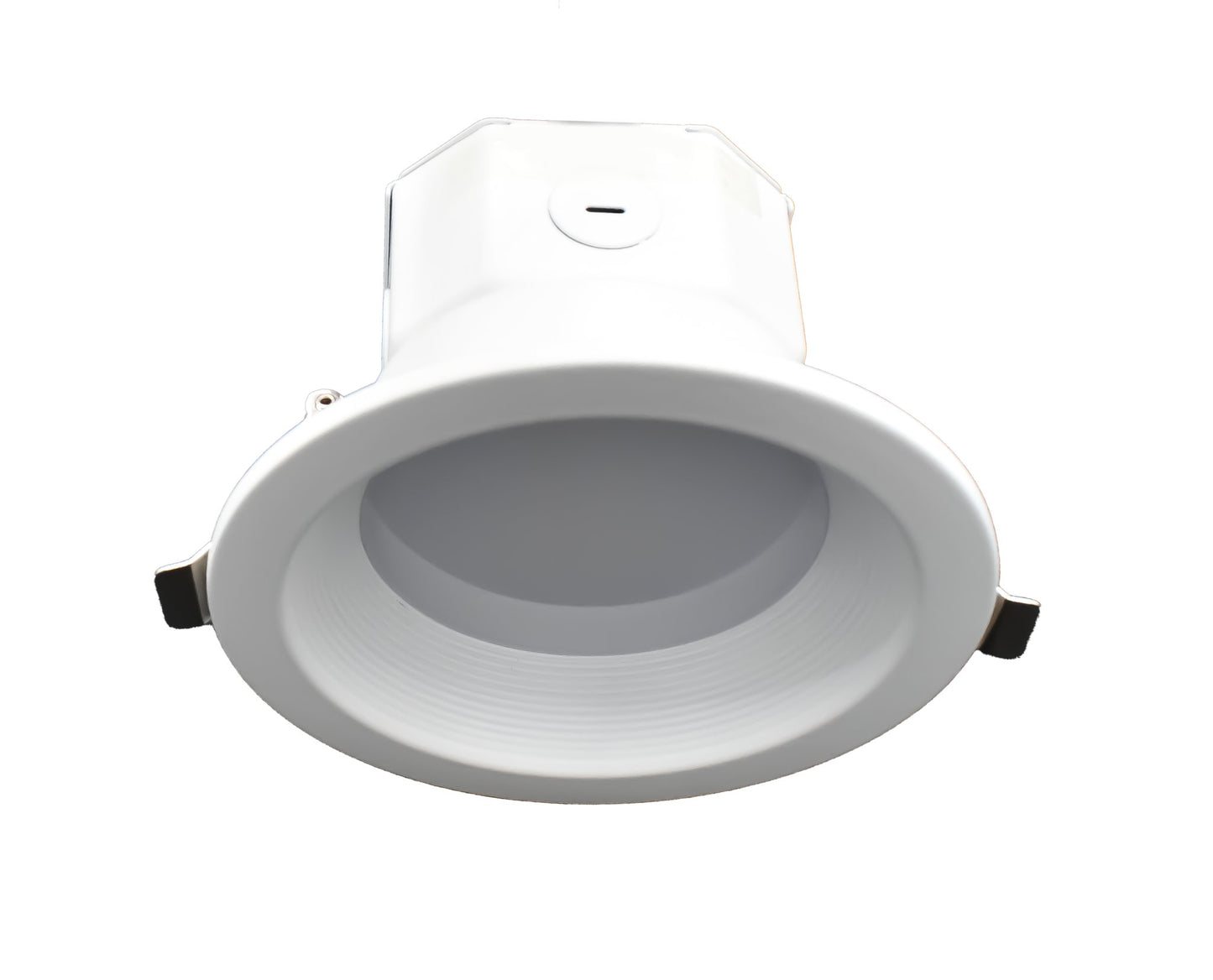

ChromaDim 24VDC Tunable Downlight



The ChromaDim downlight is an easy to install recessed mount luminaire with regressed baffle and an integral junction box. Wiring can be done either with included quick-connect cables or hard-wired leads. These 4” and 6” slim mount, regressed downlights feature superior optics along with Energy Star rating in a streamlined, shallow mount design.



  • Available in 4” and 6” aperture
  • 10W (4”) and 15W (6”)
  • Dimmable
  • 100° beam angle
  • Adjustable color temp. from 2400K to 5000K
  • Tunable with ChromaDim Lighting System
  • Built-in J Box for easy installation
  • Quick connect or hard wiring options
  • 90+ CRI
  • 600lm (4”) and 1000lm (6”)
  • White finish
  • ETL certification for wet location
  • Energy Star
    Spec Sheets

    Spec Sheet

    Installation Instructions

    Universal Mounting Plate Instructions

    ChromaDim Catalog

    Info
    Catalog No. Description
    CHDL-EXT5 5’ Quick connect cord for ChromaDim Downlights
    CHDL-EXT10 10’ Quick connect cord for ChromaDim Downlights
    CHDL-EXT20 20’ Quick connect cord for ChromaDim Downlights
    CHDL-EXTPF20 20’ Quick connect power feed for ChromaDim Downlights

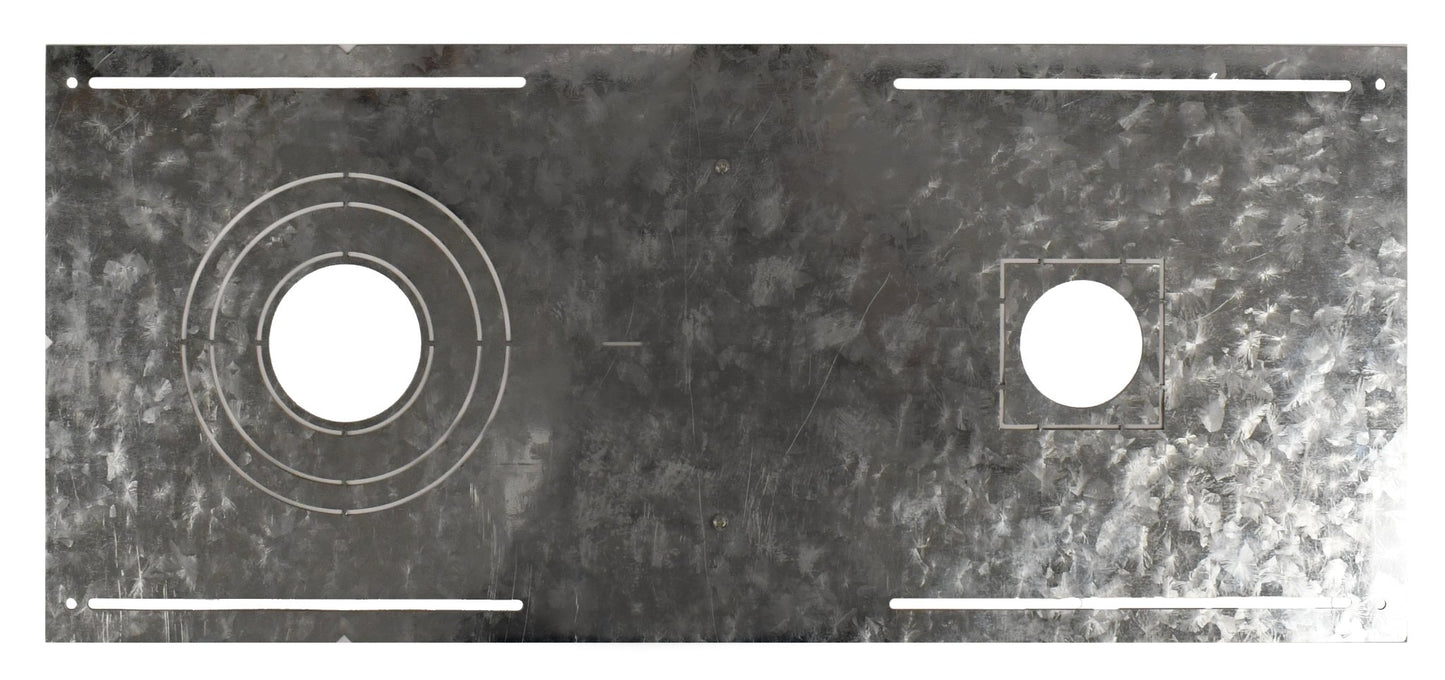

    CHDL-UNV-NCP New construction plate for ChromaDim Downlights
    Catalog No. Description
    CHDL-4-WH 24V 10W 4" Tunable White LED Downlight, White
    CHDL-6-WH 24V 15W  6" Tunable White LED Downlight, White
     Dimensions
    Size (In.) Width (In.) Height (In.) Cutout (In.)
    4" 5.79" 3.75" 4.75"
    6" 7.42"
    		 3.75" 5.75"



    Additional Info



    Controller/Driver

    LTR-S-TUN-SYS Tunable White CCT Lighting System; Wall Controller and Driver
    LTR-S-TUN-24V-90W 90W 24V Tunable White Driver; Driver Only
