GM Lighting CHDL 4"/6" Tunable Downlights

$26.75

Sale Sold out

Shipping calculated at checkout.

Size 4" 6"

Color Temperature Selectable CCT

Quantity

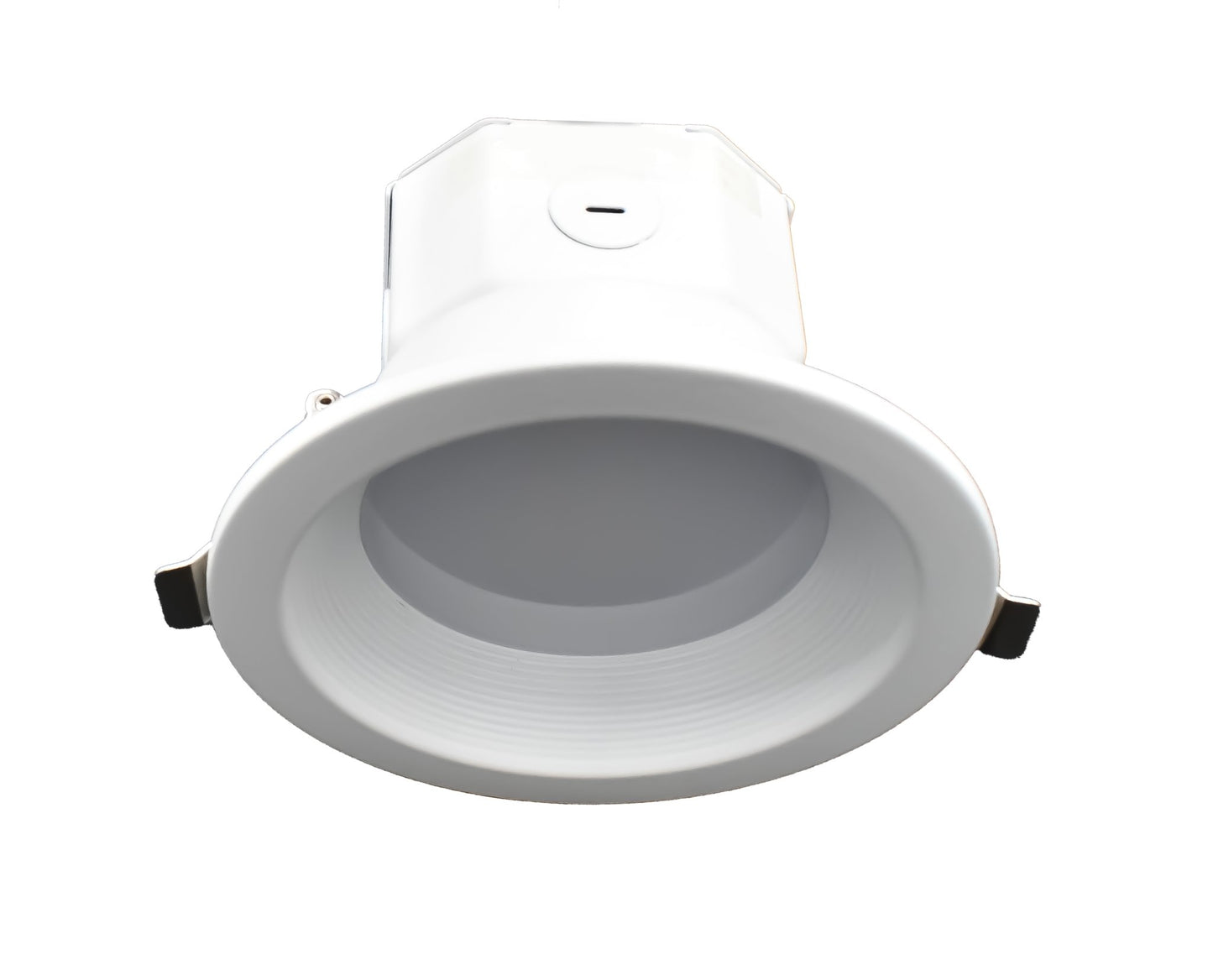

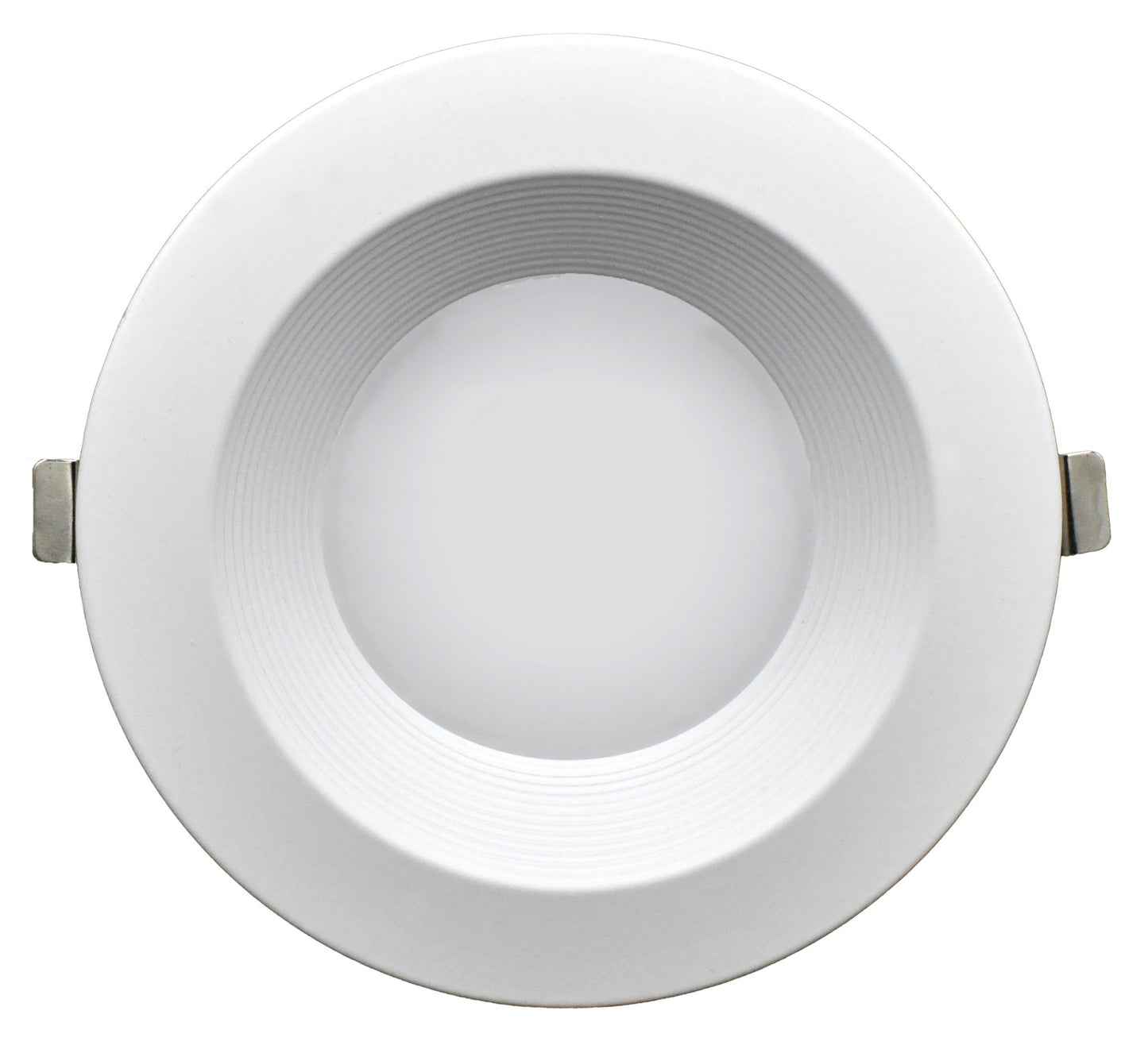

ChromaDim 24VDC Tunable Downlight

The ChromaDim downlight is an easy to install recessed mount luminaire with regressed baffle and an integral junction box. Wiring can be done either with included quick-connect cables or hard-wired leads. These 4” and 6” slim mount, regressed downlights feature superior optics along with Energy Star rating in a streamlined, shallow mount design.

Available in 4” and 6” aperture
10W (4”) and 15W (6”)
Dimmable
100° beam angle
Adjustable color temp. from 2400K to 5000K
Tunable with ChromaDim Lighting System
Built-in J Box for easy installation
Quick connect or hard wiring options
90+ CRI
600lm (4”) and 1000lm (6”)
White finish
ETL certification for wet location
Energy Star

Spec Sheets

Spec Sheet

Installation Instructions

Universal Mounting Plate Instructions

ChromaDim Catalog

Info

Catalog No.	Description
CHDL-4-WH	24V 10W 4" Tunable White LED Downlight, White
CHDL-6-WH	24V 15W 6" Tunable White LED Downlight, White

Dimensions

Size (In.)	Width (In.)	Height (In.)	Cutout (In.)
4"	5.79"	3.75"	4.75"
6"	7.42"	3.75"	5.75"

Additional Info

Wattage	10W/15W
Lumen	600/1000
Mounting	Recessed Mount
CRI	90+
Beam Angle	100°
Volt	24 VDC
Color Temp.	24K-50K
Construction	All high-grade aluminum for superior heat dissipation

Accessories

Catalog No.	Description
CHDL-EXT5	5’ Quick connect cord for ChromaDim Downlights
CHDL-EXT10	10’ Quick connect cord for ChromaDim Downlights
CHDL-EXT20	20’ Quick connect cord for ChromaDim Downlights
CHDL-EXTPF20	20’ Quick connect power feed for ChromaDim Downlights
CHDL-UNV-NCP	New construction plate for ChromaDim Downlights
