• GML-CHPL-WGM Lighting CHPL 3W 3" Puck Lights Selectable CCT
  • GML-CHPL-BGM Lighting CHPL 3W 3" Puck Lights Selectable CCT
  • GML-CHPL-BGM Lighting CHPL 3W 3" Puck Lights Selectable CCT
1 3

GM Lighting

GM Lighting CHPL 3W 3" Puck Lights Selectable CCT

GM Lighting CHPL 3W 3" Puck Lights Selectable CCT

$46.80
$49.99 $46.80
Sale Sold out
Shipping calculated at checkout.
Size
Color
Color Temperature

ChromaDim 24VDC 3W Tunable Puck Light

A surface or recess mount 24VDC, 3W High Power Tunable LED puck that is available in white, black, bronze or brushed nickel. All highgrade aluminum for superior heat dissipation. Frosted lens delivers even light distribution. The puck can be tunable and dimmable via ChromaDim Lighting System

  • 24VDC
  • 3.0W
  • Tunable with ChromaDim Lighting System
  • Adjust color temp. from 2400K to 5000K
  • 225lm in 3500K
  • 90+ CRI

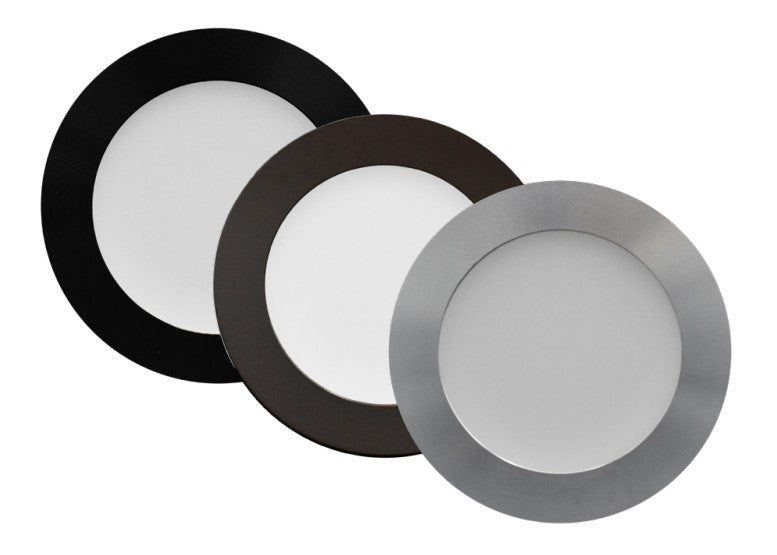

  • Multiple finishes: white, black, bronze, brushed nickel
  • 112° beam angle
  • Dimmable

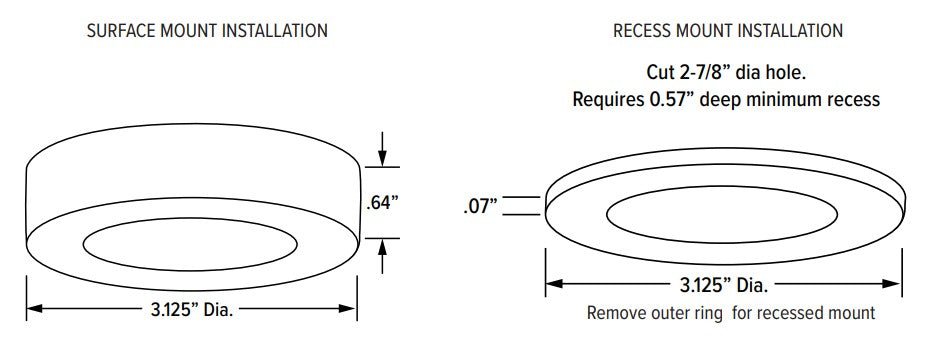

  • Surface or recess mount
  • 5 year warranty when used with GM power supplies
  • Ambient Operating Temperature: -4°F to 113°F
  • ETL
Spec Sheets

Spec Sheet

Installation Instructions




Info
Catalog No. Description

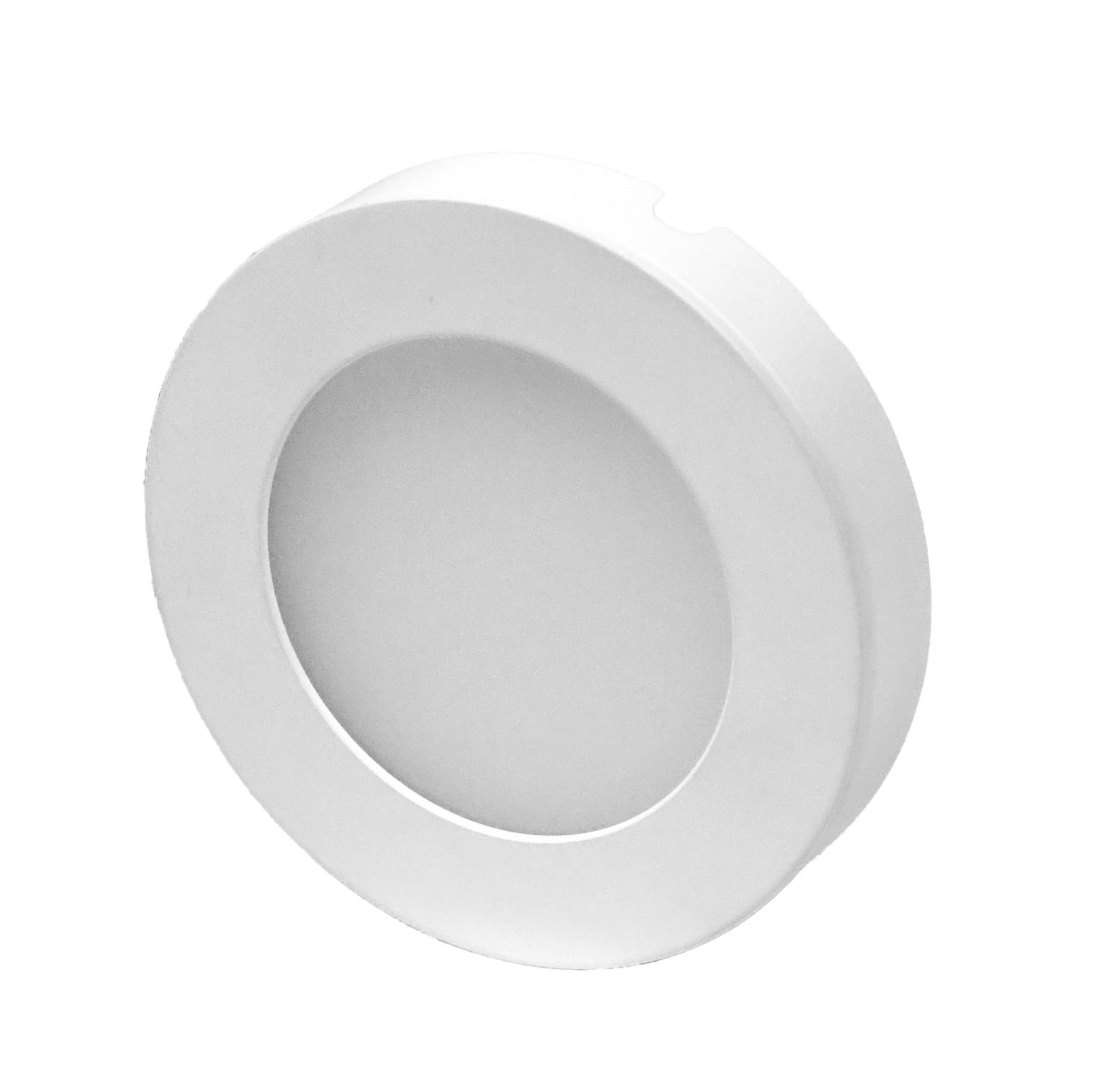

CHPL-WH 24V 3W Tunable White LED Puck Light, White

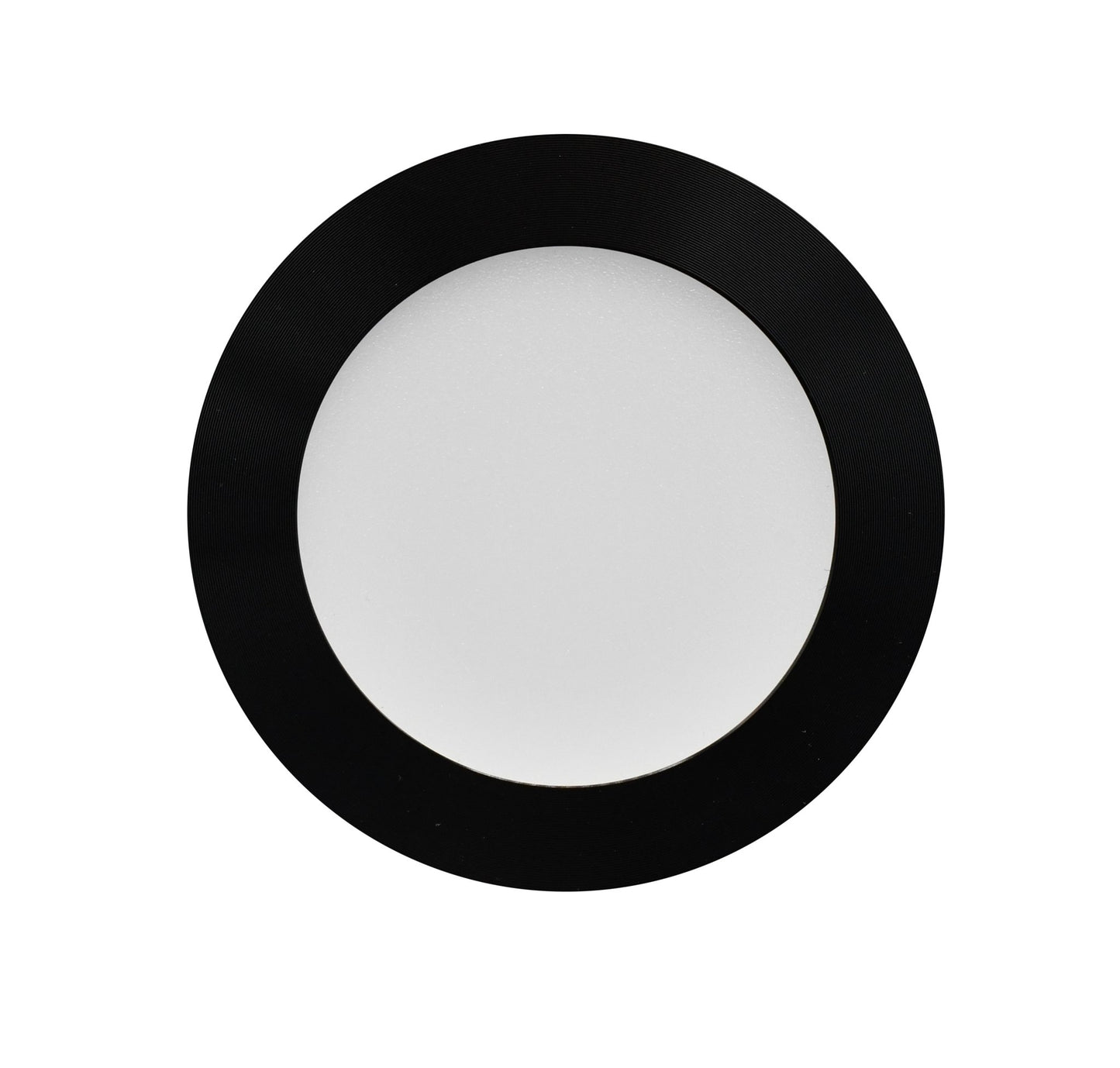

CHPL-B 24V 3W Tunable White LED Puck Light, Black

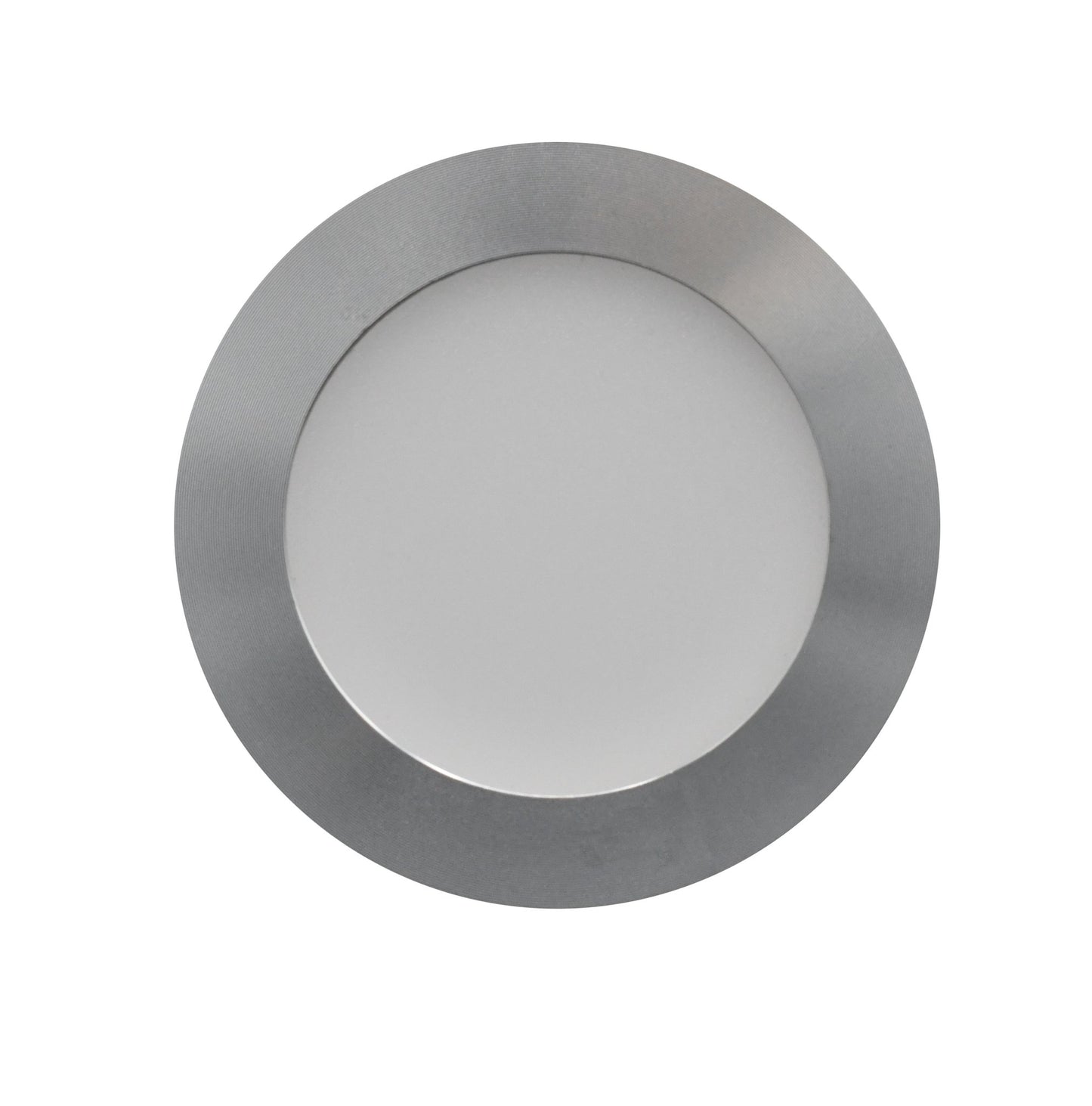

CHPL-BN 24V 3W Tunable White LED Puck Light, Brushed Nickel

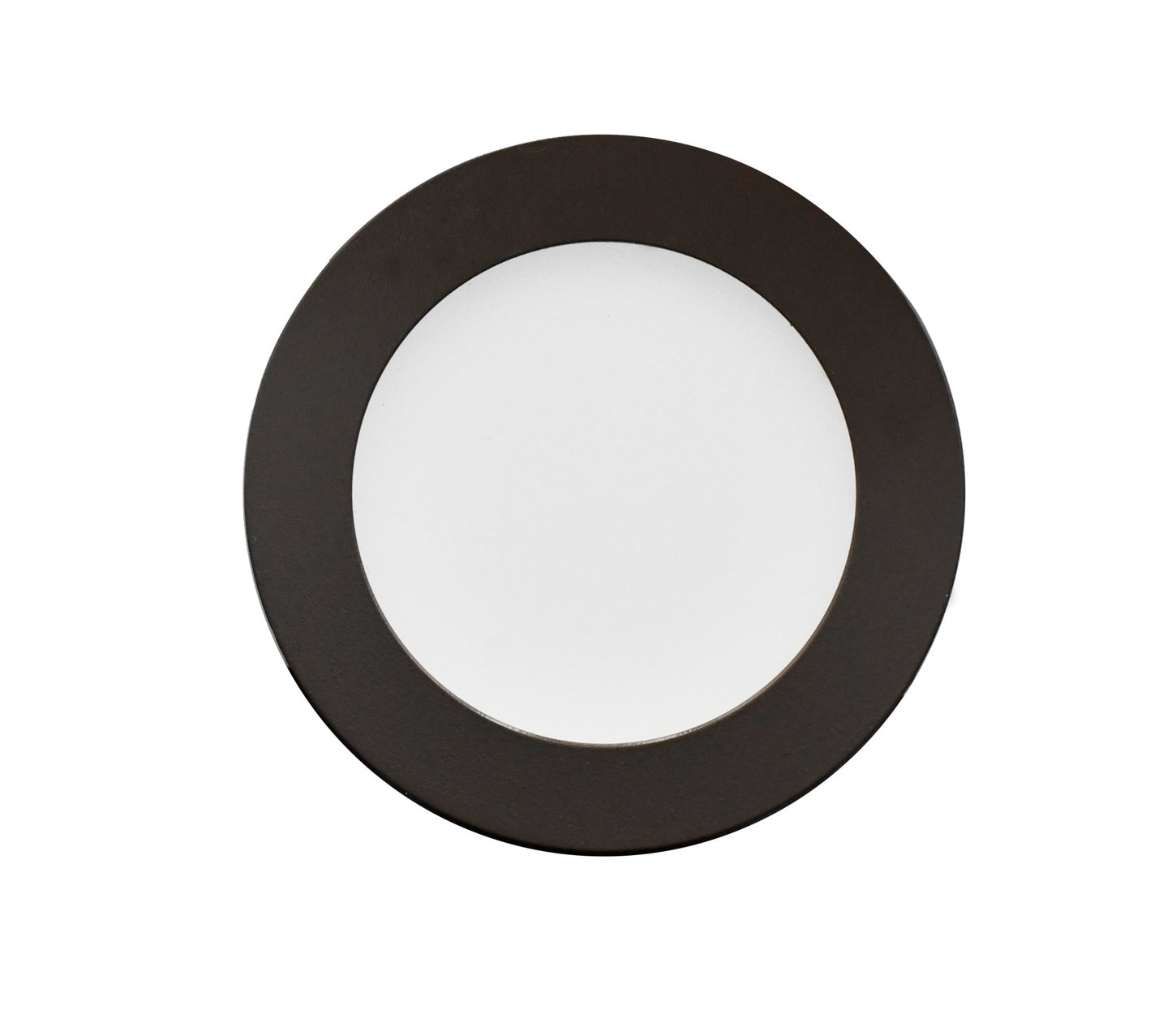

CHPL-BZ 24V 3W Tunable White LED Puck Light, Bronze


Additional Info
Wattage 3W
Mounting Surface or Recessed Mount
CRI 90+
Beam Angle  112°
Volt 24 VDC
Color Temp. 24K-50K
Construction All high-grade aluminum for superior heat dissipation

Controller

Catalog No. Description
LTR-S-TUN-SYS Tunable White CCT Lighting System; Wall Controller and 96W Driver
LTR-S-TUN-SW Wall Switch Only
LTR-S-TUN-24V-90W 90W 24V Tunable White Driver; Driver Only
LTR-S-TUN-24V-180W 180W 24V Tunable White Driver; Driver Only




      View full details
