ChromaDim Tunable White Lighting Control System
ChromaDim Tunable White & Dimming System offers a single switch and driver eliminating redundant components and compatibility issues for superior performance. Enjoy smooth and soft color tunning by customizing your tunable white installation. Device pairing takes place automatically when the light is first switched on.

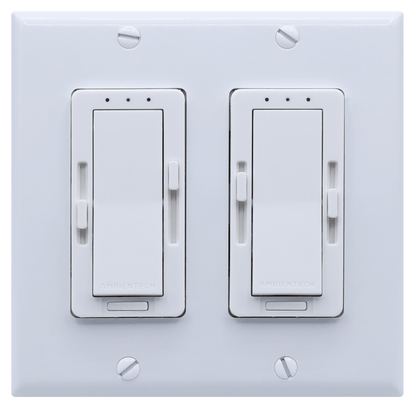

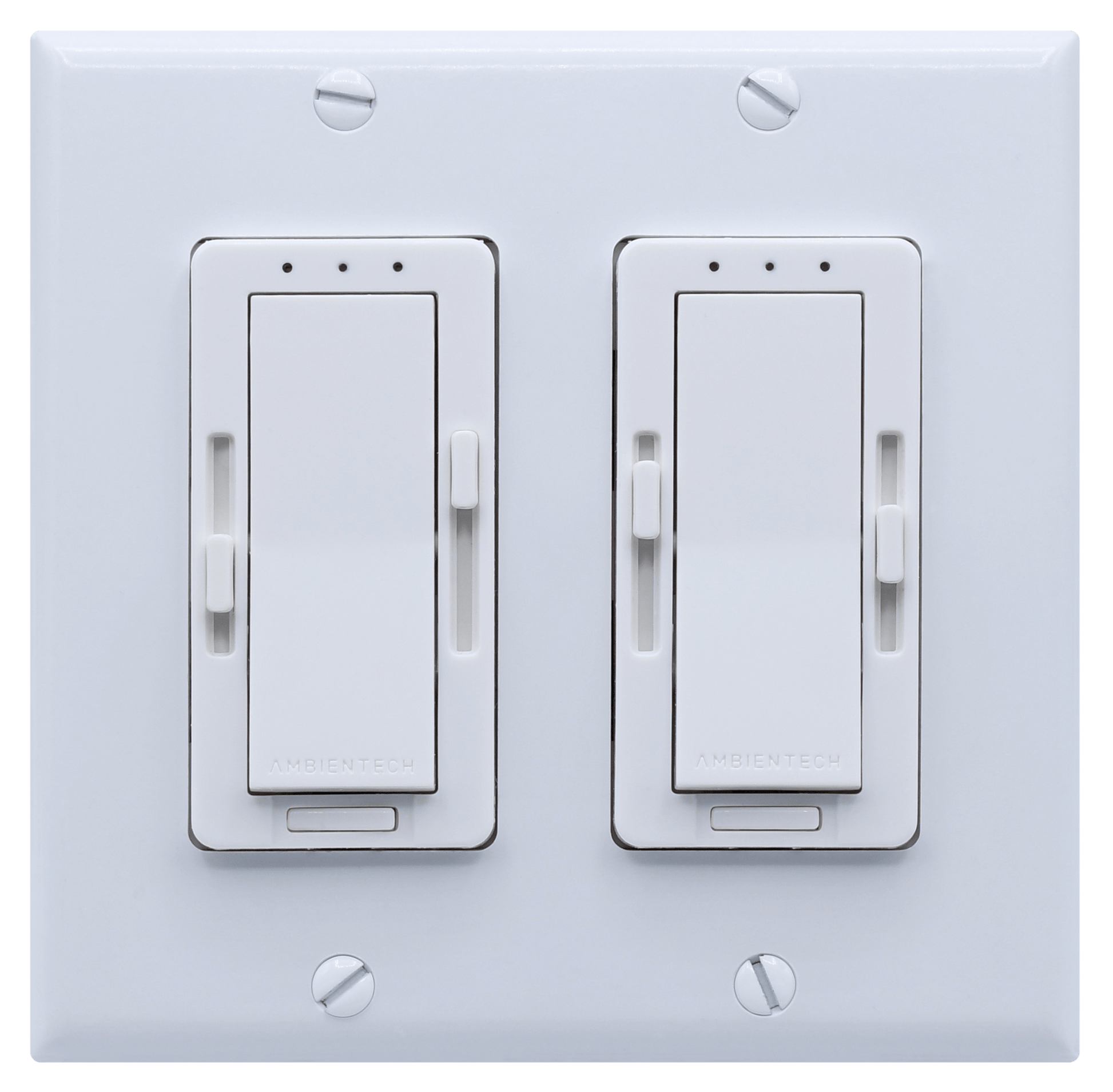

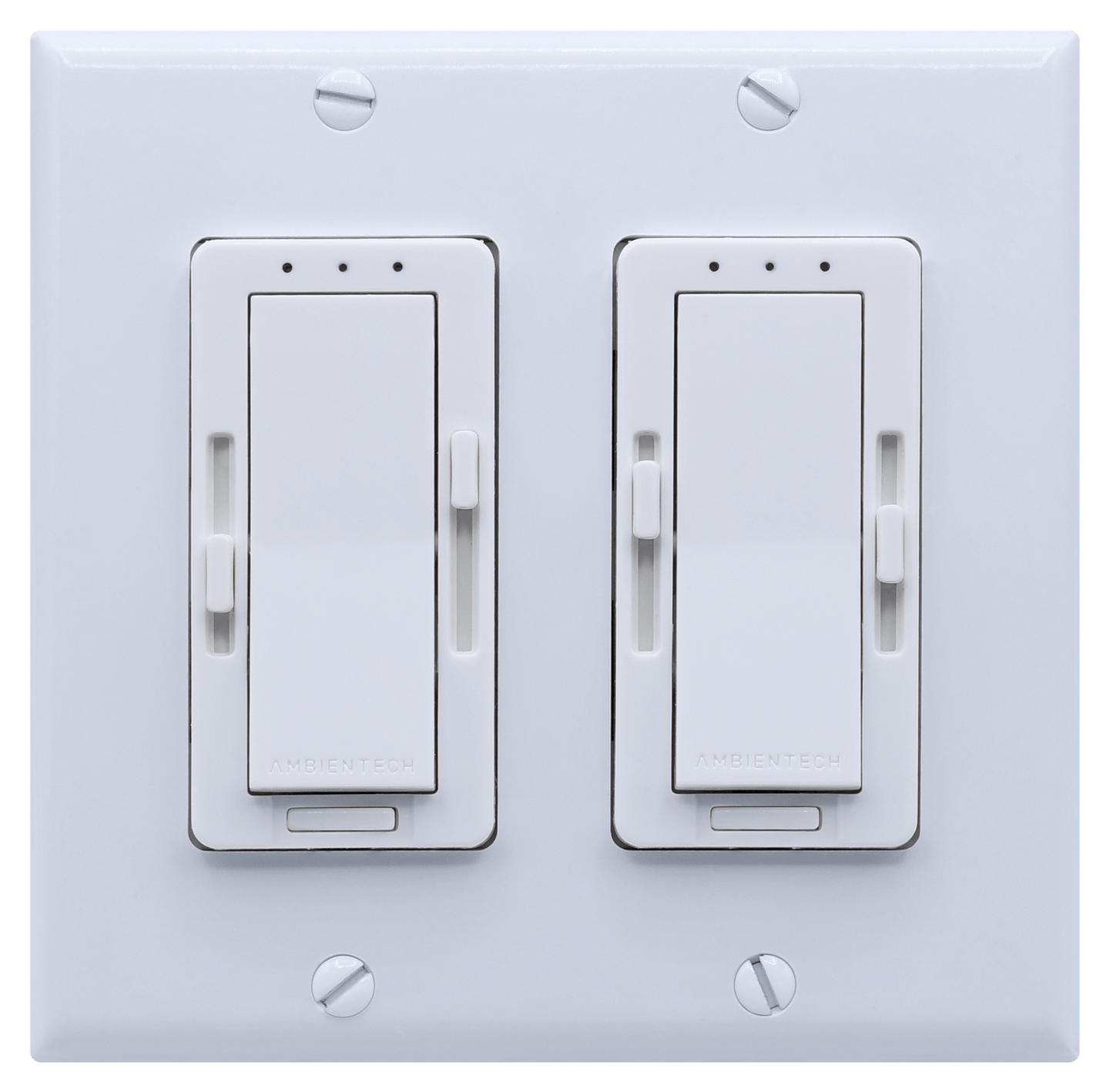

- Tunable White Wall Controller and Driver
- 120VAC Wall Switch with no Battery Required
- Works with Tunable White tape, puck lights, downlights
- Simple Installation w/ Automatic Pairing
- Flicker-Free Soft Dimming
- Compliant to IEEE and Title 24 Requirements
- A Single Wall Switch Can Control Multiple LED Drivers (6)
- UL Listed
Model | Description |
---|---|

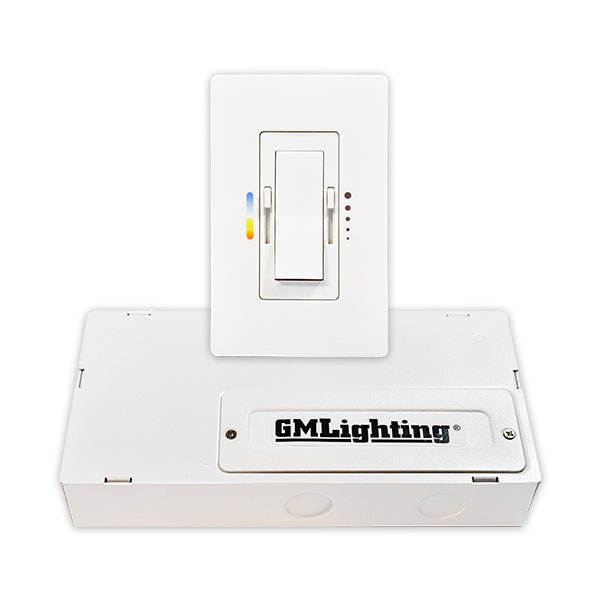

LTR-S-TUN-SYS | Tunable White CCT Lighting System; Wall Switch and 90W Driver |
LTR-S-TUN-SW | 24V ChromaDim Tunable White Wall Switch Only |
LTR-S-TUN-24V-90W | 90W 24V Tunable White Driver; Driver Only |
Spec Sheets
Spec Sheet
Installation Instructions
ChromaDim Catalog

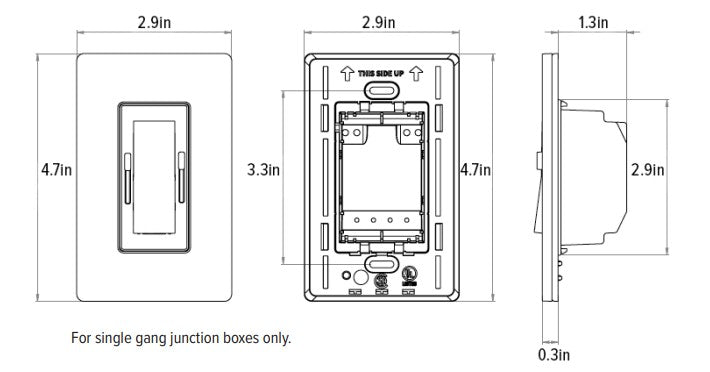

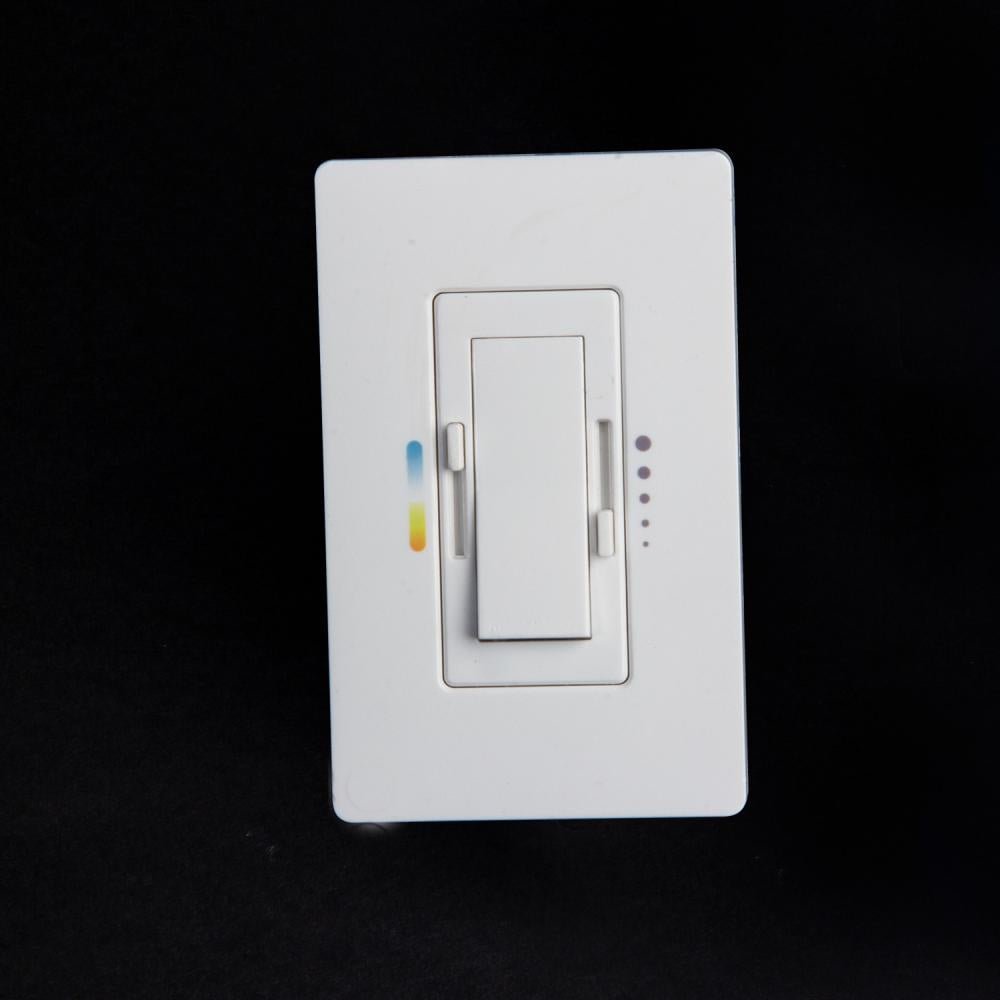

Switch Info
Volt | 120V |
Max Wattage | 600W |
Dimming | 100% - 0.1% dimming range |
Dimming Curve |
Logarithmic Dimming Curve |
Listing | UL listed to CSA, UL standards |
Location | Dry, Damp only |

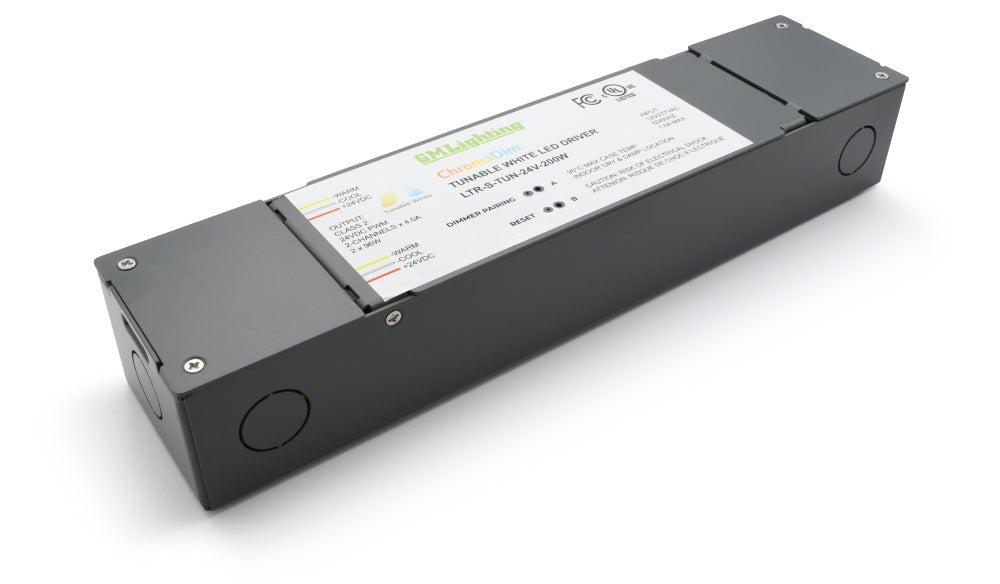

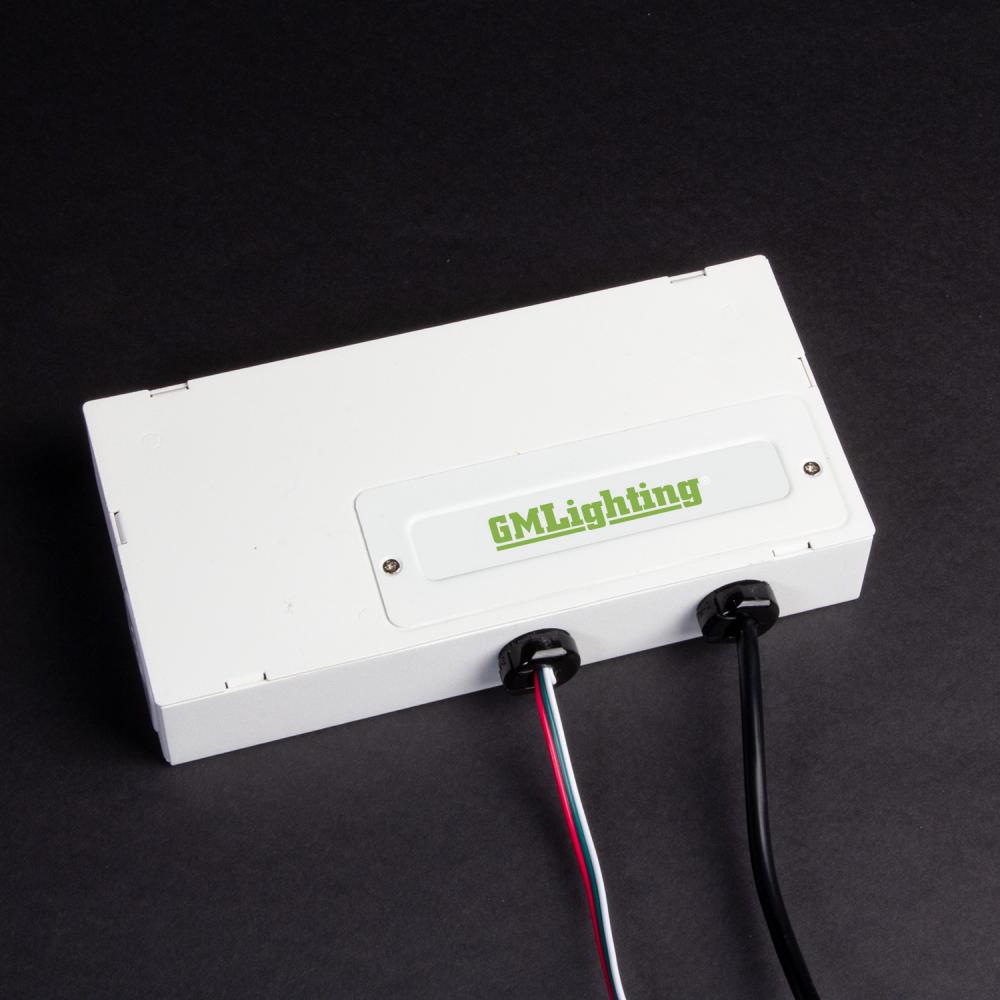

90W Driver Info
Volt | 24VDC |
Max Wattage | 90W |
Amp |
3.75A rated current |
Max Load | 89% efficiency (max load) |
Listing | UL listed to CSA, UL standards |
Location | Dry, Damp only, Class 2, IP23 |
Housing | White powder coated steel enclosure |
