• GML-LD-XD-UNV20-12GM Lighting LD-XD-UNV LineDRIVE 12VDC Multi Dim LED Power Supplies
1 1

GM Lighting

GM Lighting LD-XD-UNV LineDRIVE 12VDC Multi Dim LED Power Supplies

GM Lighting LD-XD-UNV LineDRIVE 12VDC Multi Dim LED Power Supplies

$56.25
$56.25
Sale Sold out
Shipping calculated at checkout.
Volt
Wattage

LineDRIVE XD 12VDC Multi-Dimmable LED Power Supplies



Multi-Dim LineDRIVE power supplies offer stable operation with standard line voltage and low voltage dimmer controls to make installation easy. Compatible with Triac, ELV, MLV and 0-10V dimmers for a wide array of applications. Dimming down to 1%.



  • Output: Class 2, 24VDC, constant voltage
  • Input: 120V / 277V
  • Dimmable: Triac, ELV, MLV, 0-10V, PWM dimming
  • Minimum dimming: 1%
  • Stable operation, flicker-free dimming
  • Compatible with typical phase dimmers and 0-10V controls
  • Integrated wiring compartments with separate line voltage
    and low voltage sectionst
  • Line voltage compartment meets NEC code,
    up to (3) 12 AWG conductors
  • Over-current, over-voltage and over-temperature protection
        Spec Sheet

        12V Spec Sheet

        Installation Instructions

        LineDrive ED/XD Crossover

        Info
        Catalog No. Watts Description Dimensions
        LD-XD-UNV20-12 20W 12VDC – 120V or 277V – 50/60Hz – Class 2 – Auto Reset 7.93″L x 3.36″W x 1.33″H

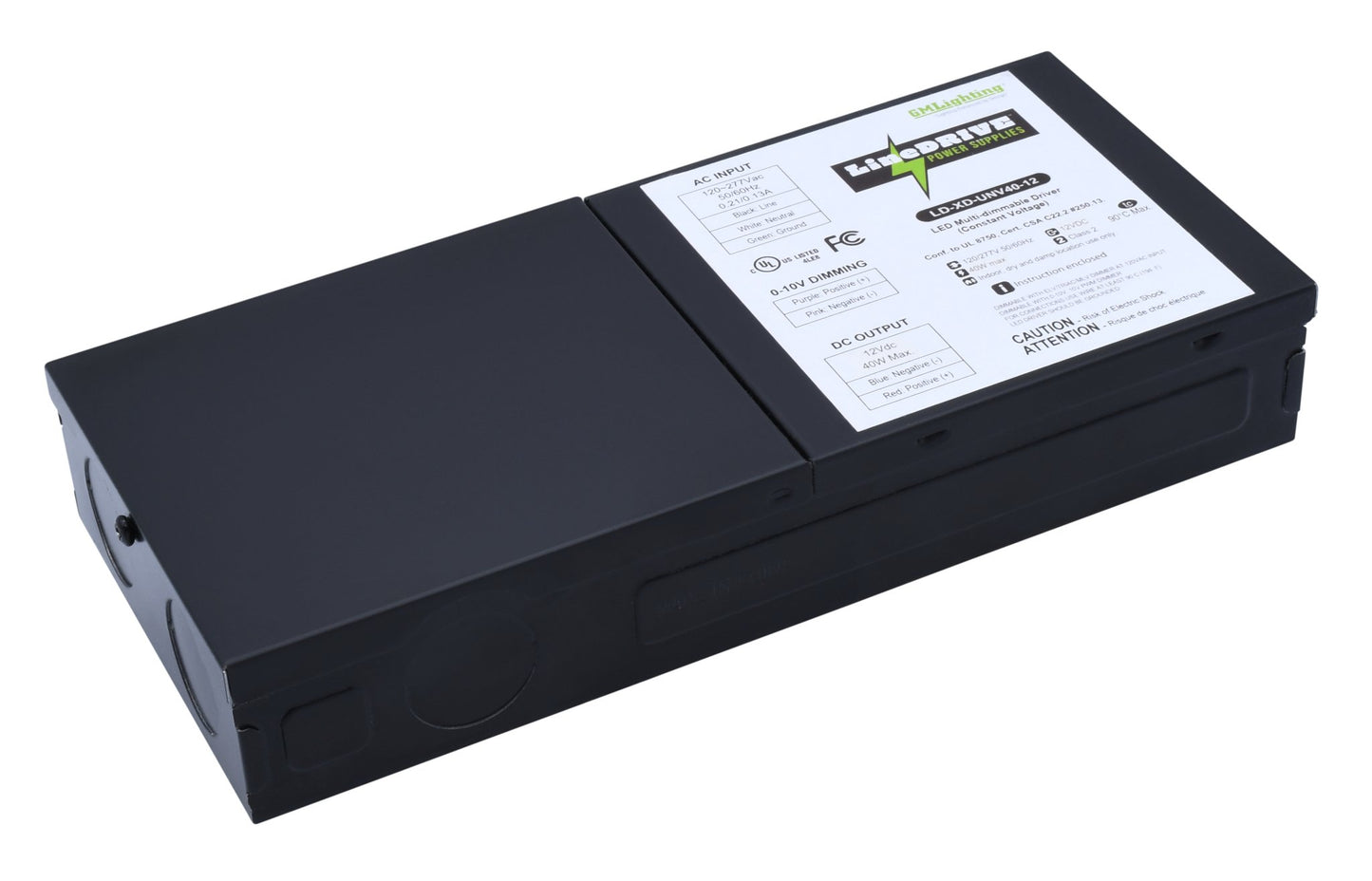

        LD-XD-UNV40-12 40W 12VDC – 120V or 277V – 50/60Hz – Class 2 – Auto Reset 7.93″L x 3.36″W x 1.33″H

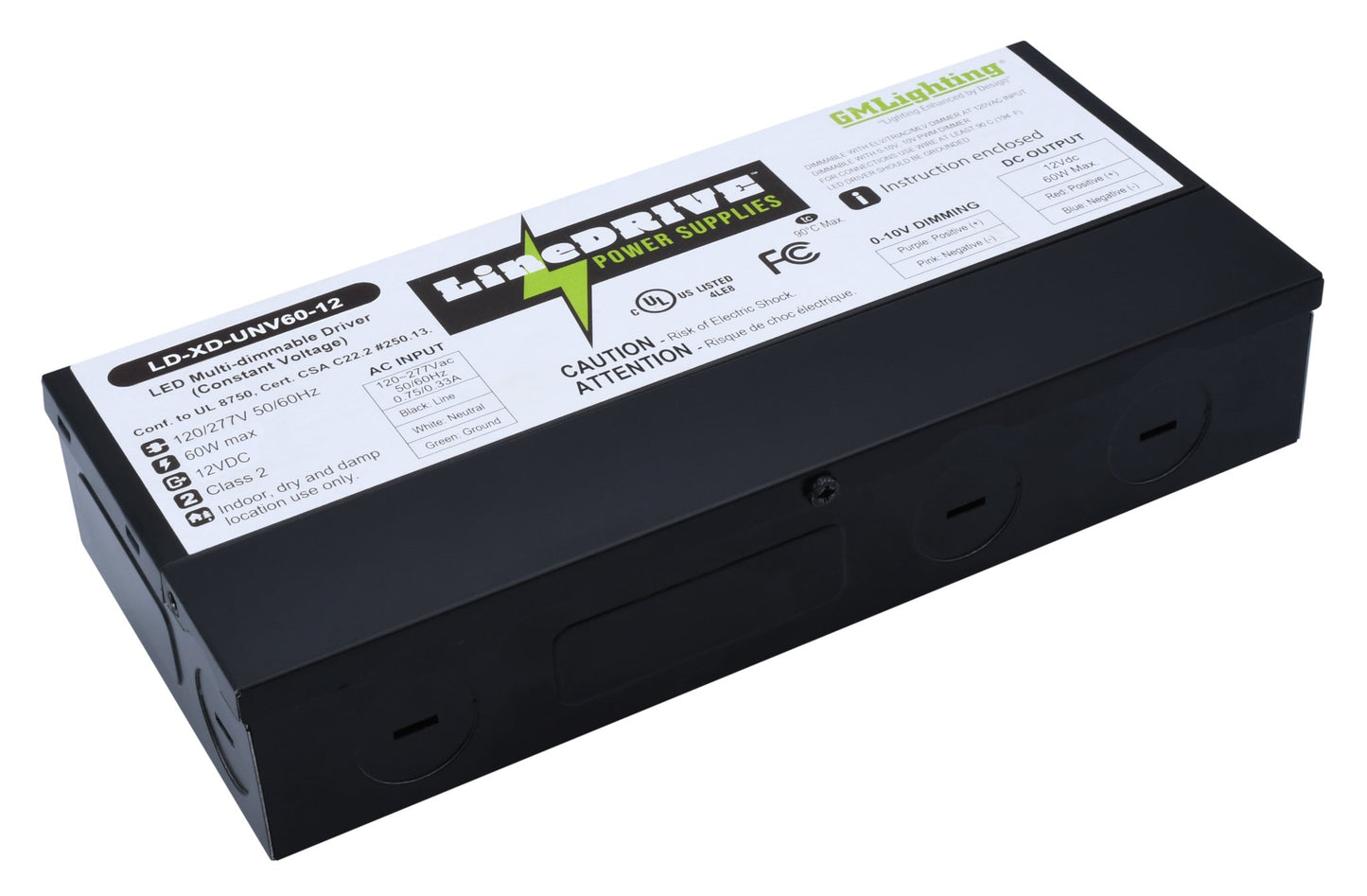

        LD-XD-UNV60-12 60W 12VDC – 120V or 277V – 50/60Hz – Class 2 – Auto Reset 8.29″L x 4.10″W x 1.59″H

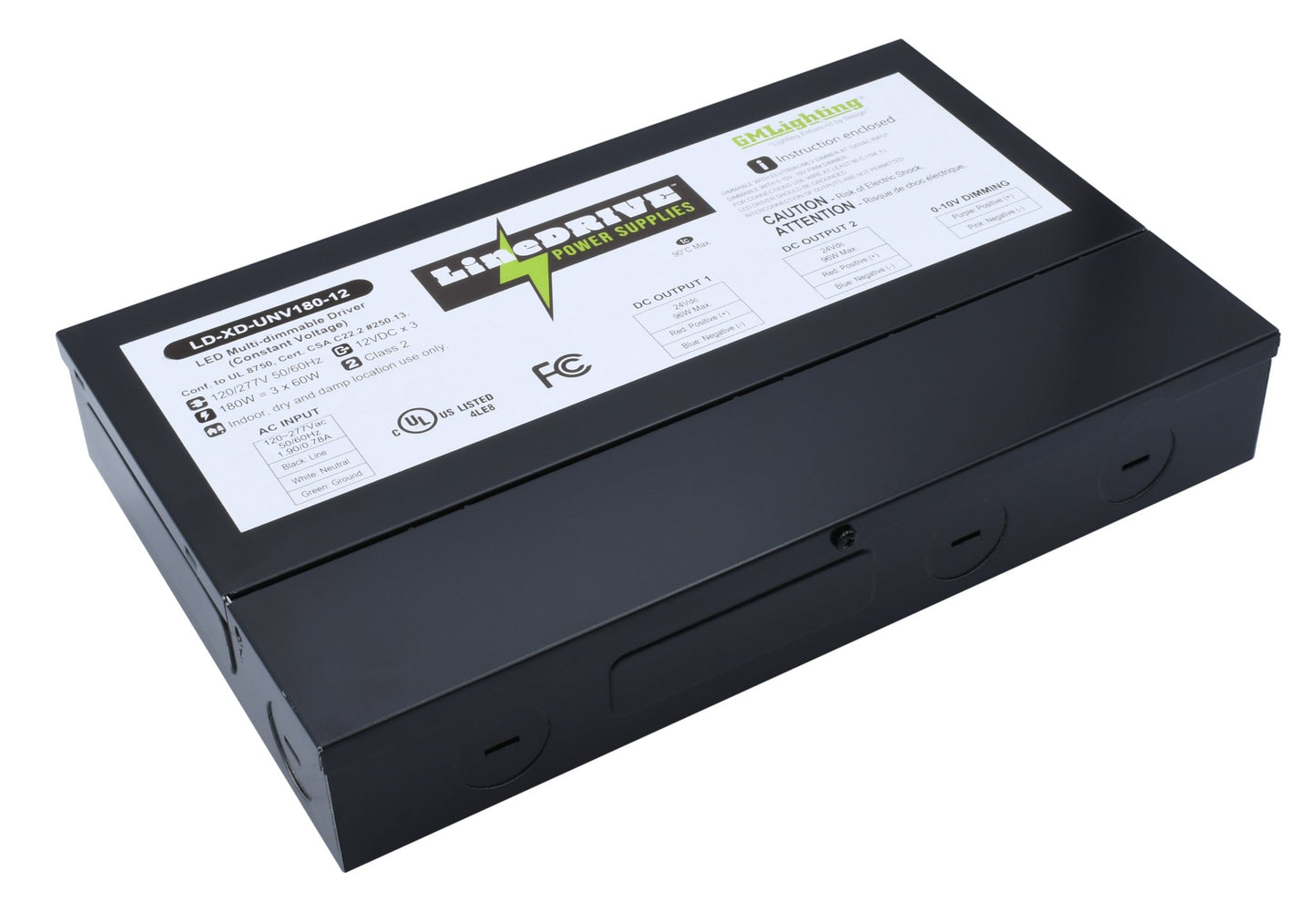

        LD-XD-UNV180-12 180W 12VDC – 120V or 277V – 50/60Hz – Class 2 – Auto Reset – (3) x 60W channels – Class 2 9.51″L x 6.35″W x 1.59″H




        View full details
