GM Lighting LD-XD-UNV LineDRIVE 24VDC Multi Dim LED Power Supplies

$56.25

Sale Sold out

Shipping calculated at checkout.

Volt 24V

Wattage 20W 40W 60W 96W 192W 288W

Quantity

LineDRIVE XD 24VDC Multi-Dimmable LED Power Supplies

Multi-Dim LineDRIVE power supplies offer stable operation with standard line voltage and low voltage dimmer controls to make installation easy. Compatible with Triac, ELV, MLV and 0-10V dimmers for a wide array of applications. Dimming down to 1%.

Output: Class 2, 24VDC, constant voltage
Input: 120V / 277V
Dimmable: Triac, ELV, MLV, 0-10V, PWM dimming
Minimum dimming: 1%
Stable operation, flicker-free dimming
Compatible with typical phase dimmers and 0-10V controls
Integrated wiring compartments with separate line voltage
and low voltage sectionst
Line voltage compartment meets NEC code,
up to (3) 12 AWG conductors
Over-current, over-voltage and over-temperature protection

Spec Sheet

24V 20-96W Spec Sheet

24V 200-300W Spec Sheet

Installation Instructions

LineDrive ED/XD Crossover

Info

Catalog No.	Watts	Description	Dimensions
LD-XD-UNV20-24	20W	24VDC – 120V or 277V – 50/60Hz – Class 2 – Auto Reset	7.93″L x 3.36″W x 1.33″H

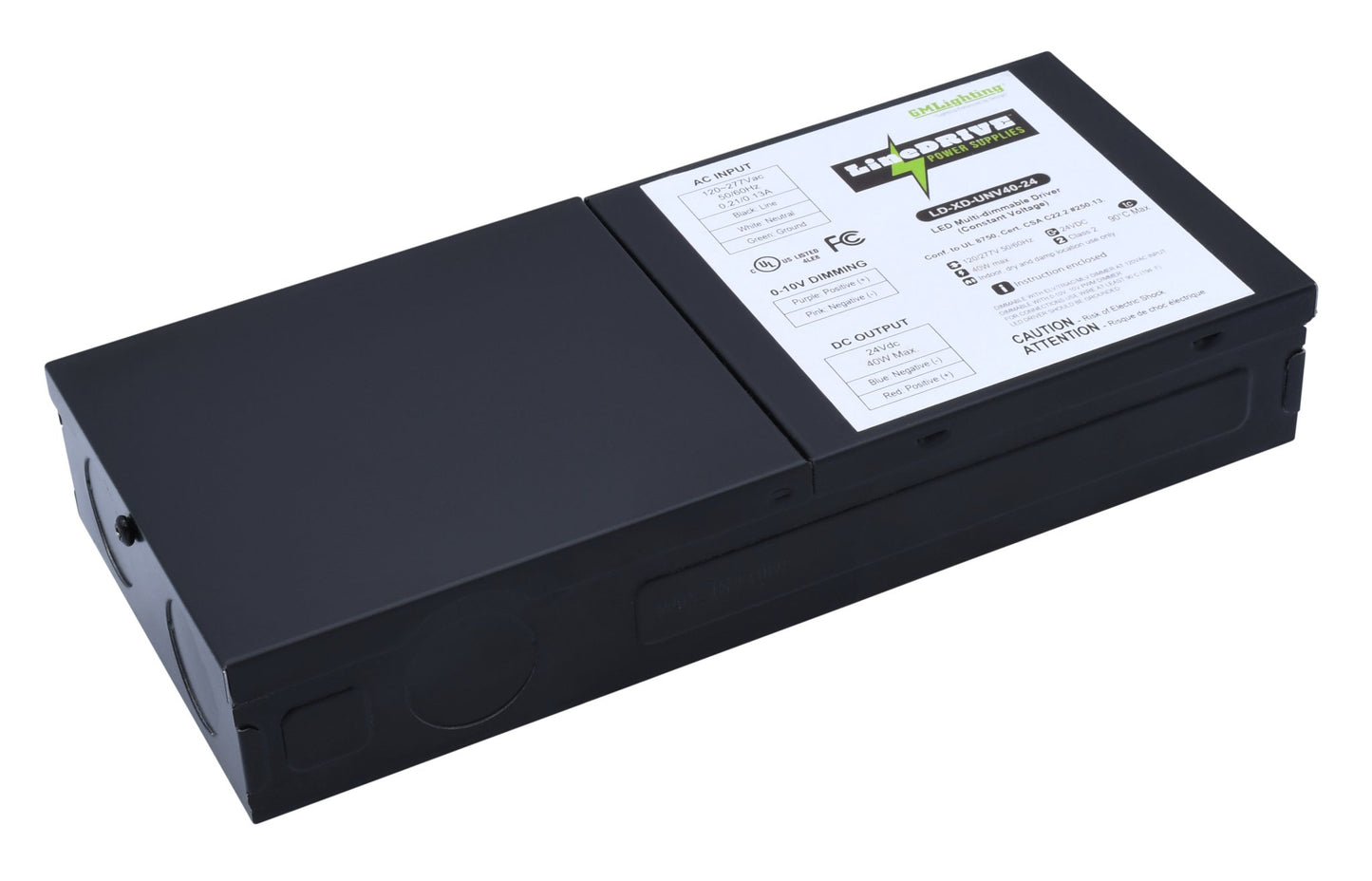

LD-XD-UNV40-24	40W	24VDC – 120V or 277V – 50/60Hz – Class 2 – Auto Reset	7.93″L x 3.36″W x 1.33″H

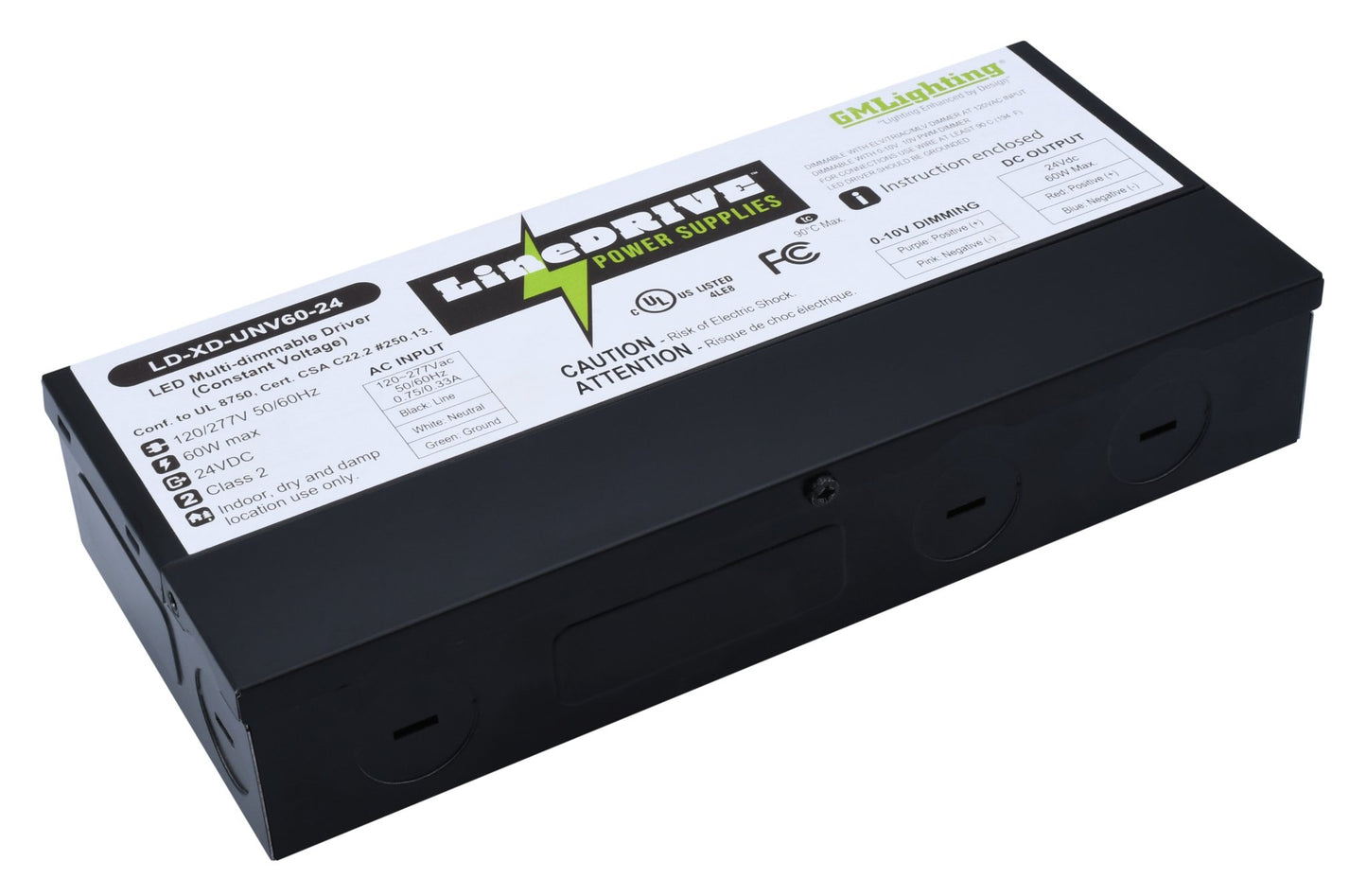

LD-XD-UNV60-24	60W	24VDC – 120V or 277V – 50/60Hz – Class 2 – Auto Reset	8.29″L x 4.10″W x 1.59″H
LD-XD-UNV96-24	96W	24VDC – 120V or 277V – 50/60Hz – Class 2 – Auto Reset	8.29″L x 4.10″W x 1.59″H

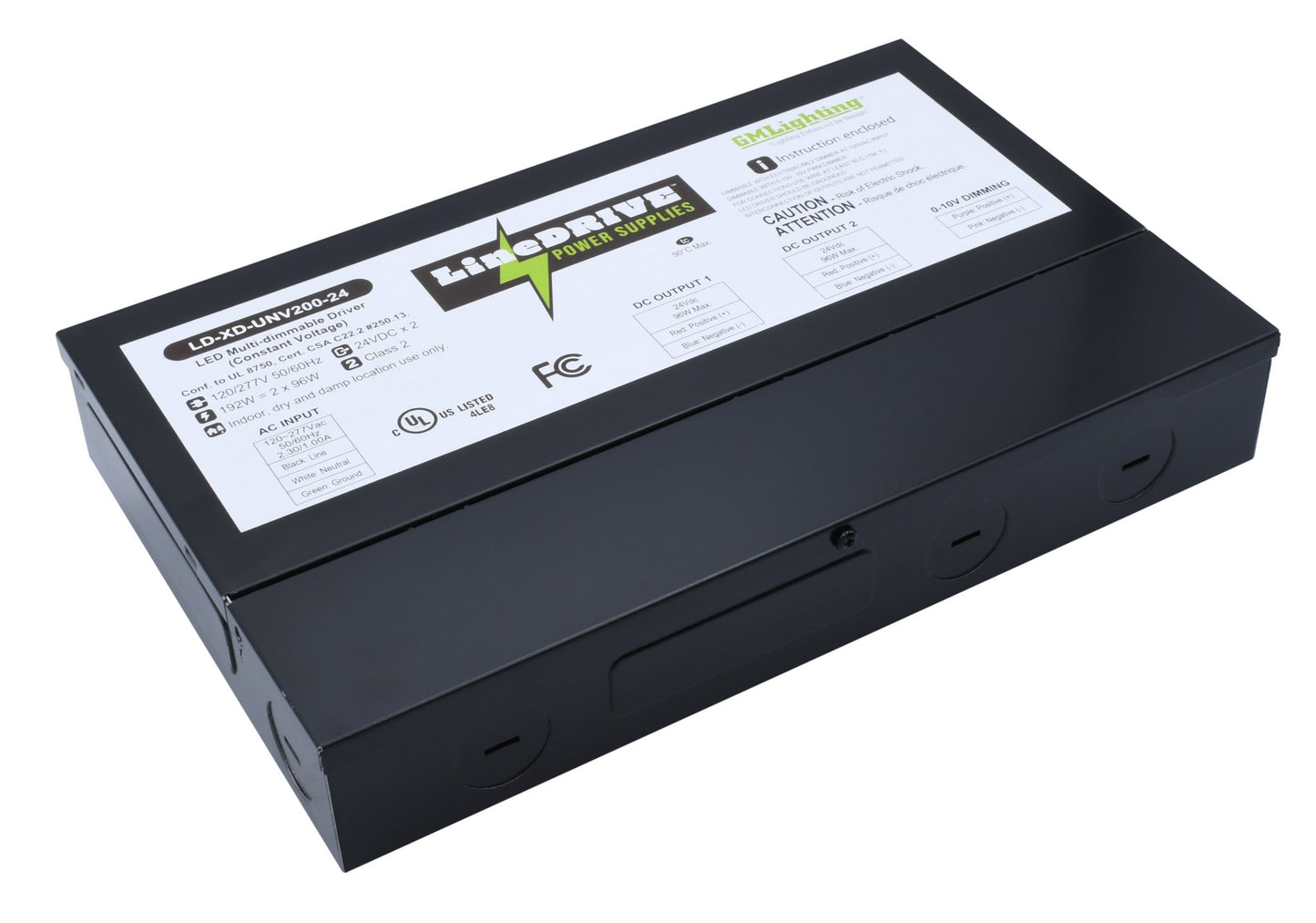

LD-XD-UNV200-24	192W	24VDC – 120V or 277V – 50/60Hz – Auto Reset – (2) x 96W channels – Class 2	9.51″L x 6.35″W x 1.59″H
LD-ED-UNV300-24	288W	24VDC – 120V or 277V – 50/60Hz – Auto Reset – (3) x 96W channels – Class 2	9.51″L x 6.35″W x 1.59″H
