GM Lighting

GM Lighting LED-CHL-45-MINI 4FT 45° Aluminum LED Mounting Channel

GM Lighting LED-CHL-45-MINI 4FT 45° Aluminum LED Mounting Channel

$27.00
$27.00
Sale Sold out
Shipping calculated at checkout.
Extruded 45° Aluminum Channel
Color: Silver

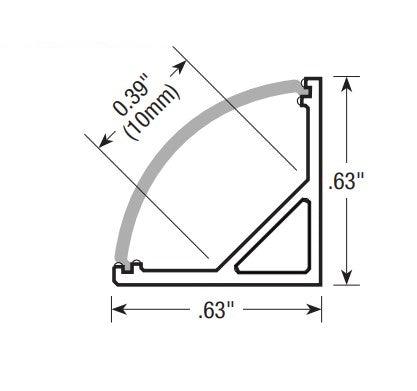

Extruded Mini 45° Aluminum Linear LED Tape Mounting Channels

Black Channel comes with white lens. Black lens can be purchased separately.

GM Lighting’s LED-CHL-45-MINI is smaller than the LED-CHL-45 channel for a very low profile fit. This MINI channel accepts select low voltage GM Lighting LED tape using solder connections. These 45° format mounting channels are the perfect vessel to blend with many architectural styles. A distribution at a 45° angle and lens combine to provide soft, direct light source that minimizes diode imaging.

  • 4ft (48in) length
  • Available in silver anodized or black finish
  • Includes 2 mounting clips and screws
  • Includes white acrylic lens
  • Black lens option: 25% light transmission
  • End caps sold separately
  • For select LTR Series Tape - LTR-P, LTR-S and LTR-E
Spec Sheet

LED-CHL-45-MINI Spec Sheet

Info
Catalog No. Length Description

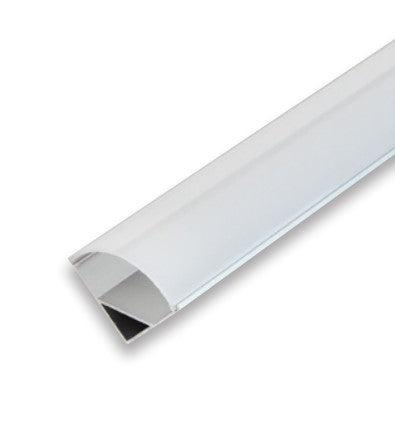

LED-CHL-45-MINI 48" 45° silver channel. Includes snap-on white lens with (2) mounting clips and (2) screws

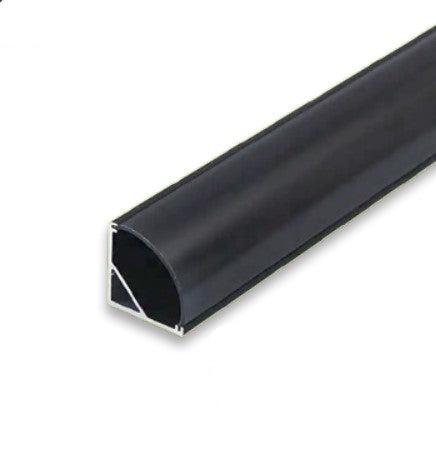

LED-CHL-45-MINI-B 48" 45° black channel. Includes snap-on white lens with (2) mounting clips and (2) screws
NOTE: All channels include snap-on frosted lenses. All channels may not accommodate all ribbon to ribbon and ribbon to power supply connections. Please locate connections outside of channel interior.

Accessories

Catalog No. Description

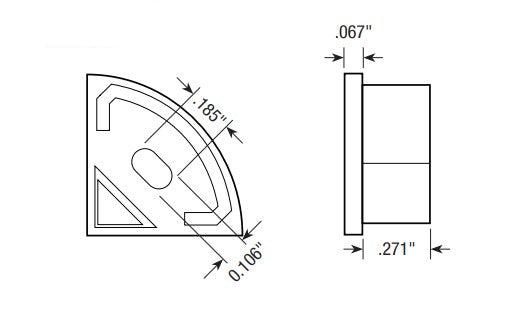

LED-CHL-45-MINI-EC (2) End caps for LED-CHL-45-MINI: light gray, one solid, one with hole
LED-CHL-45-MINI-EC-B (2) End caps for LED-CHL-45-MINI: black one solid, one with hole

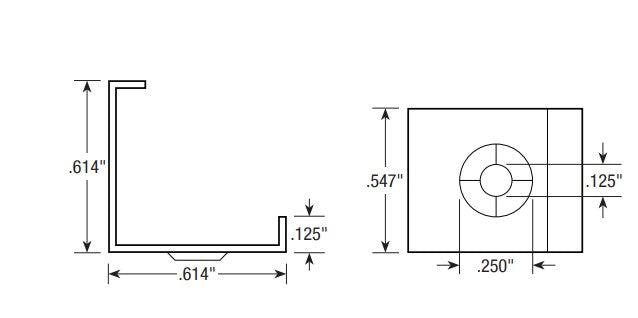

LED-CHL-45-MINI-MC (2) Mounting clips and (2) screws
for LED-CHL-45-MINI
LED-CHL-45-MINI-M LENS BK Lens in black for LED-CHL-45-MINI
