GM Lighting LED-CHL-MI Straight LED Tape Mud In Channels

Straight LED Tape Mud In Channels

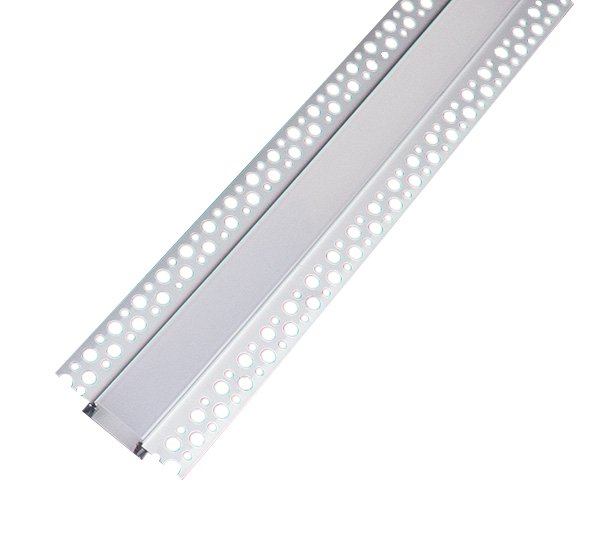

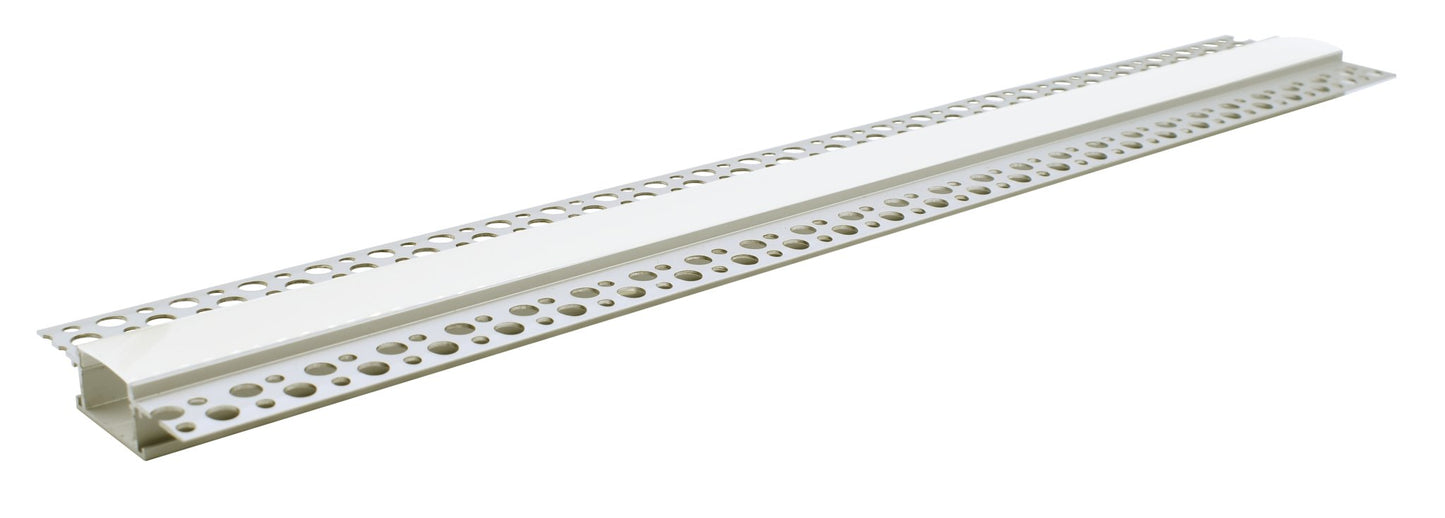

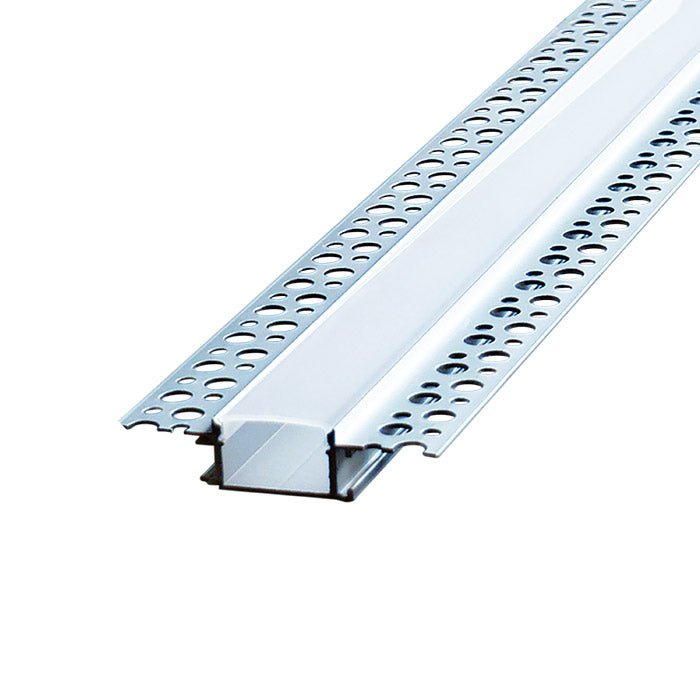

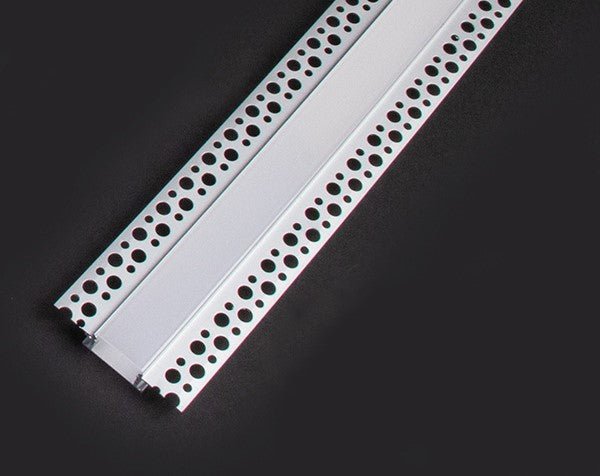

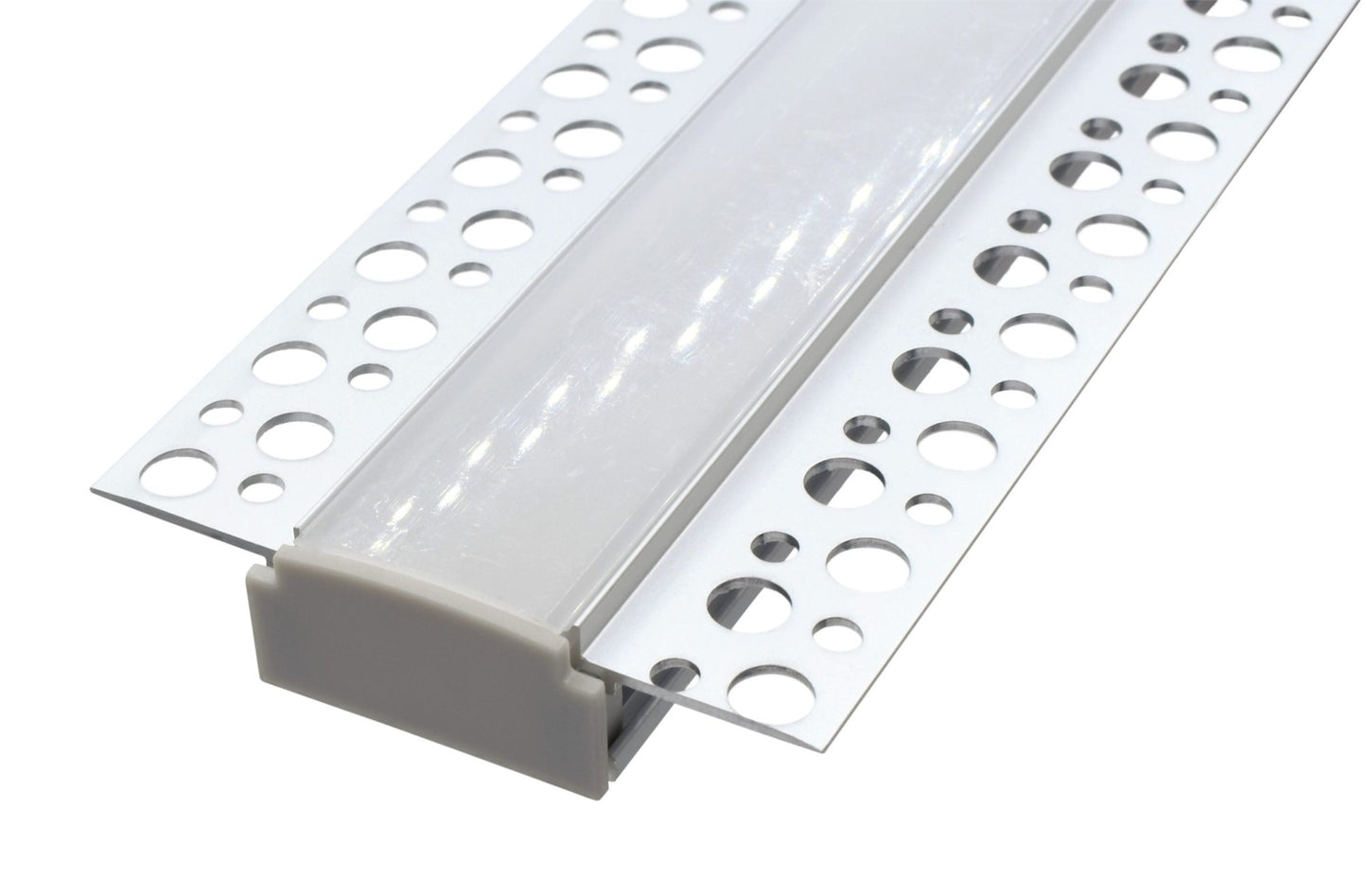

Recess illuminated sections of light for clean looking and creative design options. The aluminum, perforated frame enables easy mud-in installation. Includes snap-on frosted lens to produce even illumination and reduce pixelization. Available in a minimum of 4 X 8’ lengths. Premade corner sections are only available for the Wider channel

Aluminum construction
Available in 96" lengths
8 foot channels are a minimum of 4 pieces to ship
Easy to install
Check out our video below

LED-CHL-MI-ST8 suitable for use with:

LTR-P Professional Series
LTR-S Specification Series
LTR-S COB (Chip on Board)
LTR-S-DTW (Dim to Warm)
LTR-S-TW (Twist-Task)
LTR-P-WP Professional Series Wet Location
LTR-S-RGBW / RGBW-WP Specification Series and RGBW Wet Location
LTR-E Economy Series
LTR-S-SV Side View
Accepts all Sure-Tite EST and ST Series Connectors
Accepts all EZ Connectors

LED-CHL-MI-SST8 suitable for use with:

LTR-P Professional Series
LTR-S Specification Series
LTR-S COB (Chip on Board)
LTR-S-DTW (Dim to Warm)
LTR-S-TW (Twist-Task)
LTR-E Economy Series
LTR-S-SV Side View
Note: DOES NOT ACCEPT CONNECTORS WITHIN CHANNEL. MAKE CONNECTIONS OUTSIDE OF CHANNEL.

Spec Sheet

LED-CHL- MI-ST8 SPEC SHEET
LED-CHL-MI-SST8 SPEC SHEET

Info

Catalog No.	Length	Width	Height	Finish
LED-CHL-MI-ST6	72"	2.50"
LED-CHL-MI-ST8	96"	2.50"	.55"	Aluminum

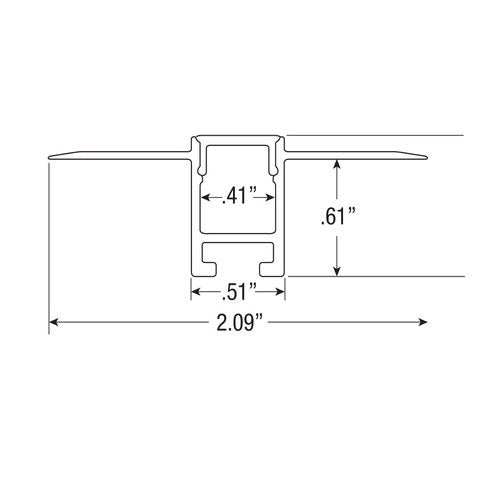

LED-CHL-MI-SST8	96"	2.09"	.73"	Aluminum
NOTE: Channel comes complete with a white frosted lens. Please see list of LED tape that this channel will accommodate, above.

Additional Info

Accessories

Catalog No.	Description

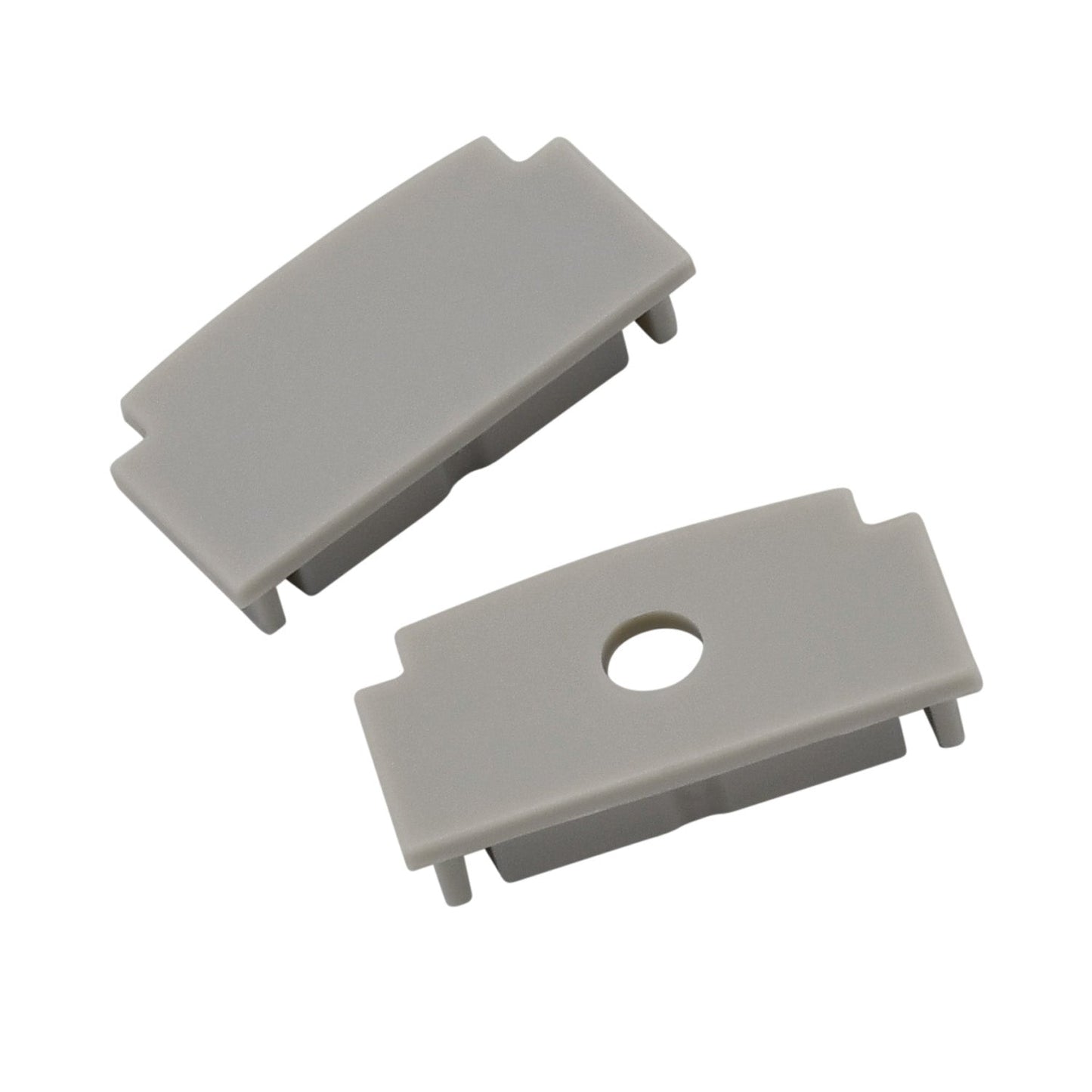

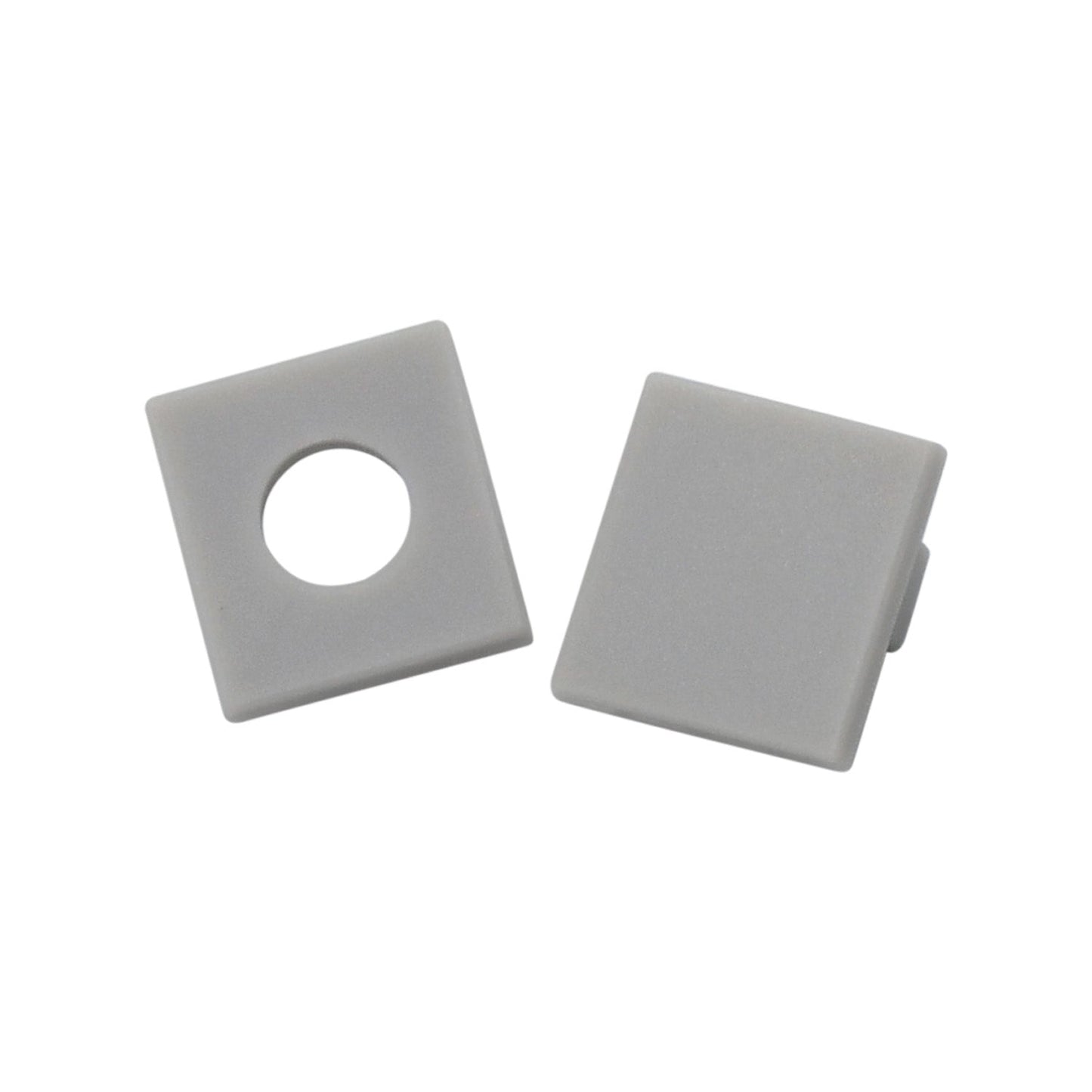

LED-CHL-MI-ST-EC	(2) end caps for LED-CHL-MI-ST8 - one solid, one with hole

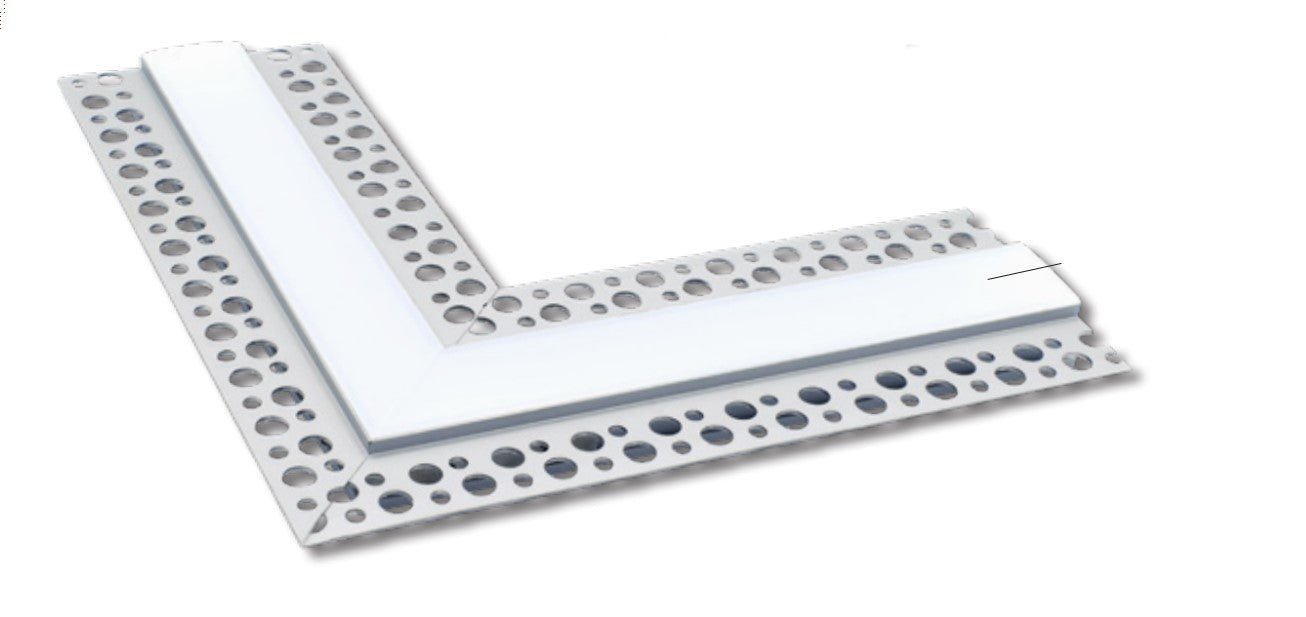

LED-CHL-MI-ST8-FC90	Corner mud-in channel - flat. Inc. snap-on frosted lens. for LED-CHL-MI-ST8

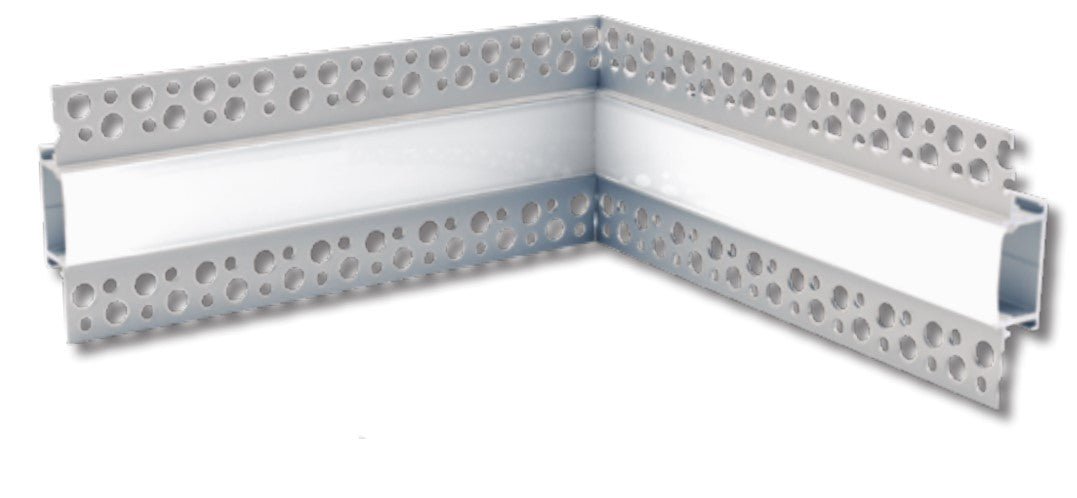

LED-CHL-MI-ST8-IC90	Corner mud-in channel - inside corner. Inc. snap-on frosted lens for LED-CHL-MI-ST8
LED-CHL-MI-ST8-OC90	Corner mud-in channel - outside corner. Inc. snap-on frosted lens for LED-CHL-MI-ST8

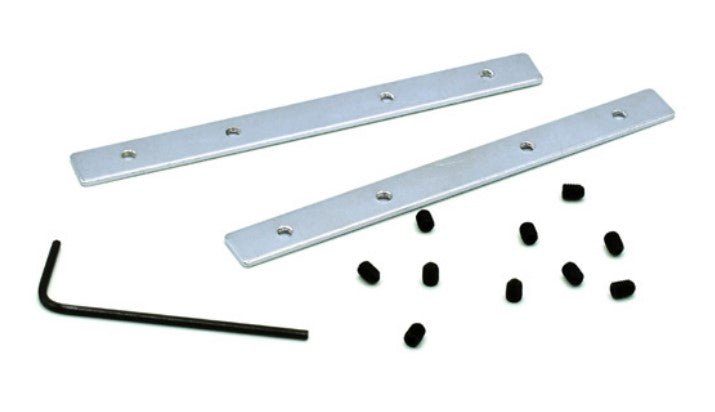

LED-CHL-MI-ST8-JC	2Pc Joiner coupler for mud in channel for LED-CHL-MI-ST8
LED-CHL-MI-ST8-LENS	8' lens for LED-CHL-MI-ST8. Inc. snap-on frosted lens.
LED-CHL-MI-SST-EC	(2) end caps for LED-CHL-MI-SST8 - one solid, one with hole
