• GML-LED-CHL-XD-FGM Lighting LED-CHL-XD-F 4FT/8FT Extra Deep Flange Aluminum LED Mounting Channel
  • GML-LED-CHL-XD-FGM Lighting LED-CHL-XD-F 4FT/8FT Extra Deep Flange Aluminum LED Mounting Channel
  • GML-LED-CHL-XD-FGM Lighting LED-CHL-XD-F 4FT/8FT Extra Deep Flange Aluminum LED Mounting Channel
  • GML-LED-CHL-XD-F-ECGM Lighting LED-CHL-XD-F 4FT/8FT Extra Deep Flange Aluminum LED Mounting Channel
1 4

GM Lighting

GM Lighting LED-CHL-XD-F 4FT/6FT Extra Deep Flange Aluminum LED Mounting Channel

GM Lighting LED-CHL-XD-F 4FT/6FT Extra Deep Flange Aluminum LED Mounting Channel

$32.85
$32.85
Sale Sold out
Shipping calculated at checkout.

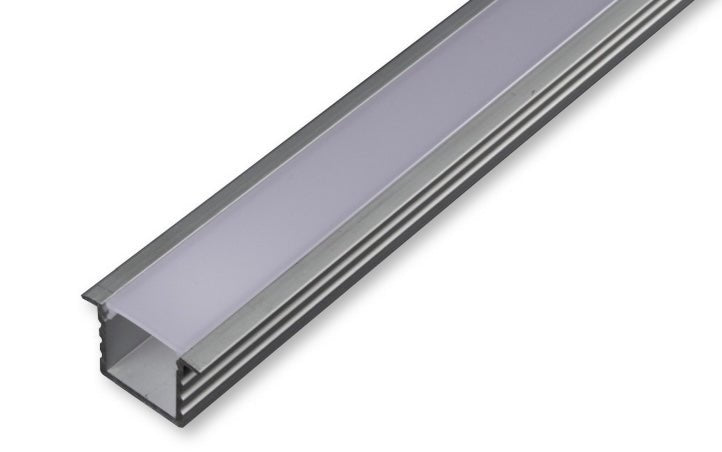

Extra Deep Flanged Aluminum Channel
Color: Silver

Extra Deep Flanged Aluminum Linear LED Tape Mounting Channels

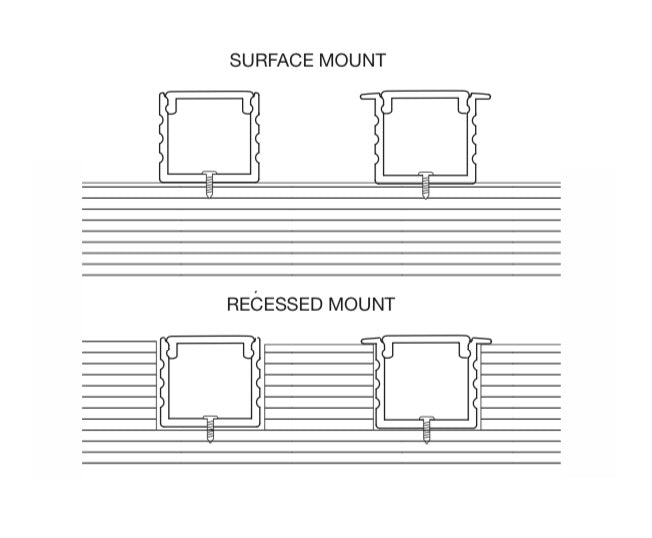

GM Lighting’s Extruded aluminum extra deep, flanged surface and recessed channel with snap-in frosted glossy lens that provides a rigid, deep set linear mounting platform for the all GM Lighting LED linear tape. Channel creates a diode free light source. Fits the following GM tape: FOR LTR SERIES TAPE LTR-P, LTR-S and LTR-E - DRY and WET LOCATION



  • Aluminum construction
  • Available in 48" and 72" lengths
  • Easy to install
  • Includes 2 mounting clips and screws
  • Includes acrylic frosted lens
  • End caps sold separately
  • Mounting channel for every GM LED Linear Tape
    Spec Sheet

    LED-CHL-XD-F SPEC SHEET

    Info

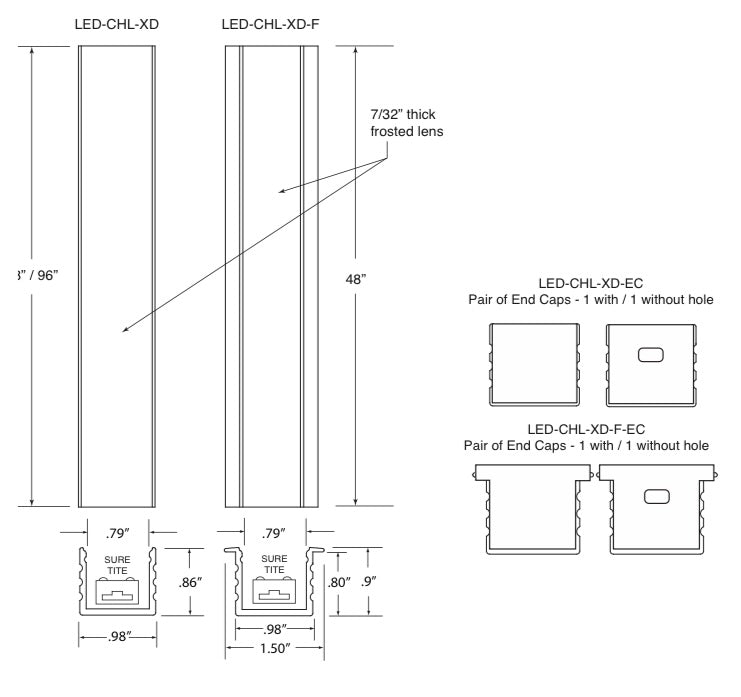

    Catalog No. Length Width Height Finish
    LED-CHL-XD-F 48" 1.5" .88" Aluminum
    LED-CHL-XD-F-6 72" 1.5"
    		 .88" Aluminum
    NOTE: All channels include snap-on frosted lenses. All channels may not accommodate all ribbon to ribbon and ribbon to power supply connections. Please locate connections outside of channel interior.

    Accessories

    Catalog No. Description
    LED-CHL-XD-F-EC (1) solid end cap and (1) solid end cap with hole for LED-CHL-XD-F
    LED-CHL-XD-F-DC Drywall mounting brackets (2) for LED-CHL-XD-F
    LED-CHL-XD-F-MC Mounting clips (2) for LED-CHL-XD-F
