GM Lighting LED-CHL2 4FT/6FT Aluminum LED Mounting Channel

Linear LED Tape Mounting Channels

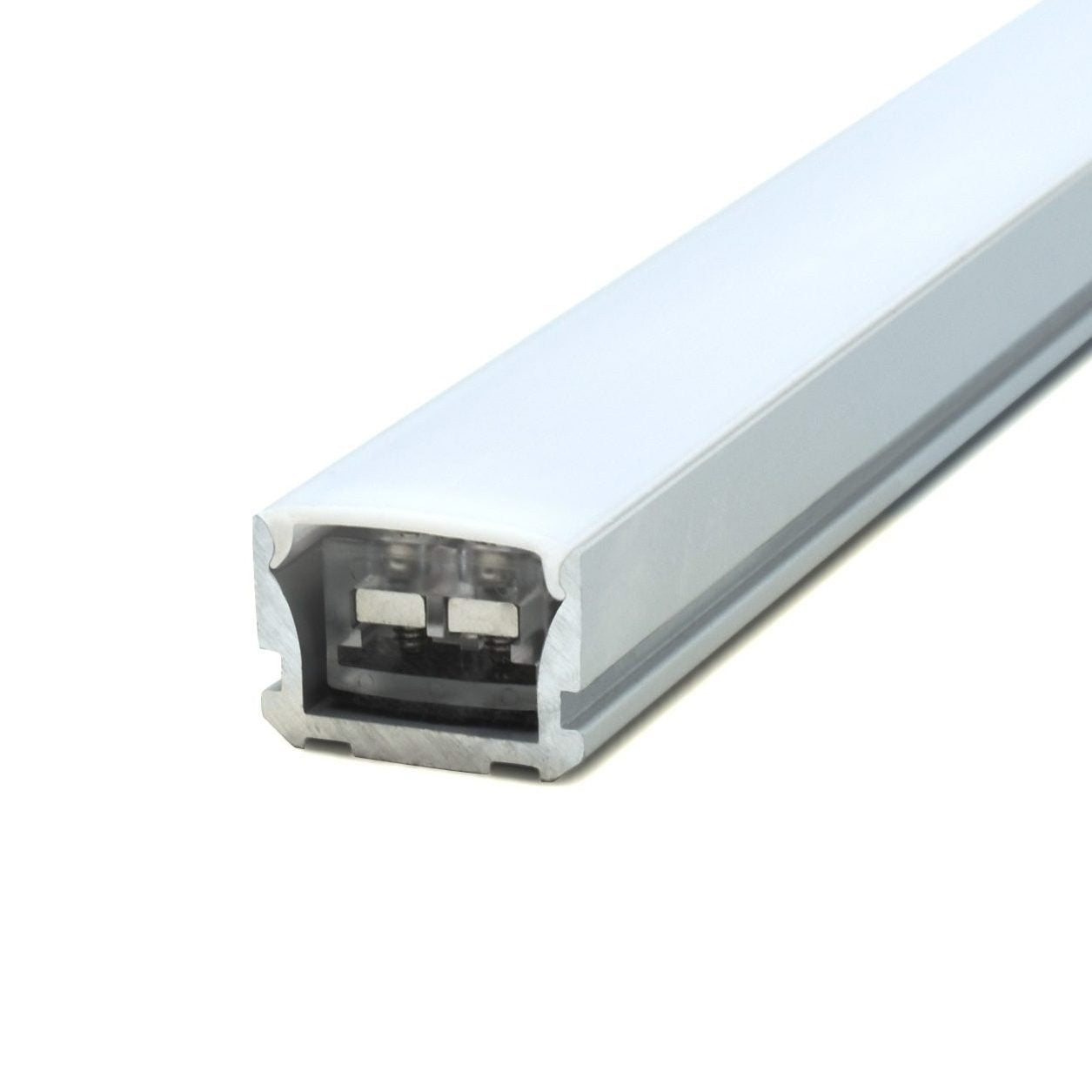

GM Lighting’s LED-CHL2 channel accepts most low voltage, GM Lighting LED tapes and EST connectors for easy installation. See catalog for compatibility with tape widths. These channels come in several colors and are the perfect vessel to blend with many architectural styles. The standard white lens provides provide a soft, direct light or choose a black lens and channel for dynamic effect.

4ft (48in) and 6ft (72in) length

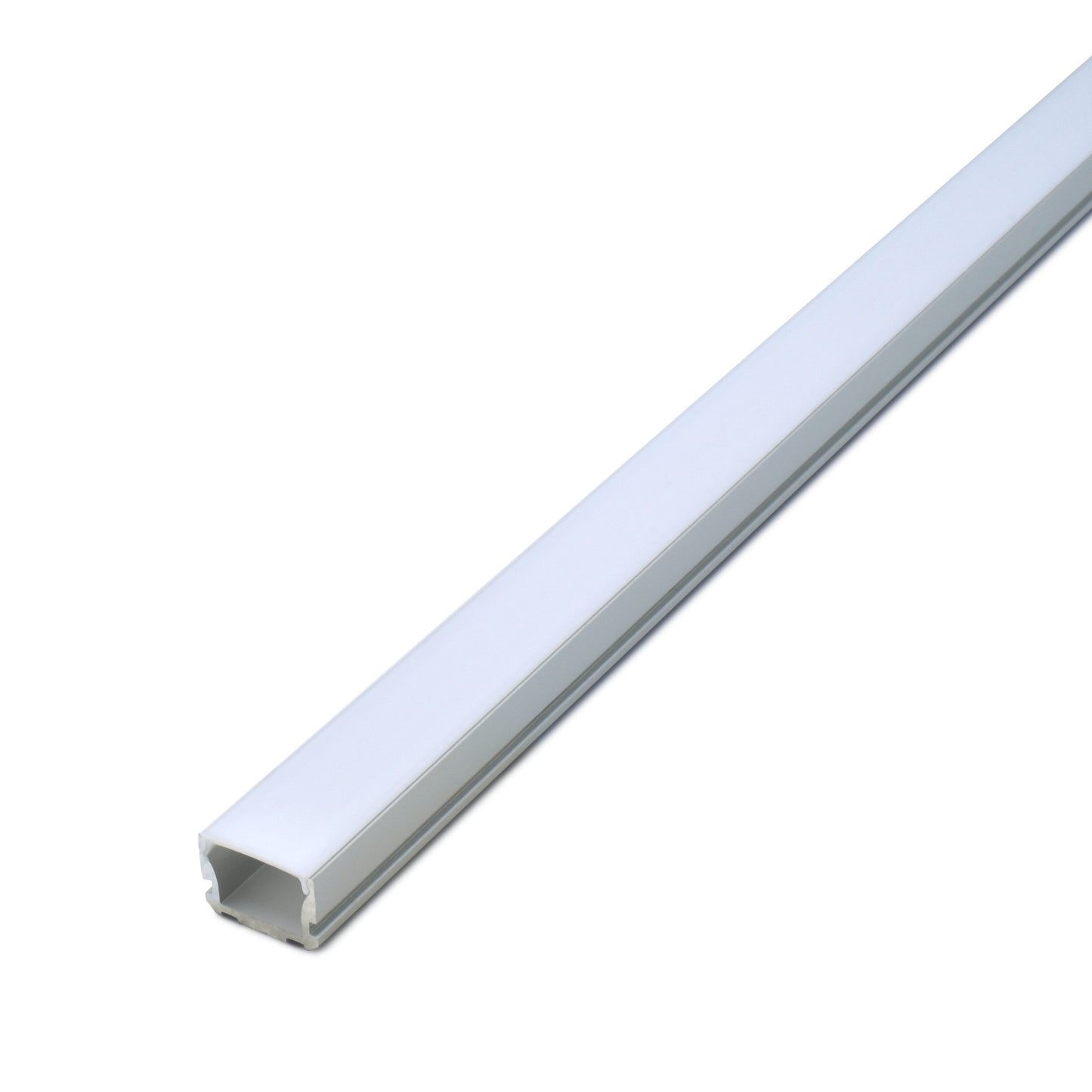

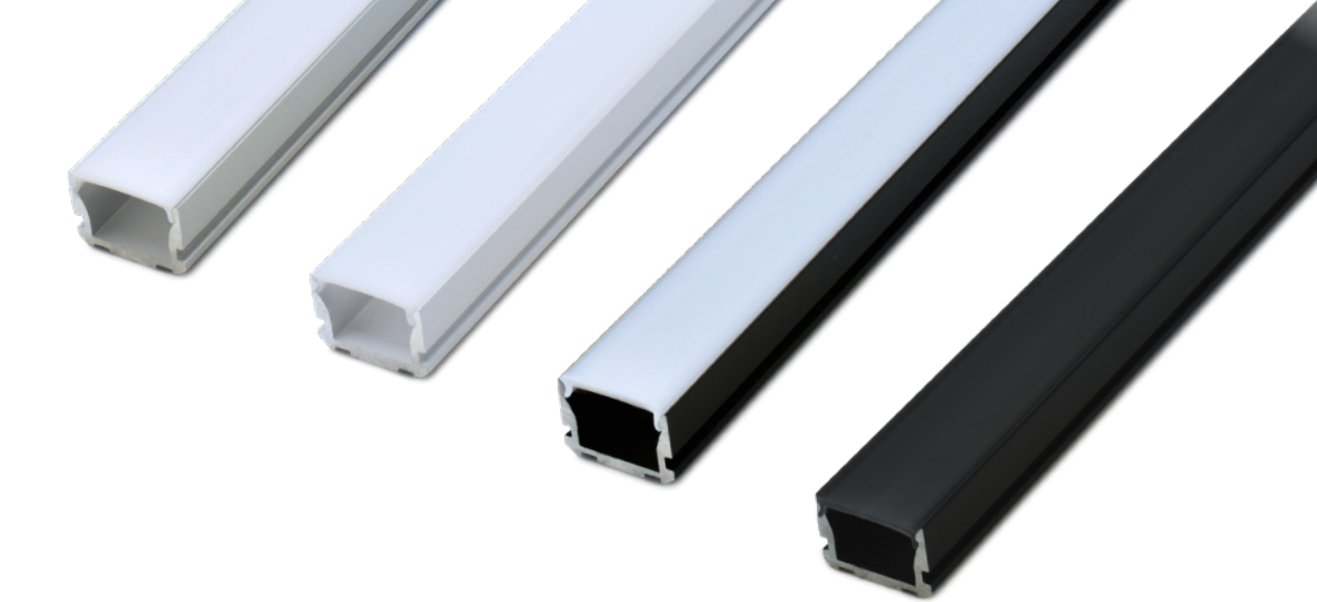

Available in clear anodized silver, white or black finish with white acrylic lenses
Includes 2 with 4ft or 4 with 6ft mounting clips and screws

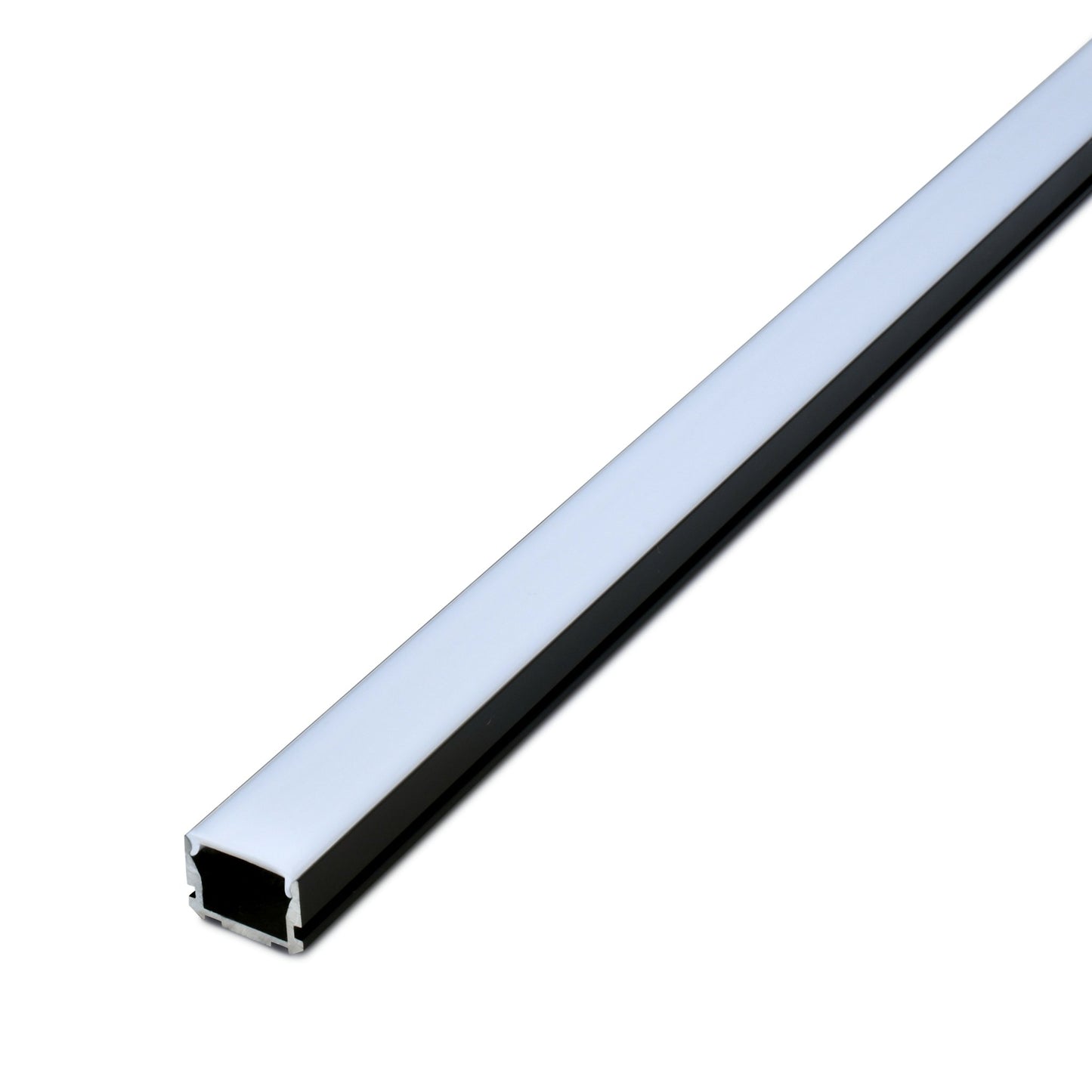

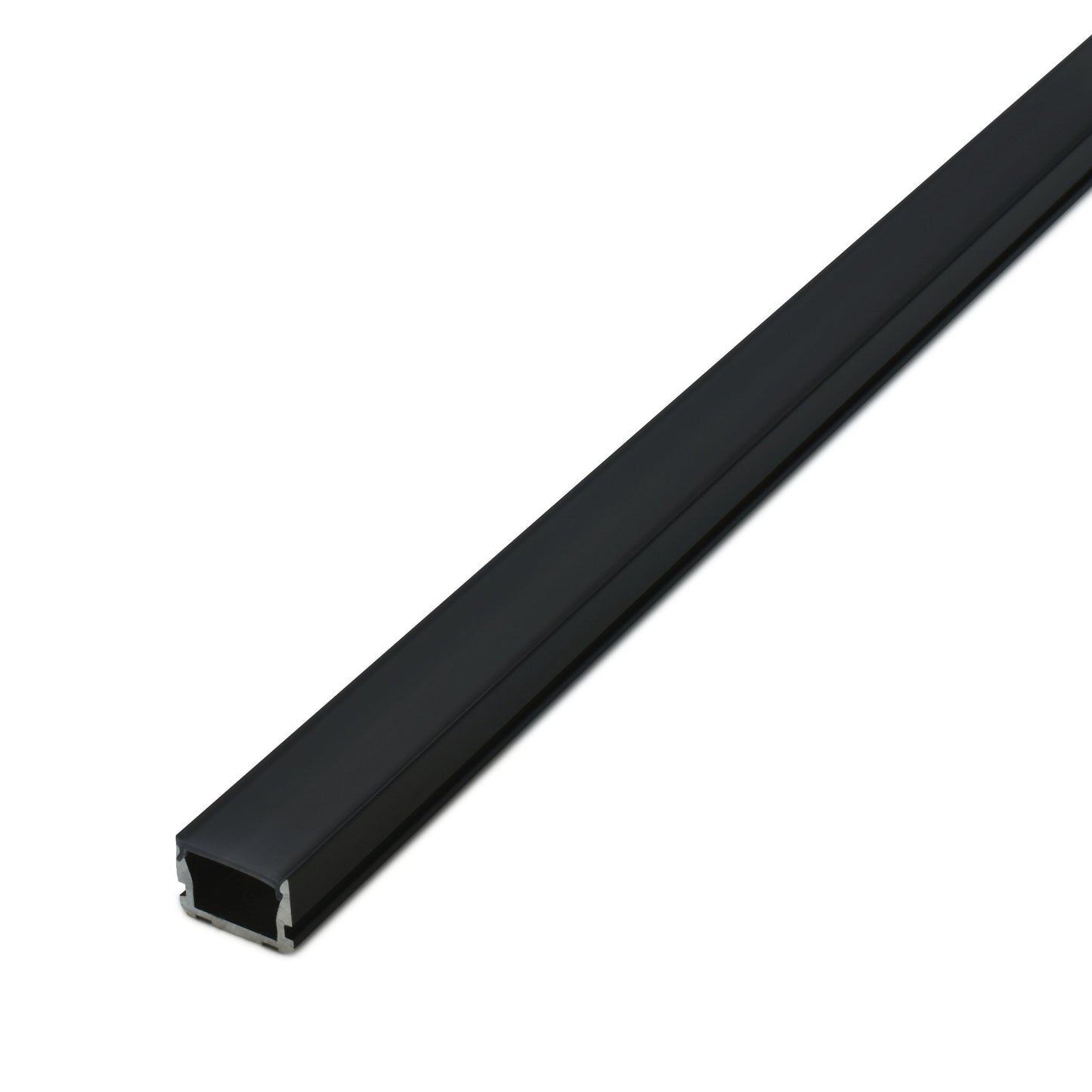

Black lens option to minimize view of channel and lens
Black lens option: 25% light transmission
End caps sold separately
For select LTR Series Tape - LTR-P, LTR-S and LTR-E

Spec Sheet

Sell Sheet

CHANNEL GUIDE

Info

Catalog No.	Length	Color	Description
LED-CHL2-4-CA	48"	Silver	4' Channel, Lens, and Mounting clips
LED-CHL2-4-WH	48"	White	4' Channel, Lens, and Mounting clips
LED-CHL2-4-BK	48"	Black	4' Channel, Lens, and Mounting clips
LED-CHL2-6-CA	72"	Silver	6' Channel, Lens, and Mounting clips
LED-CHL2-6-WH	72"	White	6' Channel, Lens, and Mounting clips
LED-CHL2-6-BK	72"	Black	6' Channel, Lens, and Mounting clips
LED-CHL2 LENS-4-BK	48"	Black	4 foot lens in black for LED-CHL2-4
LED-CHL2 LENS-6-BK	72"	Black	6 foot lens in black for LED-CHL2-6

NOTE: All channels include snap-on frosted lenses. All channels may not accommodate all ribbon to ribbon and ribbon to power supply connections.

Accessories

Catalog No.	Description
LED-CHL2-ECG	2 Light Gray end caps one solid, one with hole
LED-CHL2-ECW	2 White end caps one solid, one with hole
LED-CHL2-ECB	2 Black end caps one solid, one with hole
LED-CHL2-MC	(2) Mounting clips and (2) screws
LED-CHL2-AMC	(2) Adjustable Mounting clips and (2) screws
