GM Lighting LTR-S-COB-24V-RGBTW 5W/FT 16FT LED Tape RGBTW

GM Lighting LTR-S-COB-24V-RGBTW 5W/FT 16FT LED Tape RGBTW

Regular price $315.00
Regular price Sale price $315.00
Sale Sold out
Shipping calculated at checkout.
Style
Color Temperature
Wattage

LTR-S Spec Series RGBTW COB Tape

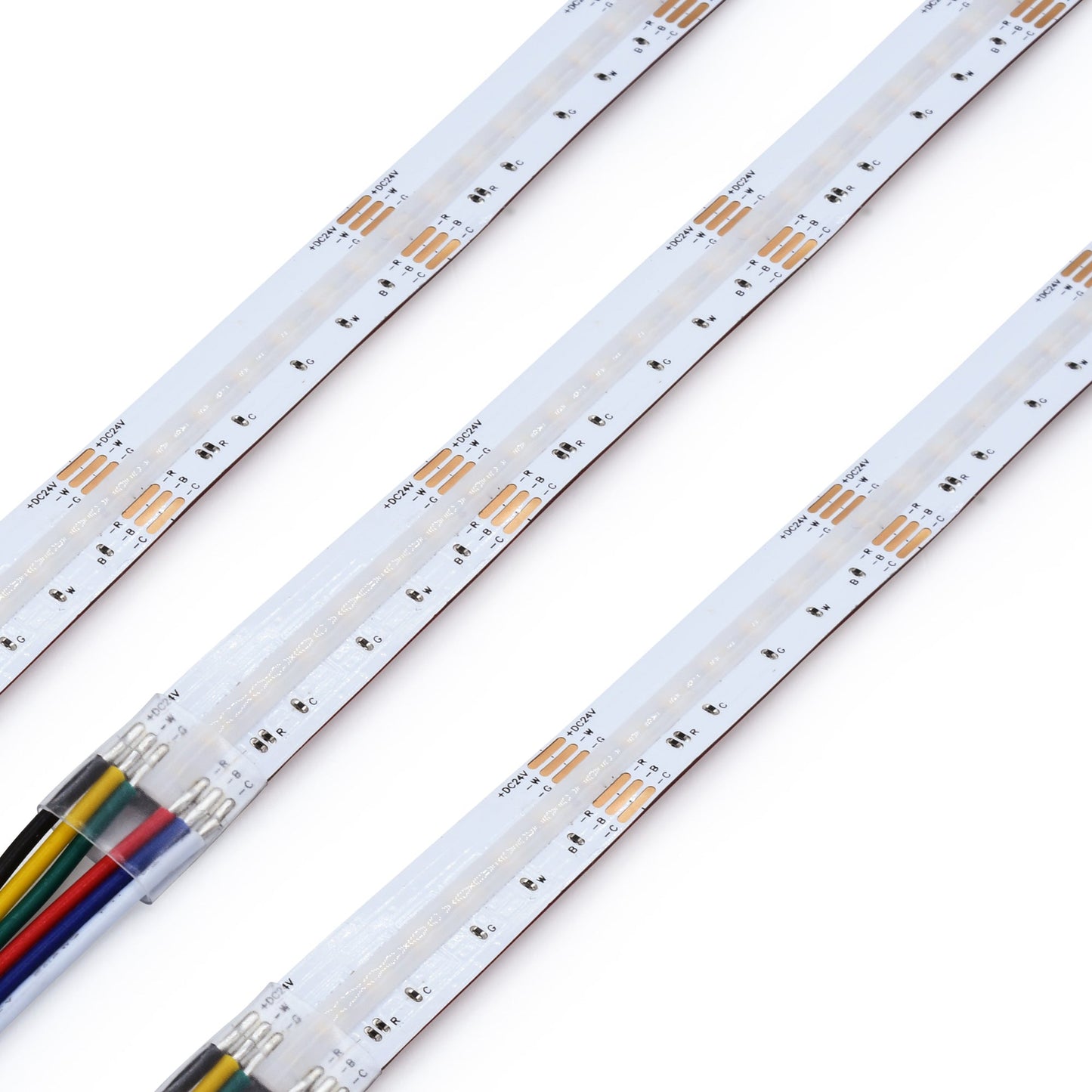

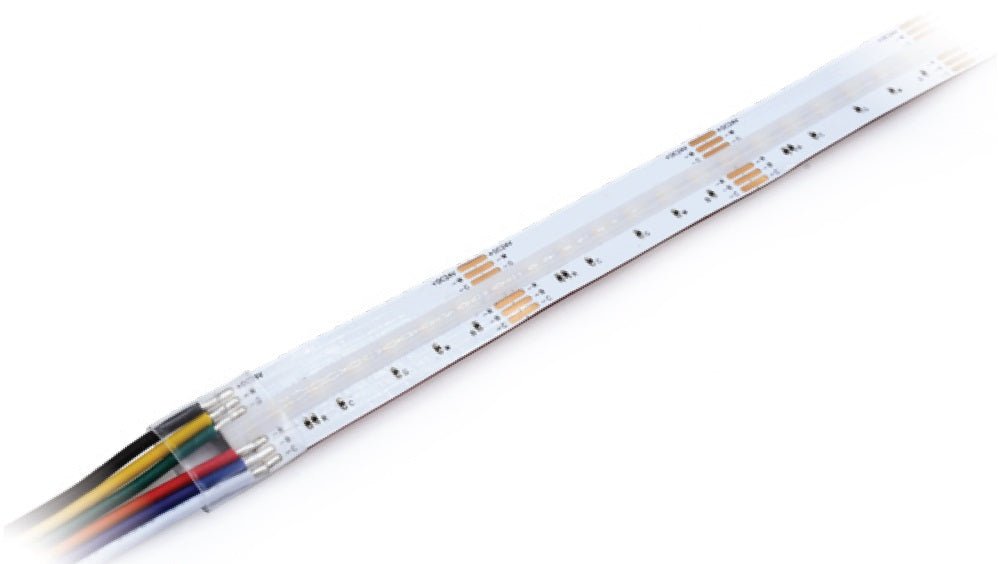

GM’s RGB + Tunable White COB tape adds a new dimension beyond simple RGB. With the addition of 2700K and 6500K White LEDs, an amazing combination of color and general lighting is enabled. Cool white light can be used for critical tasks while warm whites create a cozy environment. RGB colors create a wide array of accent options for your desired look. Compact, COB style tape means reduced pixelization for smoother looking light. Designed for high quality illumination in dynamic applications.

  • Red, Green, Blue (RGB) channels for rich color applications
  • Tunable White LEDs for general and task lighting (2700K-6500K)

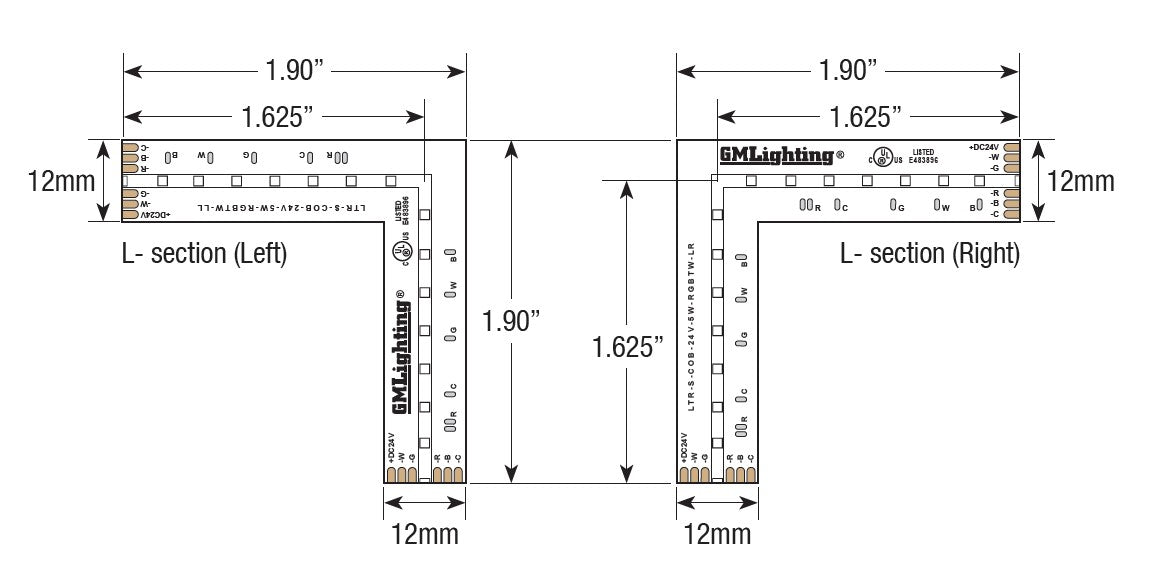

  • 90° L-sections enable fully lit, flat corners
  • 5W per foot, 24VDC

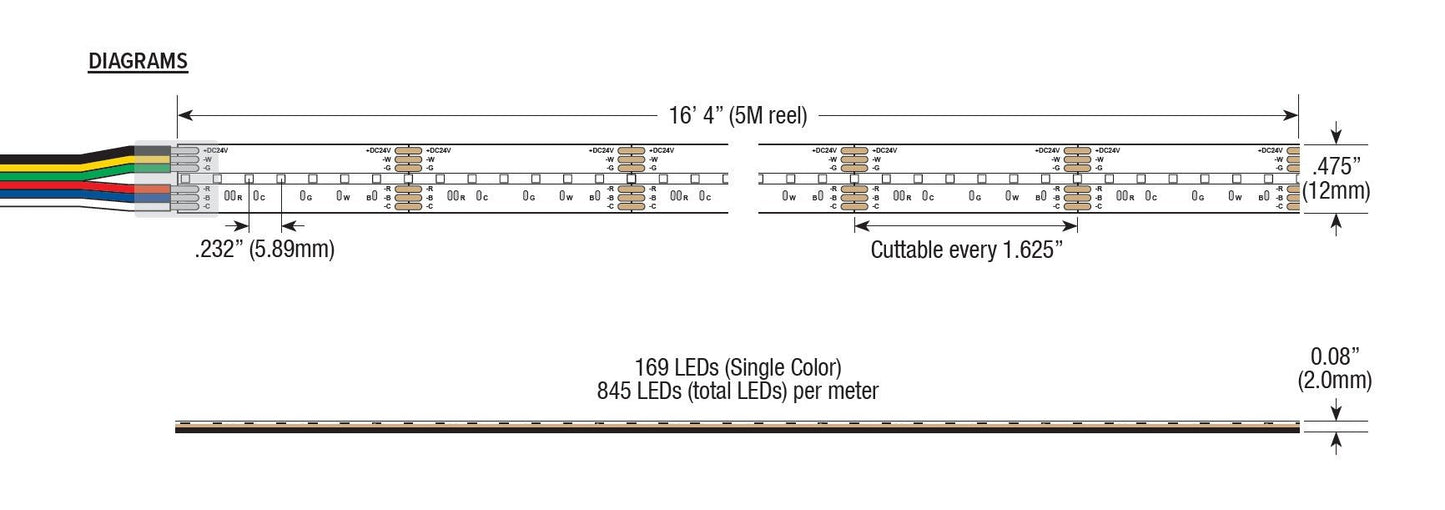

  • Cuttable every 1-5/8″
  • Custom lengths available – consult factory
  • 169 LEDs (single color), 845 LEDs (all LEDs) per meter
  • 150° viewing angle
  • 3M adhesive back
  • Maximum run on a given lead is 16’-4”
      Spec Sheet

      Spec Sheet

      Installation Instructions

      Info

      Catalog No. Reel Length Watts/Foot Max. Run
      LTR-S-COB-24V-5W-RGBTW-16 16′-4″ (5M) 5.0W 16′-4″
      LTR-S-COB-24V-5W-RGBTW-LL 16′-4″ (5M) 5.0W L-Section LEFT
      LTR-S-COB-24V-5W-RGBTW-LR 16′-4″ (5M) 5.0W L-Section RIGHT
      16′-4″ reels include 48″ lead affixed to tape.

      Accessories
      MODEL DESCRIPTION
      HCCM-RF-RGBTW RGBTW 5 Channel Controller with RF Remote with holder and mounting hardware
      RPT-RGBTW 5 Channel Repeater
      DMX-LT-995 5-Channel DMX Decoder
      WC5-RGBTW-DMX-BT Black Wall Control 5-Channel DMX, Bluetooth App (requires LD-E-UNV8-12)
      LD-E-UNV8-12 12V 8W Constant Voltage Driver 120V/277VAC In
      DMX-TR-5 DMX Terminator Resistor 120 Ohm, 1/4 Watt, 5 pcs


      Catalog No. Description
      LOC6-TT-S Low profile 6C tape-to-tape splice connector
      LOC6-TT-3 Low profile 6C tape-to-tape 3″ wire connector
      LOC6-TT-6 Low profile 6C tape-to-tape 6″ wire connector
      LOC6-TT-12 Low profile 6C tape-to-tape 12″ wire connector
      LOC6-TT-24 Low profile 6C tape-to-tape 24″ wire connector
      LOC6-TT-36 Low profile 6C tape-to-tape 36″ wire connector
      LOC6-TT-60 Low profile 6C tape-to-tape 60″ wire connector
      LOC6-TP-72 Low profile 6C tape-to-power 72″ wire connector
      18-6-WIRE-XXXFT 18/6 In-wall rated cable (CMP) by the foot
