GM Lighting
GM Lighting LTR-S-Ultra 24V 1.5W/FT 16FT LED Tape 24K-50K
GM Lighting LTR-S-Ultra 24V 1.5W/FT 16FT LED Tape 24K-50K
Regular price
$185.40
Regular price
Sale price
$185.40
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

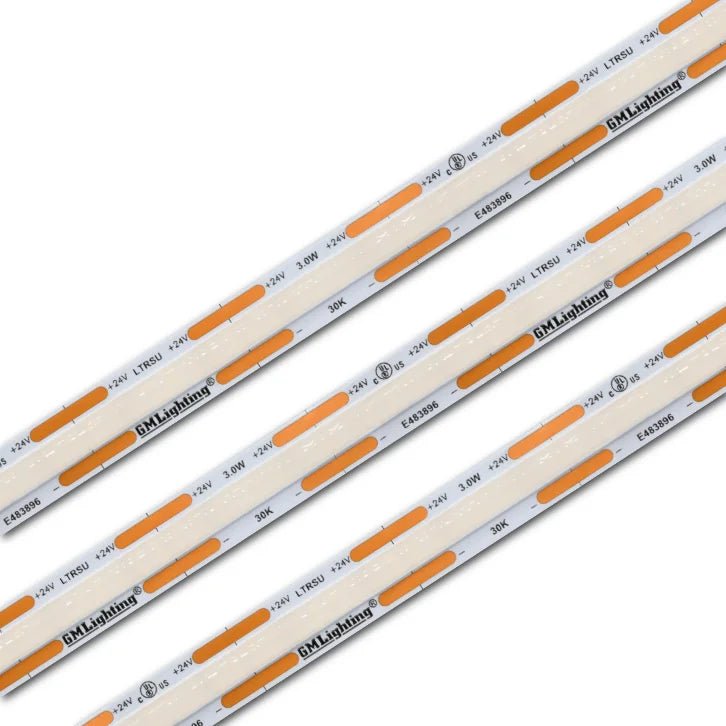

LTR-S Ultra S-COB Silicone COB Tape Light
The LTR-S Ultra LED Tape is a high-performance linear lighting solution designed to deliver smooth, continuous illumination across a wide range of applications. Its SCOB technology combines the efficiency of SMD LEDs with the uniform appearance of COB lighting, creating clean, consistent lines of light with minimal visible LED spotting. Available in multiple wattages and color temperatures, LTR-S Ultra provides the flexibility to accommodate residential, commercial, and retail lighting environments.
- 24VDC operation
- Available in 1.5, 3.0, 4.5 or 5.8 watts per foot
- Dry and damp location rated
- 2400K, 2700K, 3000K, 3500K, 4000K or 5000K
- 94+ CRI
- R9 > 60
- Dimmable
- VHB adhesive backing for easy installation
- Custom lengths available ā consult factory
- Cut increment: 0.9ā³ for 1.5W and 3.0W; 1.0ā³ for 4.5W and 5.8W
- Maximum run: 1.5W @40ā², 3.0W @ 32ā²-8ā³
- Available in 16ā²-4ā³ and 98ā²-6ā³ reels
- cULus Class 2
- Title 24 compliant when used with specified drivers
- Compatible with low-profile LOC2 power feed and tape-to-tape connectors
- Compatible with a variety of extruded mounting channels
- 5-year warranty when paired with a GM Lighting power supply
Spec Sheet
Spec Sheet
Sales Sheet
Installation Instructions
Info
| Catalog No. | Reel Length | L/Ft | W/Ft | Color Temp. | Max. Run |
|---|---|---|---|---|---|
| 16ā-4ā and 100ā reel includes 60ā lead affixed to tape. 16ā-4ā reel includes (3) LOC2-TP-60 connectors. 100ā reel includes (7) LOC2-TP-60 connectors | |||||
| LTRSU24V1.5W27K | 16'-4" (5M) 98' 6" (30M) | 120 | 1.5W | 24K | 40' |
| LTRSU24V1.5W27K | 16'-4" (5M) 98' 6" (30M) | 127 | 1.5W | 27K | 40' |
| LTRSU24V1.5W30K | 16'-4" (5M) 98' 6" (30M) | 127 | 1.5W | 30K | 40' |
| LTRSU24V1.5W35K | 16'-4" (5M) 98' 6" (30M) | 127 | 1.5W | 35K | 40' |
| LTRSU24V1.5W40K | 16'-4" (5M) 98' 6" (30M) | 142 | 1.5W | 40K | 40' |
| LTRSU24V1.5W50K | 16'-4" (5M) 98' 6" (30M) | 255 | 1.5W | 50K | 40' |
Accessories
| Catalog No. | Description |
|---|---|
| LOC2-TT-S | Splice Connector, Low Profile 2C Tape-To-Tape |
| LOC2-TT-90T | 90 Deg-T Connector, Low Profile 2C Tape-To-Tape |
| LOC2-TP | Tape To Power, Connector Only |
| LOC2-TT-3 | 3" Wire Connector, Low Profile 2C Tape-To-Tape 2/18AWG White/White Stripe Jacket |
| LOC2-TT-6 | 6" Wire Connector, Low Profile 2C Tape-To-Tape 2/18AWG White/White Stripe Jacket |
| LOC2-TT-12 | 12" Wire Connector, Low Profile 2C Tape-To-Tape 2/18AWG White/White Stripe Jacket |
| LOC2-TT-24 | 24" Wire Connector, Low Profile 2C Tape-To-Tape 2/18AWG White/White Stripe Jacket |
| LOC2-TT-36 | 36" Wire Connector, Low Profile 2C Tape-To-Tape 2/18AWG White/White Stripe Jacket |
| LOC2-TT-60 | 60" Wire Connector, Low Profile 2C Tape-To-Tape 2/18AWG White/White Stripe Jacket |
| LOC2-TP-60 | 60" Wire Connector, Tape-To-Power, Low Profile 2C 2/18AWG White/White Stripe Jacket |
| LOC2-TP-60-90T | 60" 90-T Wire Connector, Tape-To-Power, Low Profile 2C 2/18AWG White/White Stripe Jacket |
