GM Lighting MDL-4R-S-5CCT 4" 15W LED Recessed Downlight Selectable CCT
GM Lighting MDL-4R-S-5CCT 4" 15W LED Recessed Downlight Selectable CCT
Regular price
$40.50
Regular price
Sale price
$40.50
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
15W 5CCT MicroTask 120V Mini IC Rated Recessed LED Downlight
Excellent color rendition and high lumens in a mini-downlight. Title 24 certified and IC rated with 5CCT choices in one unit to meet many application needs. Nominal 3” round or square trims have low glare for visual comfort. Fixtures feature a power supply with integrated junction box and connectors for easy installation. Perfect for downlight and accent light applications. White or black finish. Extension cords with modular connectors allows for convenient location of junction box
- Dimmable (Triac, ELV)
- 5CCT selectable
- 90+ CRI
- IC rated
- 4.5” dia. x 3” depth (round trim)
- 4.5” square x 3” depth (square trim)
- LUXcontrol App compatible when installed with SHWD
- Snap-in spring clips installation
- ETL, Title 24 and Energy Star
Spec Sheets
Spec Sheet
Installation Instructions
New Construction Plate Specs
Info
| Catalog No. | Description | Trim Dimensions | Color Temp. | Lumens @30K |
|---|---|---|---|---|

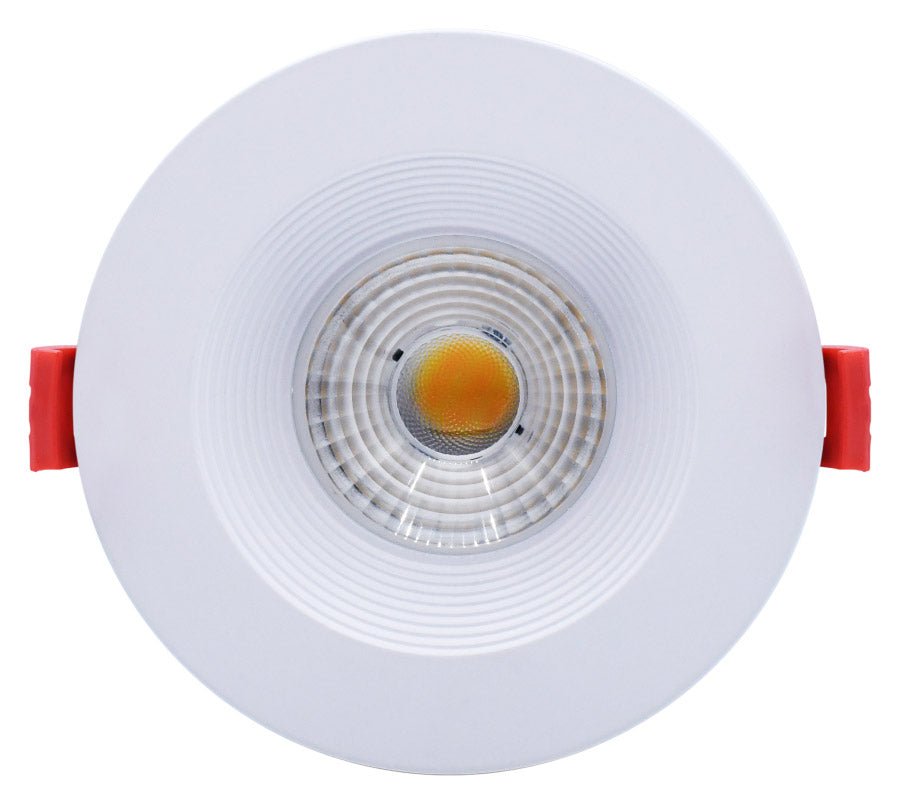

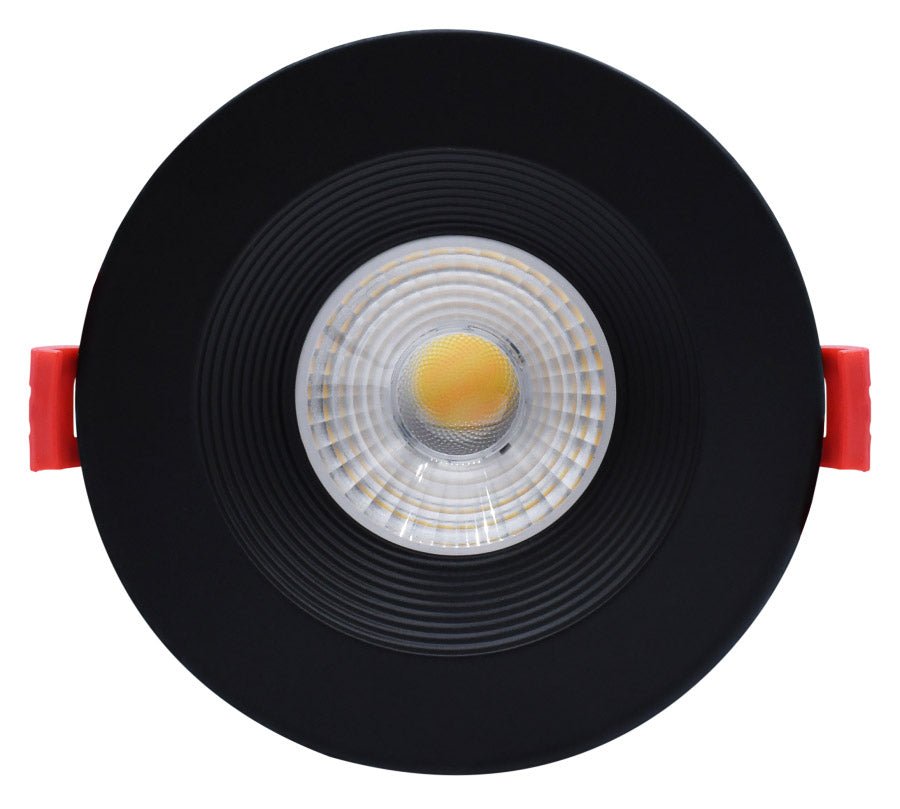

| MDL-4R-5CCT-WH | Round Regressed | 4.5" dia. x 3" depth | 27K-50K | 950 |
| MDL-4S-5CCT-WH | Round Regressed | 4.5" dia. x 3" depth | 27K-50K | 950 |

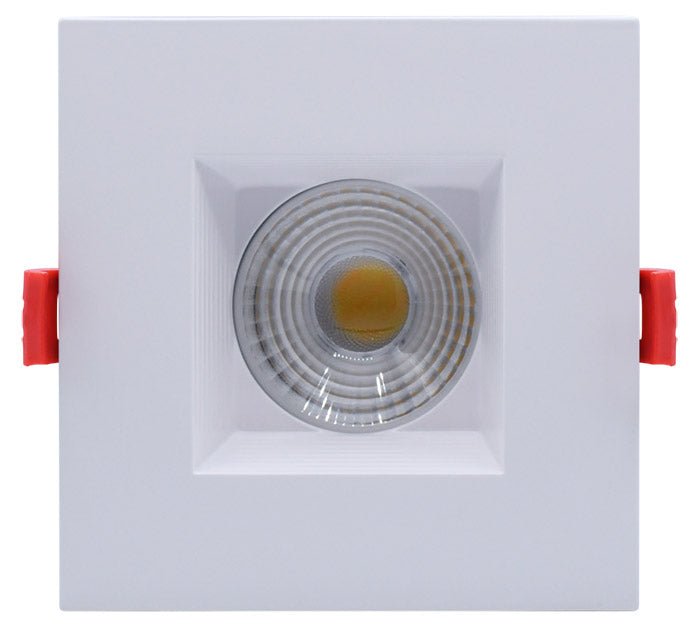

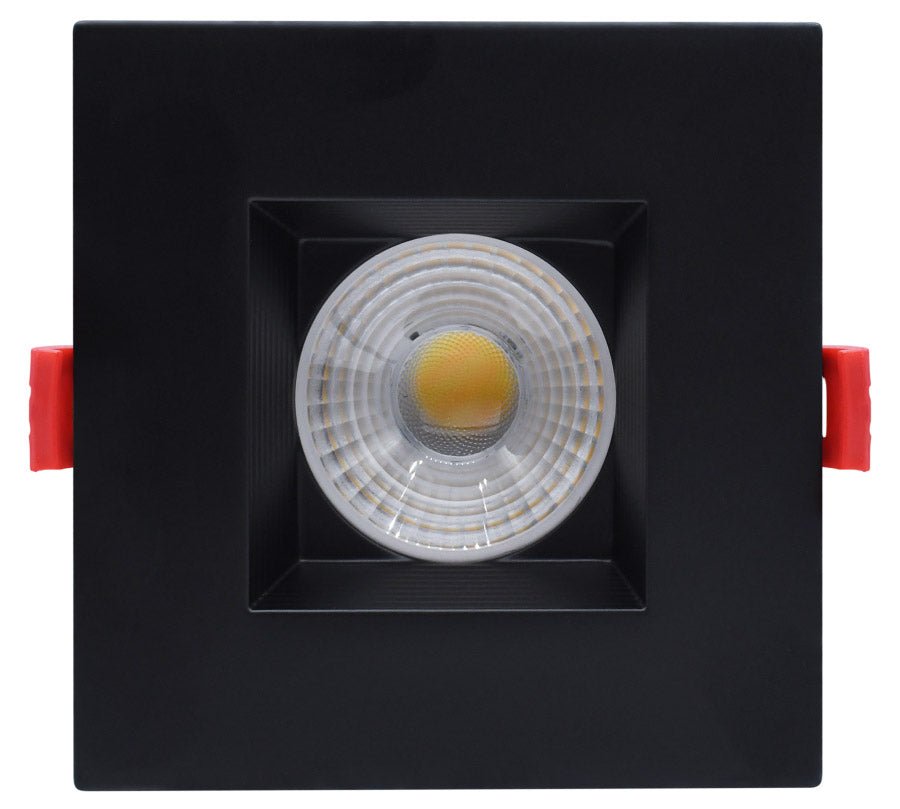

| MDL-4R-5CCT-BK | Square Regressed | 4.5" sqr. x 3" depth | 27K-50K | 875 |
| MDL-4S-5CCT-BK | Square Regressed | 4.5" sqr. x 3" depth | 27K-50K | 875 |
Accessories
| Cut-Out Dimensions |
|
| MDL-4R-5CCT |
3-3/4” DIA |
| MDL-4S-5CCT | 3-3/4” SQR |
| Catalog No. | Description |
|---|---|
| MDL-5FT-EXT | 5’ extension cord for MDL Series Downlights |
| MDL-10FT-EXT | 10’ extension cord for MDL Series Downlights |
| MDL-20FT-EXT | 20’ extension cord for MDL Series Downlights |
| UNV-NCP | New construction plate for all MDL Series Downlights |
