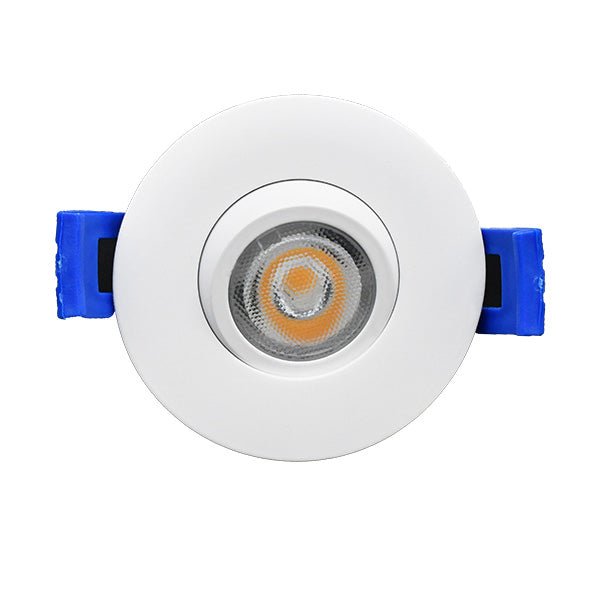

GM Lighting MTRA LED Round Gimbaled Recessed Downlight Selectable CCT
GM Lighting MTRA LED Round Gimbaled Recessed Downlight Selectable CCT
Regular price
$56.70
Regular price
Sale price
$56.70
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
MiniTask Selectable Gimbal Recessed Mini Downlights IC Rated

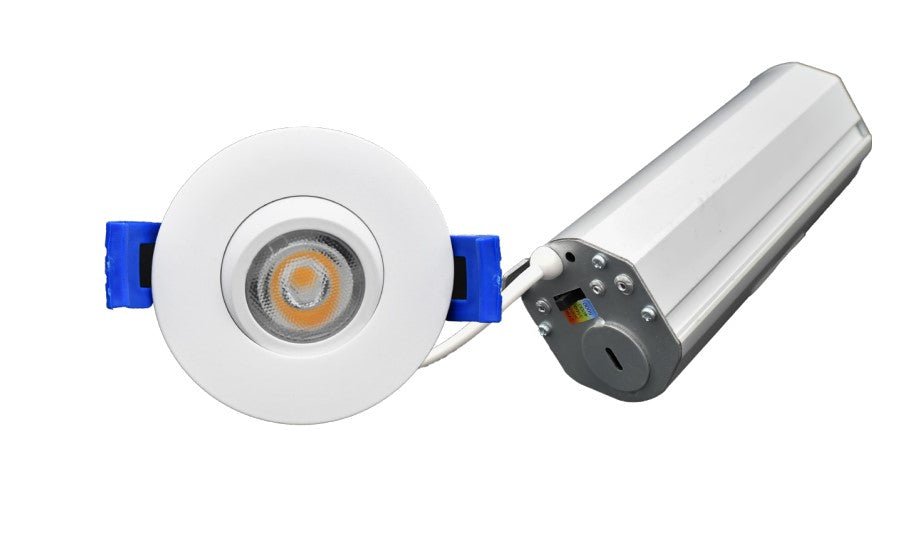

Round adjustable recessed Mini Task selectable 5CCT downlights with a 90+ CRI light source. Available in 1”(5W) and 2” (8) white. The fixture is fully dimmable. Quick to install. Versatile in adjusting to aiming needs. Power supply integrated into included wiring box. No separate power supply required.
- 120V
- Multiple wattages
- Round trim style
- Trim sizes - 1” and 2”
- Adjustable
- White finish
- 5CCT selectable switch (2700K / 3000K / 3500K / 4000K / 5000K)
- Dimmable ELV
- 38° beam angle
- 90+ CRI
- Wet location
- +/- 15° tilt range over 360°
Spec Sheets
Spec Sheet
Installation Instructions
CHDL Mounting Plate
RMP Instructions (not required)
Info
| Catalog No. | Wattage |
CRI | Color Temp. | Lumens |
|---|---|---|---|---|
| MTRA1-5CCT | 5W |
90+ | 5CCT (Selectable Switch) | 330-370 |
| MTRA2-5CCT | 8W |
90+ | 5CCT (Selectable Switch) | 540-625 |
Additional Info
| Listings | ETL listed (for US & Canada) |
| Energy Star | Yes |
| IC Rated | Yes |
| California | Title24/J8 |
| Operating Temp | -4°F to 104°F |
Accessories
| Catalog No. | Description |
|---|---|
| CHDL-UNV-NCP | Universal Mounting Plate |
| RMP-2-B | Regressed Multi-Plate, 2 Light, Black/White Trim |
| RMP-2-WH | Regressed Multi-Plate, 2 Light, White/White Trim |
| RMP-3-B | Regressed Multi-Plate, 3 Light, Black/White Trim |
| RMP-3-WH | Regressed Multi-Plate, 3 Light, White/White Trim |
| RMP-AD1-B | Regressed Multi-Plate Adapter 1 Black |
| RMP-AD1-WH | Regressed Multi-Plate Adapter 1 White |
| RMP-AD2-B | Regressed Multi-Plate Adapter 2 Black |
| RMP-AD2-W | Regressed Multi-Plate Adapter 2 White |
