NeoVISION120 120V SideFlex Neon Tape

120VAC operation for higher power and brightness. Flexible linear “neon” tape is designed for applications that require ultra-rich light and color saturation that is characteristic of neon. SideFlex enables lighting along straight or inward/outward curved surfaces. NeoVision120 tapes provide long, continuous runs up to 163 feet.

120VAC operation (no driver required)
3.4W per foot (colors) or 4.3W per foot (white)
Wet location – IP65
Multiple power feed options
Tape encased in UV stable silicone (UV protected)
Triac/ELV Dimmable
2700K, 3000K or 4000K white / Amber, Blue, Green or Red
120° viewing angle
Maximum run: 163′
Made to order in 12” increments

Spec Sheets

Spec Sheet

Installation Instructions

Info

Catalog No.	Description

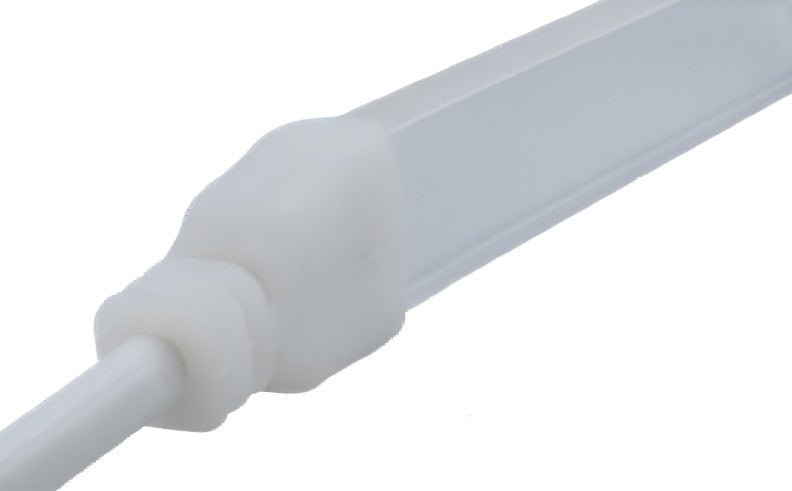

NV120S-HW-8-EF	Hardwire End Feed w/Filter & 8A Fuse

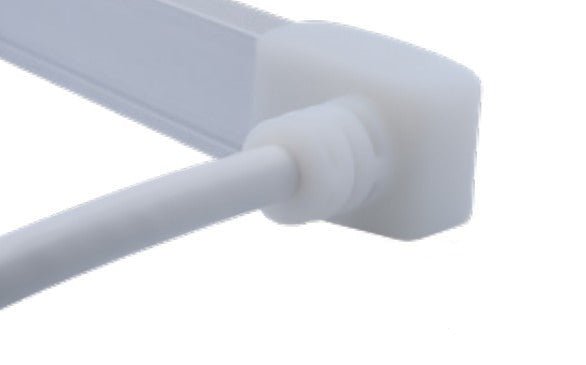

NV120S-HW-8-SFL	Hardwire Side Feed Left w/Filter & 8A Fuse

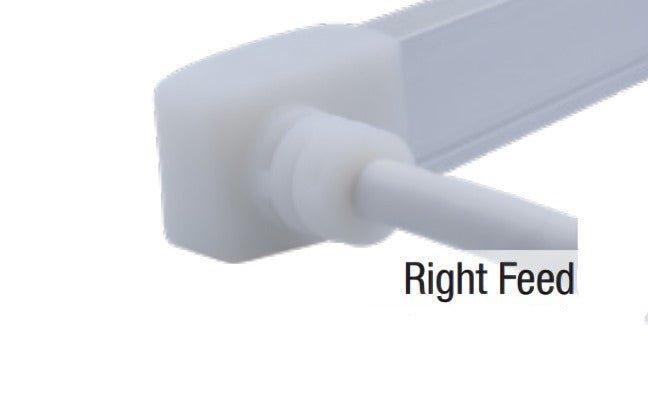

NV120S-HW-8-SFR	Hardwire Side Feed Right w/Filter & 8A Fuse
NV120S-PC-8-EF	Plug-in End Feed w/Filter & 8A Fuse
NV120S-PC-8-SFL	Plug-in Side Feed Left w/Filter & 8A Fuse
NV120S-PC-8-SFR	Plug-in Side Feed Right w/Filter & 8A Fuse
NV24S-TTC6	Tape to tape 6” flexible connector
NV120S-MC-FC	Front Clip, 20 Clips/40 Screws

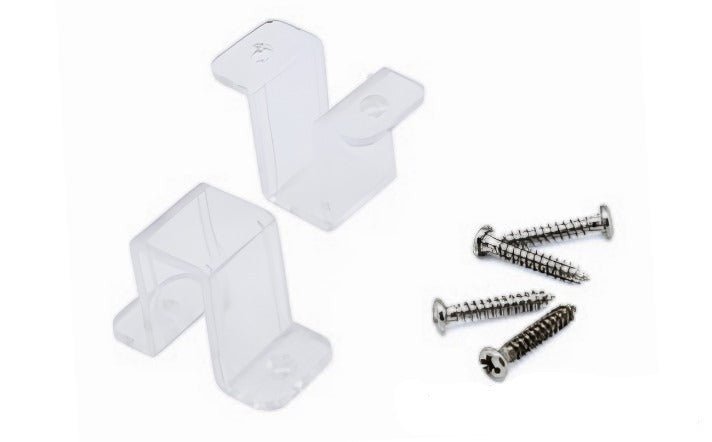

NV120S-MC-A	Back Mounting Clip, 20 Clips/20 Screws

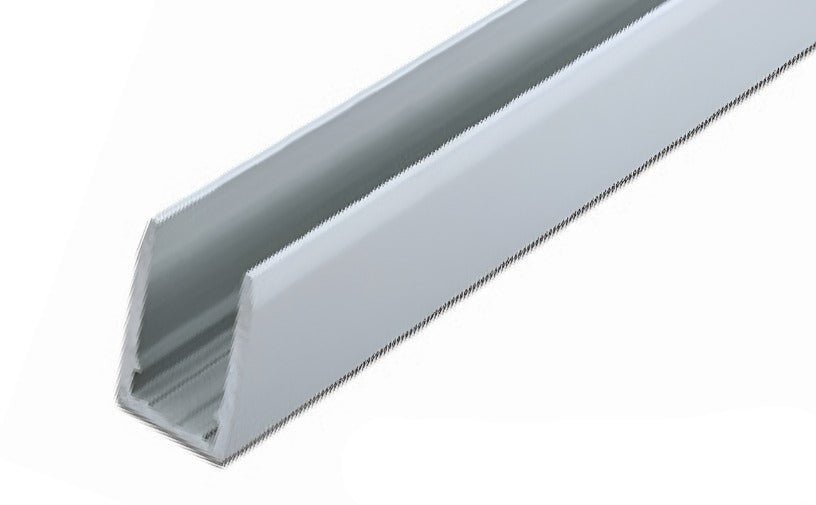

NV120S-CHL-A4	4 ft Channel with 4 Screws
NV120S-CHL-A8	8 ft Channel with 8 Screws
NV120S-FLEX-CHL-10	SideFlex 10 ft Channel with 22 Screws

Accessories

Catalog No.	Lumens per Foot	CRI	Color Temp.	Max. Run
NV120S-4W-27K-FT	232	90+	2700K	163′
NV120S-4W-30K-FT	255	90+	3000K	163′
NV120S-4W-40K-FT	257	90+	4000K	163′
NV120S-3W-AM-FT	59	90+	AMBER	163′
NV120S-3W-BL-FT	34	90+	BLUE	163′
NV120S-3W-GR-FT	194	90+	GREEN	163′
NV120S-3W-RD-FT	94	90+	RED	163′
