GM Lighting NV120T NeoVISION 120V TopFlex Neon Tape Accessories

Name: GM Lighting NV120T NeoVISION 120V TopFlex Neon Tape Accessories
Brand: GM Lighting
SKU: GML-NV120T-HW-8-EF
Price: 124.2 USD
Availability: InStock

$124.20

Sale Sold out

Shipping calculated at checkout.

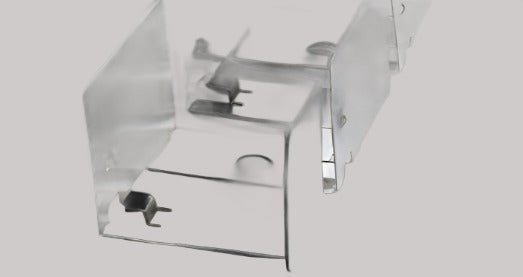

Style Hardwire End Feed w/Filter & 8A Fuse Hardwire Bottom Feed w/Filter & 8A Fuse Plug-in End Feed w/Filter & 8A Fuse Plug-in Bottom Feed w/Filter & 8A Fuse Front Clip 20 Clips/40 Screws Back Mounting Clip 20 Clips/20 Screws 4 ft Channel with 4 Screws 8 ft Channel with 8 Screws TopFlex 10 ft Channel with 22 Screws

Quantity

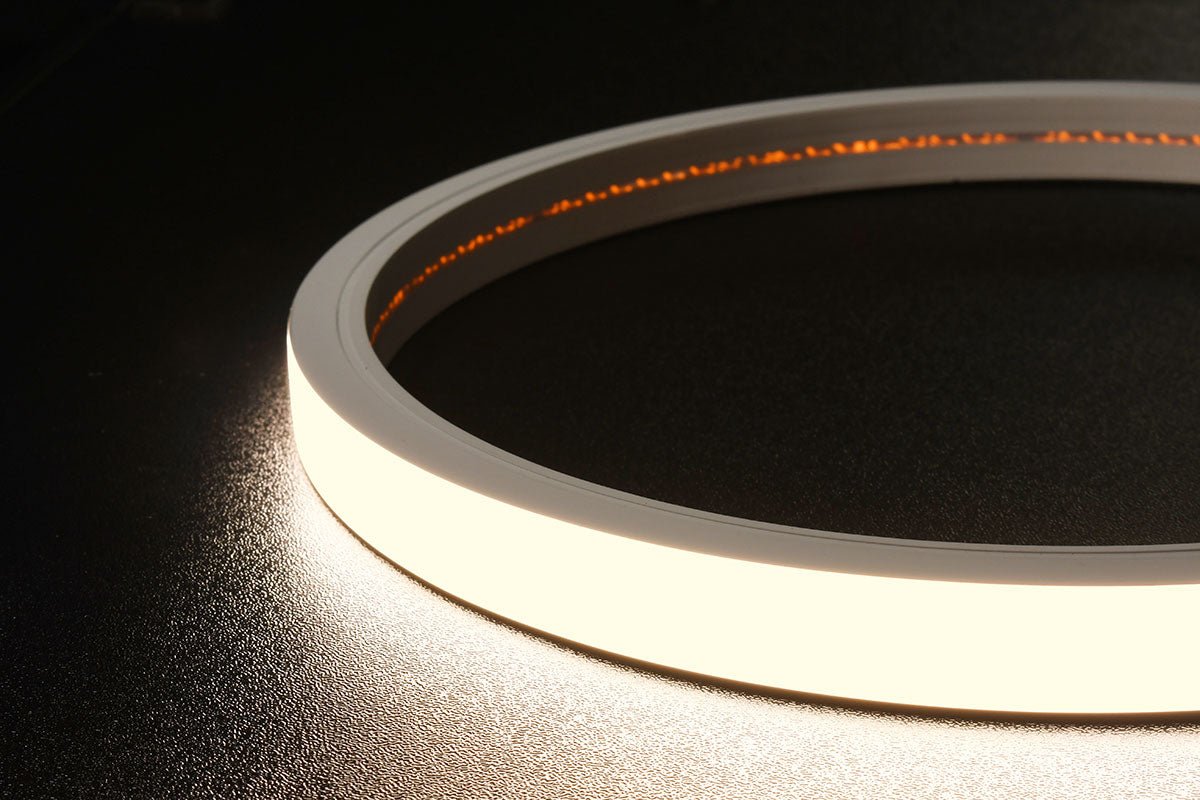

NeoVISION120 120V TopFlex Neon Tape

120VAC operation for higher power and brightness. Flexible linear “neon” tape is designed for applications that require ultra-rich light and color saturation that is characteristic of neon. TopFlex enables lighting along straight or inward/outward curved surfaces. NeoVision120 tapes provide long, continuous runs up to 163 feet.

120VAC operation (no driver required)
3.4W per foot (colors) or 4.3W per foot (white)
Wet location – IP65
Multiple power feed options
Tape encased in UV stable silicone (UV protected)
Triac/ELV Dimmable
2700K, 3000K or 4000K white / Amber, Blue, Green or Red
120° viewing angle
Maximum run: 163′
Made to order in 12” increments

Spec Sheets

Spec Sheet

Installation Instructions

Info

Catalog No.	Description

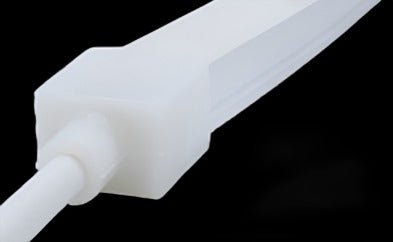

NV120T-HW-8-EF	Hardwire End Feed w/Filter & 8A Fuse
NV120T-HW-8-BF	Hardwire Bottom Feed w/Filter & 8A Fuse
NV120T-PC-8-EF	Plug-in End Feed w/Filter & 8A Fuse
NV120T-PC-8-BF	Plug-in Bottom Feed w/Filter & 8A Fuse

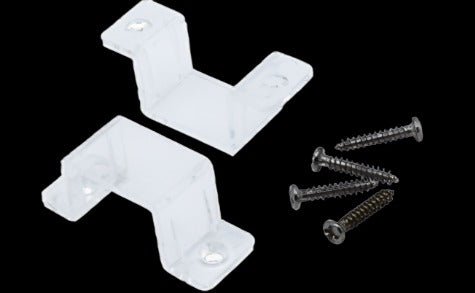

NV120T-MC-FC	Front Clip, 20 Clips/40 Screws

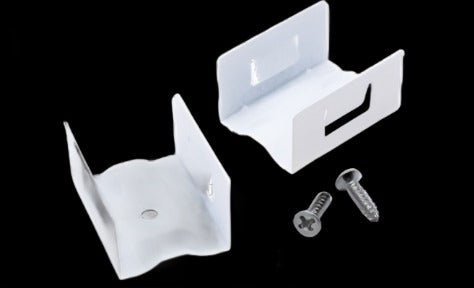

NV120T-MC-A	Back Mounting Clip, 20 Clips/20 Screws

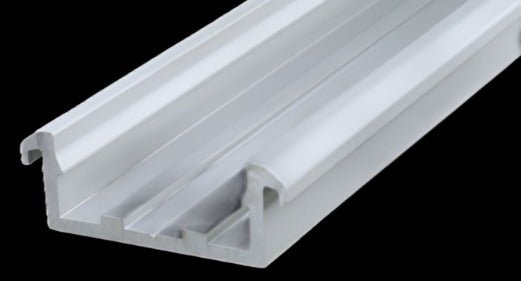

NV120T-CHL-A4	4 ft Channel with 4 Screws
NV120T-CHL-A8	8 ft Channel with 8 Screws
NV120T-FLEX-CHL-10	SideFlex 10 ft Channel with 22 Screws

Accessories

Catalog No.	Lumens per Foot	CRI	Color Temp.	Max. Run
NV120T-4W-27K-FT	232	90+	2700K	163′
NV120T-4W-30K-FT	255	90+	3000K	163′
NV120T-4W-40K-FT	257	90+	4000K	163′

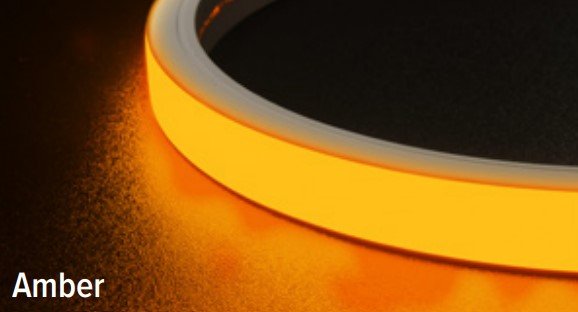

NV120T-3W-AM-FT	59	90+	AMBER	163′

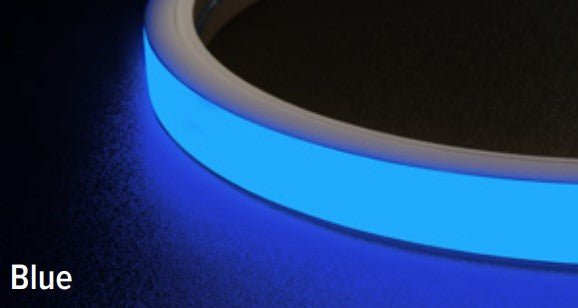

NV120T-3W-BL-FT	34	90+	BLUE	163′

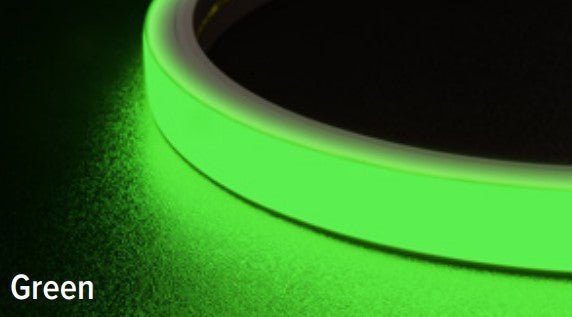

NV120T-3W-GR-FT	194	90+	GREEN	163′

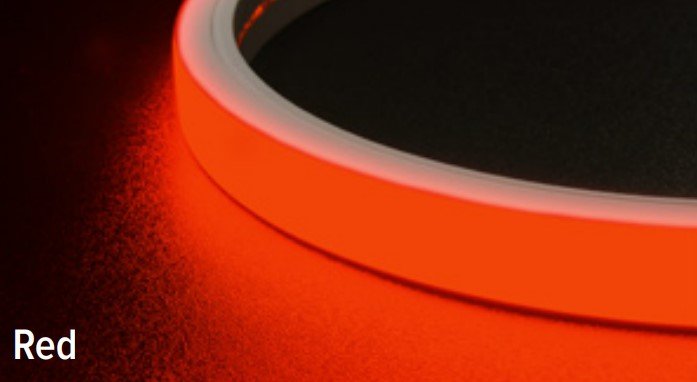

NV120T-3W-RD-FT	94	90+	RED	163′
